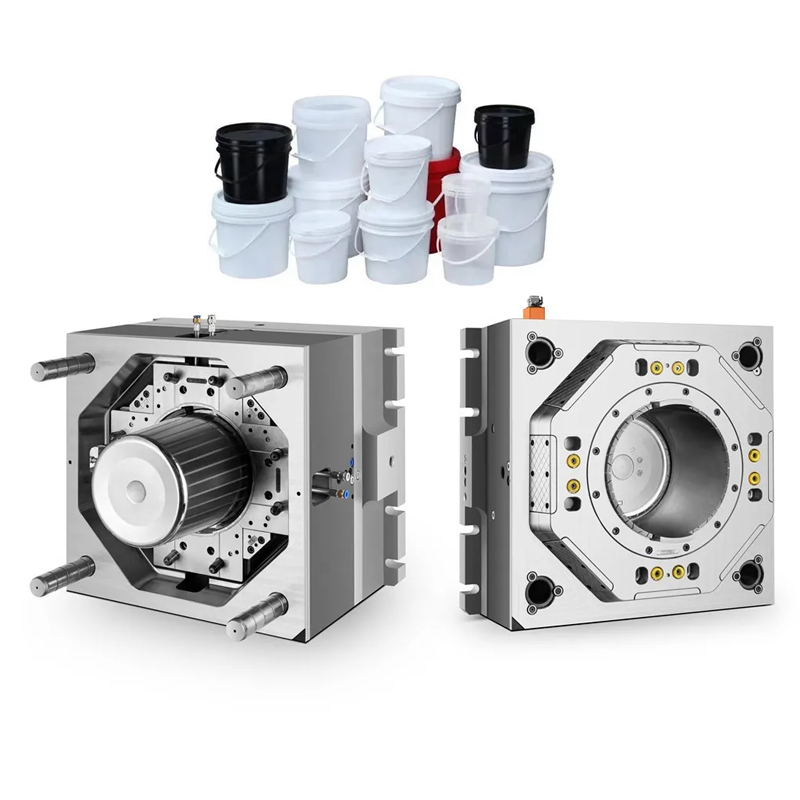

15 Liter Paint Bucket Injection Mould

15-Liter Paint Bucket Injection Mold

I. Mold Definition and Product Positioning

The 15-liter paint bucket injection mold is specialized high-volume production equipment designed for the manufacture of standardized, industrial-grade large plastic paint packaging containers with a nominal capacity of 15 liters. The buckets produced by this mold are primarily used for packaging products such as architectural coatings, industrial paints, chemical liquids, and adhesives. They serve as the core, standardized, high-strength transport packaging within the supply chains of industries like building materials, chemicals, and automotive manufacturing. The end product must possess excellent impact resistance, chemical corrosion resistance, stacking stability, and sealing performance. Consequently, the mold design must balance the requirements for high-quality molding of large, thick-walled parts with the economic demands of mass production.

II. Core Engineering Technologies in Mold Design

1. Large, Deep-Cavity Structural Design

   • The mold typically employs a single-cavity or few-cavity (1×1 or 1×2) layout to accommodate the deep-draw molding requirements of the large bucket body (usually height >350mm, diameter >280mm). Cavity depth and draft angles require precise calculation to ensure smooth demolding.




   • Features like the bucket body, handle, snap-fits, and stacking guide ribs are integrated in a single molding shot, achieved through complex collapsible cores, hydraulic cylinder core pulls, and large-angle lifters.







2. High-Pressure Hot Runner and Gating System

   • A valve-gated hot runner system is used, with the gate typically located at the center of the bucket base. This facilitates radial filling from the center outward, resulting in short flow paths and balanced pressure. Precise sequential control of the valve pins effectively prevents melt backflow and gate sink marks.




   • Runners feature an expansive, streamlined design to reduce flow resistance for high-viscosity materials (e.g., HDPE) and are optimized via mold flow analysis to ensure rapid, steady filling of the entire large cavity.







3. High-Efficiency Cooling and Temperature Control

   • To address the challenges of high wall thickness (typically 2.5-4.0mm) and significant heat retention, the mold incorporates a multi-layer network of conformal cooling channels. Cooling is particularly enhanced in areas like the bucket base, corners, and reinforcement ribs.




   • Multi-circuit independent mold temperature control is implemented, applying differentiated temperature management to different functional zones (body, base, neck) to balance cooling rates and minimize internal stress and warpage.







4. Composite Demolding and Early Return System

   • Demolding combines a hydraulically actuated large ejector plate with multiple balanced ejector pins to ensure smooth, damage-free ejection of the deep-draw bucket. A compressed air assist system can be integrated to create an air cushion during initial mold opening, reducing the initial demolding force.




   • All side core-pulling mechanisms are equipped with mechanical or hydraulic early return devices to ensure safe mold closing and prevent interference between moving components.







III. Key Molding Process Parameters

• Material Selection: Primarily High-Density Polyethylene (HDPE) or copolymer Polypropylene (PP) with a Melt Flow Rate typically between 4-10 g/10min, selected for high impact strength and environmental stress crack resistance.




• Process Window:

  • Barrel Temperature: 180-220°C for HDPE; 200-240°C for PP.




  • Mold Temperature: 40-60°C, requiring precise zonal control.




  • Injection Pressure: 80-120 MPa, employing multi-stage injection and packing control.




  • Cooling Time: Constitutes over 60% of the total cycle, typically requiring 40-70 seconds.







• Molding Cycle: Total cycle time for a single-cavity mold is approximately 70-110 seconds.




IV. Product Quality and Performance Standards

1. Dimensional Accuracy: Bucket height and diameter tolerance ≤ ±0.5%; high precision fit between neck threads and lid.




2. Mechanical Performance: Must pass stacking tests (≥3 layers fully loaded), drop tests (≥1.2m height, at -18°C/23°C), and pressure resistance tests (≥0.3 MPa).




3. Sealing Performance: No leakage when inverted or tilted on its side after the lid is securely fastened.




4. Chemical Resistance: No swelling, cracking, or loss of strength after contact with specified chemicals.




V. Mold Materials, Lifespan, and Maintenance

• Cavity/Core: Utilizes high-wear-resistance, high-toughness tool steels such as 1.2344 (H13) or DIN 1.2738 (pre-hardened), with hardness HRC 48-52. Cavity surfaces are often polished or textured.




• Moving Components: Sliders, lifters, etc., are made from high-hardness materials like FDAC, and surfaces may be nitrided.




• Mold Lifespan: With proper use and maintenance, can reach 300,000 to 500,000 cycles.




• Maintenance Focus: Regular cleaning and servicing of the hot runner, checking cooling channel seals, lubricating all moving parts, and monitoring for wear.




VI. Production Integration and Industry Applications

1. Injection Molding Machine Requirements: Typically requires clamping force ≥800 tons (calculated based on projected area), shot capacity ≥2000g, equipped with a large barrel and high-strength platens.




2. Automation Configuration: Requires integration with large robots for automated part removal, lid assembly, inline inspection, and palletizing.




3. Application Fields: Paint factories, chemical plants, building materials distribution centers, automotive manufacturing, and industrial maintenance markets.




Conclusion

The 15-liter paint bucket injection mold is a quintessential example of equipment for molding large, thick-walled industrial packaging containers. Its technological core lies in solving a series of engineering challenges: deep-cavity filling, efficient cooling, reliable demolding, and long-term operational life. The design and manufacturing quality of the mold directly determine the safety, durability, and logistical efficiency of the final packaging container. As industrial packaging trends towards green recycling and lightweighting, future developments for such molds will place greater emphasis on processing compatibility with recycled materials (rHDPE/rPP), shorter cycle times, and optimization for lower energy consumption per unit, continuing to provide reliable packaging solutions for the chemical and building materials industries.
