Comprehensive Analysis of Precision Manufacturing Technology for 32-Cavity Single-Use Fork Mold

1. Innovative Mold Structure System

1.1 High-Density Precision Cavity Layout

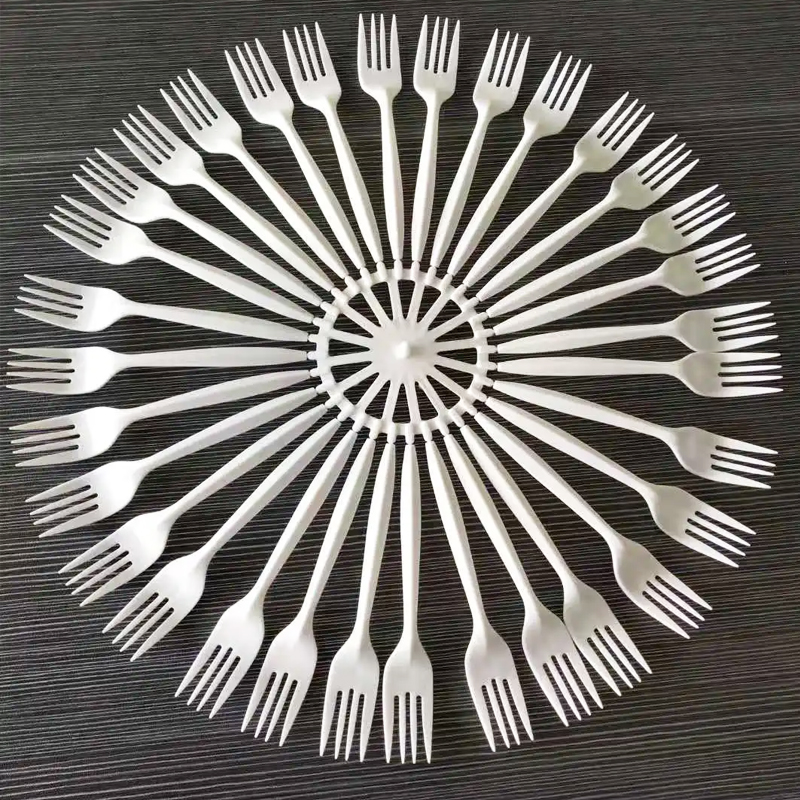

Utilizes a four-stage progressive cavity layout, dividing 32 cavities into 4 independent modules, with 8 cavities in each module arranged in a circular radial pattern, with a center distance of 18mm. Thermal buffer zones are set between modules, with temperature differences controlled within ±0.8°C. The cavities employ a gradient runner design, with the main runner diameter progressively decreasing from Φ10mm to Φ4mm, and runner length variation ≤2%, ensuring simultaneous arrival of the melt front at the end of each cavity. The tooth forming area adopts a micro-insert assembly structure, with each tooth composed of 3 independent inserts, with insert clearances of 0.003-0.005mm.

1.2 Multi-Layer Composite Cooling System

The cooling system employs five-level stratified cooling technology:

• Primary cooling: Tooth tip area, Φ2mm copper rods embedded, 1.5-2mm from the surface




• Secondary cooling: Tooth root transition area, Φ3mm annular water channels, dual inlet/outlet




• Tertiary cooling: Fork handle main body, Φ6mm conformal water channels, spiral arrangement




• Quaternary cooling: Connection area, Φ4mm cross-grid water channels




• Quinary cooling: Gate area, independent rapid cooling unit




Each cooling circuit is independently temperature-controlled, with temperature difference ≤1.2°C, cooling time 2.2-2.8 seconds, 30-40% shorter than traditional designs.

2. Hot Runner System Innovations

2.1 Sequential Control Multi-Point Hot Runner

Adopts a 32-point independent sequential control hot runner, with each cavity equipped with a needle valve gate, gate diameter Φ0.6-0.9mm. Needle valve actuation uses servo motor drive, stroke accuracy ±0.005mm, opening time difference ≤0.003 seconds. The hot runner system is divided into 8 temperature control zones, 4 cavities per zone, using PID adaptive control algorithm, temperature control accuracy ±0.2°C. Runner surfaces are treated with diamond-like carbon coating, surface roughness Ra 0.05-0.08μm, friction coefficient ≤0.08.

2.2 Low-Pressure Injection Optimization Design

For the thin-wall fork structure, develops a low-pressure injection runner system:

• Main runner taper: 2.5° (traditional: 1.5°)




• Branch runner cross-section: Modified parabolic shape, aspect ratio 1:1.5




• Gate transition: Uses R3-R5 arc transitions




• Pressure loss: Reduced by 40-45% compared to traditional designs




Injection pressure can be reduced to 60-80MPa, effectively reducing internal stress.

3. Precision Demolding System

3.1 Multi-Stage Gas-Assisted Ejection Technology

Adopts a three-stage gas-hydraulic composite ejection system:

1. First stage: 0.2-0.3MPa low-pressure gas pre-separation, creating 0.05-0.1mm gap between product and cavity




2. Second stage: Hydraulic ejector main ejection, ejection speed 8-12mm/s, ejection stroke 15-20mm




3. Third stage: 0.1-0.15MPa airflow-assisted complete demolding




Ejector pin layout uses asymmetric distribution, with additional auxiliary ejection blocks in stress concentration areas, ejection balance controlled at ≥95%.

3.2 Anti-Stick Surface Treatment

Cavity surfaces employ composite nano-treatment process:

1. Substrate pre-treatment: Mirror polishing after EDM to Ra 0.025-0.04μm




2. Micro-texture treatment: Laser engraving to form 5-8μm regular pyramidal textures




3. Nano-coating: Gradient AlCrN coating, surface hardness 3200-3500HV




4. Surface passivation: Electrochemical passivation to improve corrosion resistance




Demolding force reduced by 50-60%, product surface free of ejection marks or scratches.

4. Material Compatibility Optimization

4.1 Special Design for Bio-Based Materials

For PLA, PBS, and other material characteristics:

• Runner surface temperature: 20-30°C lower than for PP materials




• Vent depth: 0.02-0.025mm (30% deeper than traditional)




• Cooling rate: Gradient cooling control




• Gate size: Enlarged 10-15% to reduce shear




4.2 High-Filler Material Adaptation

Special configuration for calcium carbonate-filled materials (filler content 30-40%):

• Runner hardness: 62-64 HRC




• Wear-resistant coating: Multi-layer composite coating, total thickness 8-12μm




• Venting system: Additional auxiliary venting inserts




• Gate angle: 40°-50° to reduce wear




5. Ultra-Precision Manufacturing Technology

5.1 Micro-Structure Machining

Tooth forming area uses micro-EDM and milling composite machining:

• Rough machining: Φ0.3mm electrode EDM forming, unilateral allowance 0.05mm




• Semi-finish machining: Φ0.2mm micro-diameter milling cutter, speed 40,000-50,000 rpm




• Finish machining: Φ0.1mm precision milling cutter, feed per tooth 0.005mm




• Polishing: Ultrasonic-assisted chemical mechanical polishing




Machining accuracy: Tooth profile contour ≤0.008mm, surface roughness Ra 0.1-0.15μm.

5.2 Mold Inspection Technology

Uses multi-sensor composite inspection system:

• White light interferometer: Surface topography inspection, vertical resolution 1nm




• Laser tracker: Cavity position accuracy inspection, accuracy 0.003mm




• Industrial CT: Internal cooling channel inspection, resolution 5μm




• CMM: Key dimension inspection, accuracy 0.002mm




6. High-Efficiency Production Process

6.1 Ultra-Short Cycle Molding Parameters

• Injection time: 0.6-0.9 seconds (three-stage control)




• Holding time: 1.0-1.3 seconds (pressure curve optimization)




• Cooling time: 2.2-2.8 seconds (high-efficiency cooling)




• Mold opening/closing time: 0.9-1.2 seconds (high-speed cylinder)




• Ejection time: 0.4-0.6 seconds (gas-hydraulic composite)




• Total cycle: 4.2-5.8 seconds




6.2 Quick Mold Change System

Mold equipped with fully automatic quick mold change system:

• Hydraulic clamping: Clamping force 100-150 kN




• Automatic connection: Quick-connect for water, electricity, air, oil




• Positioning system: Tapered surface + pin-hole composite positioning




• Mold change time: ≤5 minutes




• Repeat positioning accuracy: ±0.01mm




7. Mold Technical Specifications

7.1 Basic Specifications

• Number of cavities: 32 cavities (4 modules × 8 cavities)




• Mold dimensions: 500×500×400mm




• Injection machine requirement: 220-300 tons




• Clamping force: 150-220 tons




• Shot weight: 100-150g




• Mold weight: 2.5-3.2 tons




• Heating power: 12-18kW




• Cooling water flow rate: 40-60 L/min




7.2 Performance Indicators

• Daily output: 450,000-650,000 pieces (24 hours)




• Material utilization rate: ≥97.5%




• Product qualification rate: ≥99.5%




• Energy consumption index: 0.6-0.9 kWh/kg




• Mold life: 3-4 million cycles




• Reject rate: ≤0.3%




8. Quality Control System

8.1 Online Inspection System

• Laser micrometer: Real-time tooth thickness monitoring, accuracy ±0.002mm




• Infrared thermal imager: Temperature distribution monitoring, accuracy ±0.3°C




• Machine vision: Surface defect detection, resolution 0.015mm




• Pressure sensor: In-mold pressure monitoring, accuracy ±0.05 MPa




• Weighing system: Online weight sorting, accuracy ±0.002g




8.2 Product Testing Standards

• Dimensional accuracy: Total length tolerance ±0.15mm, tooth pitch tolerance ±0.02mm




• Mechanical properties: Flexural strength ≥30N, tooth stiffness deformation ≤0.8mm




• Functional testing: Puncture force 6-10N, usage comfort evaluation




• Safety testing: Sharpness test, tooth tip radius ≥0.15mm




• Environmental testing: -20°C to 100°C temperature cycling without cracking




9. Technological Innovation Applications

9.1 Functional Design Integration

• Anti-slip texture: Micro-anti-slip patterns on handle




• Ergonomic design: Handle shape conforming to hand grip curve




• Stacking design: Optimized stacking angle




• Identification marking: Production batch marking inside mold




9.2 Environmental Technology Integration

• Thin-wall design: Average wall thickness reduced by 20%




• Runner optimization: Waste rate ≤2.5%




• Water-saving design: Cooling water recycling rate ≥98%




• Energy-saving design: Heating system thermal efficiency ≥92%




10. Economic Benefit Analysis

10.1 Production Costs

• Mold investment: 200,000-300,000 RMB




• Material cost per piece: 0.006-0.012 RMB




• Energy cost per piece: 0.0015-0.0025 RMB




• Labor cost per piece: 0.0008-0.0015 RMB




• Comprehensive cost per piece: 0.01-0.018 RMB




10.2 Return on Investment

• Daily output value of 32-cavity mold: 6,000-11,000 RMB




• Monthly output: 13.5-19.5 million pieces




• Investment payback period: 3-5 months




• Annual return on investment: 40-60%




11. Maintenance System

11.1 Daily Maintenance Procedures

• Every 2 hours: Clean parting surfaces, check vents




• Every 4 hours: Inspect hot runner temperature, record data




• Per shift: Lubricate all moving parts




• Daily: Check cooling system, clean filters




11.2 Preventive Maintenance Plan

• Every 30,000 cycles: Inspect cavity dimensions, measure wear




• Every 60,000 cycles: Inspect surface roughness, polish if necessary




• Every 120,000 cycles: Replace seals, inspect hot runner




• Every 300,000 cycles: Complete disassembly inspection, repair worn parts




12. Technology Development Trends

12.1 High-Efficiency Direction

• Target molding cycle: 3.5-4.5 seconds




• Cavity number development: 48-64 cavities




• Continuous operation: 90 days uninterrupted production




12.2 Precision Direction

• Machining accuracy: Developing towards ±0.002mm




• Surface quality: Below Ra 0.05μm




• Dimensional stability: Long-term production fluctuation ≤0.5%




12.3 Green Direction

• 100% compatibility with bio-based materials




• Zero wastewater discharge cooling system




• Intelligent energy management, energy consumption further reduced by 20-30%




Summary: The 32-cavity single-use fork mold achieves efficient, high-precision, and low-cost mass production through technological innovations such as high-density cavity layout, multi-layer composite cooling, and sequential control hot runner systems. The mold has reached advanced industry levels in precision manufacturing, material compatibility, and quality control, providing reliable technical equipment support for single-use tableware manufacturing. The future will continue to develop towards higher efficiency, better quality, and greater environmental sustainability, promoting industry technological advancement.
