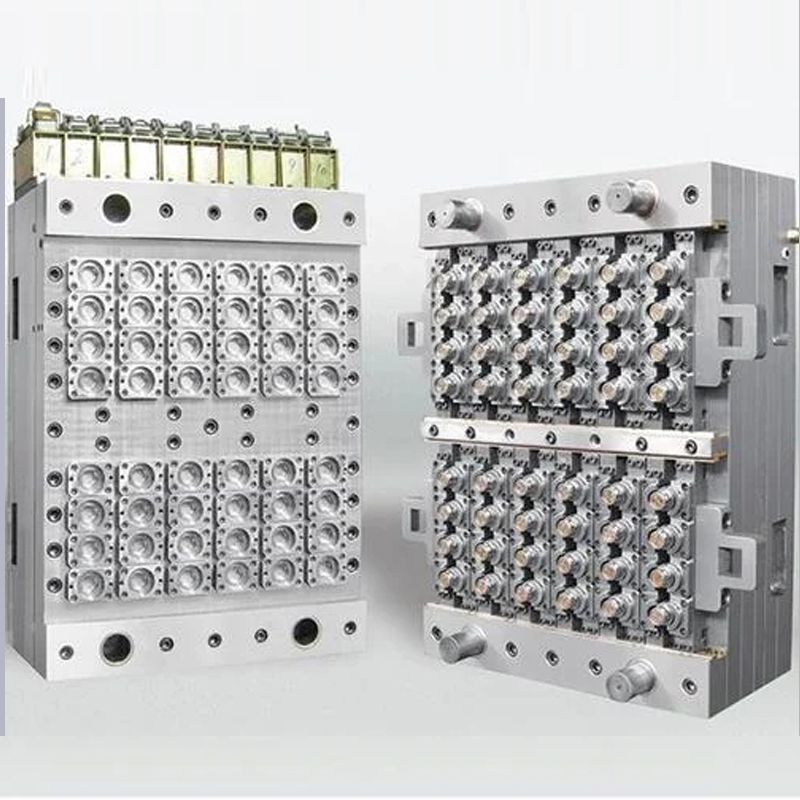

48 Cavity Lid Injection Mold

48-Cavity Lid Injection Mold: The Extreme Challenge of Large-Scale Homogeneous Precision Manufacturing

In the modern packaging industry for fast-moving consumer goods, lids are among the highest-volume, most standardized plastic products. The 48-cavity lid injection mold represents the engineering pinnacle of pursuing maximum output efficiency per cycle. It is not merely a 48-fold replication of a single-cavity mold; it is a complex system achieving the ultimate balance between quality, speed, and cost under extreme constraints—namely, within limited platen area, clamping force, and injection cycle time. Its core paradox is: how to ensure that the lids produced from each of the 48 cavities achieve near absolute uniformity in dimensions, weight, mechanical properties (e.g., opening torque), and appearance.

I. System-Level Design: From "Point" Replication to "Field" Balancing

The design of a 48-cavity mold begins with a system-level plan for the entire injection molding "energy field" and "material flow."

1. Hot Runner System: The Precision Distribution Network for Pressure and Heat

   • Multi-Stage Manifolding and Symmetrical Layout: The melt's journey from the machine nozzle to 48 cavities must undergo 3 or even 4 stages of flow splitting. The geometry and runner dimensions of each stage's manifold are designed using Non-Newtonian fluid dynamics simulation to ensure minimal pressure drop at each split and equal flow to each branch. The layout must adhere to strict principles of geometric and topological symmetry, making the total flow length and number of turns from the main entry to any cavity as equal as possible—the physical foundation for achieving simultaneous fill.




   • Zone-Independent Temperature Control: A large hot runner system has inherent thermal gradients. Therefore, it is divided into multiple (e.g., 6-8) independently controlled temperature zones, each equipped with fast-response heaters and thermocouples. Specialized temperature compensation is applied to the outermost and innermost runners due to their different heat loss conditions, maintaining consistent melt front viscosity throughout.







2. Cavity and Cooling System: The Art of Eliminating Micro-Variances and Thermal Balance

   • Absolute Cavity Uniformity: The 48 cavities are not machined independently. Instead, they are produced using high-precision jig grinding or mirror-finish EDM, often with the same program, the same electrode(s), and in the same setup (or batched setups) to ensure micron-level replication of the 3D geometry. The polish and texture of each cavity surface must be identical, as any subtle difference affects release force and, consequently, post-ejection part distortion.




   • "Equal-Flow-Resistance" Cooling Circuit Design: Uneven cooling is the primary enemy of multi-cavity molds. The designer's goal is not simple series or parallel circuits, but a design ensuring "equal flow resistance and equal heat exchange efficiency" for each cavity. This means the length, number of bends, and cross-section of the cooling channels around each cavity are calculated so coolant flows past each with the same velocity and temperature rise, removing equal heat. In core areas, 3D-printed conformal cooling channels are often used to achieve极致 cooling equidistant from the cavity surface.







3. Ejection System: The Extreme Demand for Synchronization and Rigidity

   • Unified Ejector Plate and High-Rigidity Ejector Pins: To ensure all 48 lids detach from the cores within the same millisecond, a unified ejector plate driving hundreds of ejector pins in synchronized motion is standard. The diameter, length, and fit clearance of each pin with the plate and core plate are tightly controlled to prevent asynchrony caused by individual pin bending or binding. The ejector plate itself requires极高的 flatness and rigidity, often with its own guide pins/布什ings to prevent tilting under massive ejection force.




   • Early Return and Safety Mechanisms: Due to the vast number of pins, the mold must incorporate reliable mechanical early return mechanisms or hydraulic pre-return systems to ensure all pins are precisely reset before mold closing, preventing catastrophic collision with complex cores or sliders. Safety sensors are遍布 throughout the system, monitoring the completion status of every ejection and return stroke.







II. Manufacturing and Materials: Forged for Tens of Millions of Cycles

The intrinsic reliability of a 48-cavity mold is the prerequisite for its economy.

1. Steel Selection and Holistic Treatment: Mold plates use pre-hardened steels with high rigidity and low distortion (e.g., P20, 718). Critical components like cavities and cores commonly use high-wear, high-thermal-conductivity powder metallurgy steels (e.g., ASP-23, CPM-10V) or high-performance hot-work steels. All moving components (sliders, lifters) undergo deep ion nitriding, achieving surface hardness above HV 1000 to withstand tens of millions of cycles. Hot runner manifolds are made from stainless steel with extremely low thermal deformation.




2. "Systems Integration" Philosophy in Precision Assembly: Mold assembly resembles the final assembly of a precision machine tool. All cavity inserts are fitted to the plates with interference fits or zero-clearance positioning, often pressed in using liquid nitrogen shrink-fitting to eliminate minute displacement during operation. During assembly, the spatial alignment of manifolds, nozzles, cavities, cooling circuits, and ejection systems is verified with laser trackers, ensuring the entire system deforms consistently under heat and pressure, avoiding misalignment from internal stresses.




III. Process Control: Transferring "Uniformity" from Mold to Product

The mold's excellence must be realized through极致 process control.

1. Locking Down the Process Window: The process window for a 48-cavity mold is exceptionally narrow. Mold Flow Analysis (MFA) is used upfront to define the optimal profile for injection speed, V/P switchover, and packing pressure. Production utilizes multi-stage injection and multi-stage packing to compensate for different phases of fill. Screw plasticizing consistency becomes critical, as any minor fluctuation in backpressure or temperature is amplified 48-fold.




2. In-Mold Monitoring and Closed-Loop Control: Each cycle is monitored via cavity pressure sensors (placed in several representative cavities). Any filling variance between cavities manifests in the pressure trace. Coupled with an automated weighing system performing 100% weight checks on sampled lids, data is fed back to the packing control unit for closed-loop fine-tuning, keeping质量差异 within milligram levels.




3. Agility in Color Changeover and Production: For frequent color changes, the mold's hot runner system is designed for efficient automatic purge sequences, with runner walls having special polishing to minimize pigment retention. The cooling system's rapid stabilization capability allows the mold to reach thermal equilibrium in the shortest time, reducing setup time and scrap.




Conclusion: An Industrial Monument and a Symbol of Microscopic Control

The 48-cavity lid injection mold is an icon of large-scale standardized manufacturing. It elevates the production of a seemingly simple lid to a realm of micron-level spatial control, millisecond-level temporal control, milligram-level mass control, and joule-level energy control. It represents an ultimate pursuit in plastics processing: maintaining absolute precision for every single unit within the torrent of mass production.

This colossal piece of high-precision machinery pulses incessantly, day and night. Each of its cycles reiterates an industrial truth. It is not merely a tool for making lids; it is a silent, steadfast monument within the modern manufacturing system—a monument to consistency, reliability, and economies of scale.
