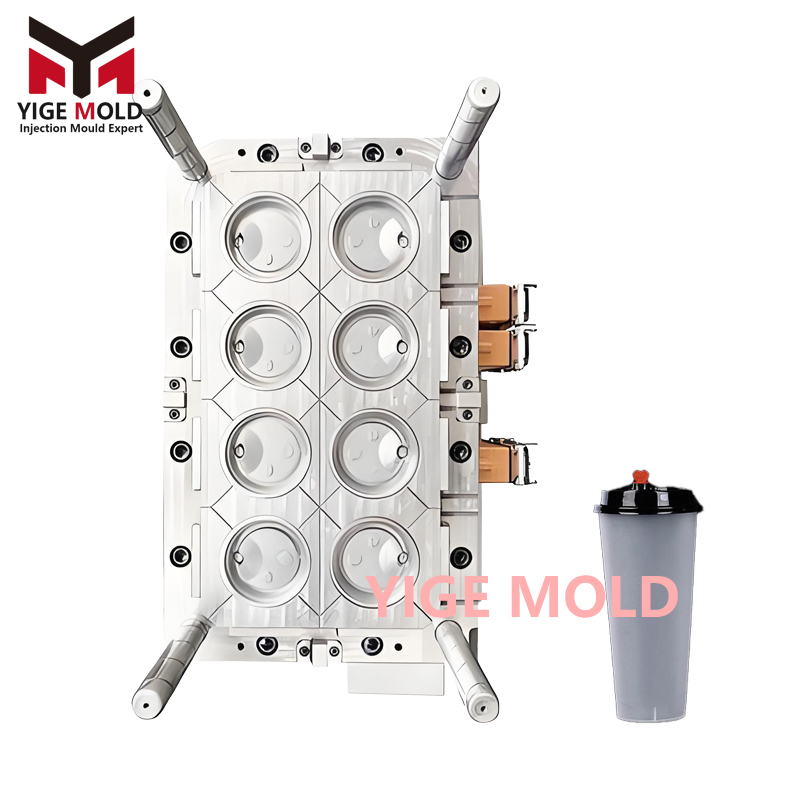

Bubble Tea Cup Mold

In-Depth Analysis of Bubble Tea Cup Mold Design and Manufacturing Processes

The value of bubble tea cup molds lies not only in shaping container forms but also in translating engineering mechanics, material properties, and consumer aesthetics into scalable technical solutions. From millimeter-scale sealing structures to the microscopic presentation of visual textures, mold manufacturing represents a concentrated expression of modern industrial art.

I. Engineering Dimensions of Mold Design

1. Structural System Design

Mold design begins with a reverse-engineering deconstruction of the final product's function. Taking injection molds as an example, the design must simultaneously address three major systems:

• Molding System: Includes the cavity and core that define the cup's form, as well as the rotating ejection or sliding mechanisms that create threading. The pitch and tooth profile angle of the threads require precise calculation to ensure proper fit and sealing force with the lid.




• Gating System: The design of channels through which molten plastic enters the cavity. Hot runner technology can reduce waste and improve efficiency. The location of the gate must avoid leaving visible marks on the cup's appearance areas and ensure uniform plastic filling to prevent warping.




• Cooling System: A network of cooling channels intricately arranged within the mold. Its layout directly determines the production cycle and product consistency. Uneven cooling can lead to variations in wall thickness, internal stress concentration, and even subsequent deformation or leakage.




2. Functional Detail Implementation

• Sealing Structure: The horizontal sealing surface of the cup rim and any vertical sealing surfaces (e.g., anti-leak grooves) must achieve a mirror-level finish (typically surface roughness Ra < 0.2μm). This is accomplished through high-precision polishing and coatings (such as hard chrome or nickel-PTFE composite plating).




• Ergonomic Grip: The contoured waist and anti-slip texture of the cup body are not merely aesthetic but applications of ergonomics. Anti-slip patterns are typically created through chemical etching (texturing) of the mold. The etch depth and pattern direction must balance tactile feel with ease of demolding.




• Stacking and Nesting: The mold must precisely control the outer diameter of the rim, inner diameter of the base, and taper angle to ensure stable, easy separation when cups are stacked empty. This requires mating surface accuracy on the order of 0.01mm.




3. Translation of Brand Visuals

The microscopic realization of logos and patterns is a convergence of mold surface treatment technologies. High-gloss surfaces require diamond-level polishing, while matte, leather, woodgrain, and other finishes are achieved through sandblasting or chemical etching with varying grit sizes. Complex patterns necessitate direct formation on the mold steel via precision Electrical Discharge Machining (EDM) or laser engraving.

II. Comprehensive Mold Manufacturing Process

Phase 1: Design and Engineering Preparation

• 3D Modeling & Reverse Engineering: Based on product design drawings or samples, high-precision 3D models are built using CAD software (e.g., UG, Pro/E), followed by draft angle analysis, wall thickness analysis, and parting line design.




• CAE Simulation Analysis: Software like Moldflow is used for mold flow analysis to simulate the filling, packing, and cooling of plastic within the cavity. This predicts weld line locations, air trap risks, and shrinkage/warpage tendencies, allowing for optimization of gate and cooling system design to preempt potential defects before tooling begins.




Phase 2: Core Component Machining

• Material Selection: Critical components like cavities and cores are typically made from pre-hardened mold steel (e.g., P20, 718) or high-grade steels (e.g., H13, S136) that can be hardened to HRC 50-60 after heat treatment, ensuring wear resistance, corrosion resistance, and long-term stability.




• Precision Machining:

  • Rough Machining: CNC milling removes the bulk of material to form the basic contours.




  • Heat Treatment: Vacuum hardening and tempering are applied to components requiring high hardness to achieve the desired metallurgical structure and hardness.




  • Finish Machining:

    1. High-Speed Precision CNC Machining: High-speed machining centers are used with minimal stepovers for finish milling, achieving shapes and surfaces close to final dimensions.




    2. Electrical Discharge Machining (EDM): Used for deep grooves, narrow slots, sharp corners, and complex textures inaccessible to CNC end mills. Copper or graphite electrodes use spark erosion to accurately replicate shapes.




    3. Wire-Cut EDM: Primarily used for machining precise internal/external profiles, insert holes, and special-shaped holes, with accuracies up to ±0.002mm.










• Surface Treatment:

  • Areas requiring a mirror finish undergo multiple stages of polishing, from coarse to optical-grade finishing.




  • Areas requiring textured finishes undergo a series of texturing steps: cleaning, application of photoresist, exposure (using a textured film), development, chemical etching, and post-processing.







Phase 3: Mold Assembly and Debugging

• Precision Fitting: All machined components—cavity, core, sliders, lifters, etc.—are assembled. The fit of parting surfaces is checked using spotting ink to ensure no flash risk. All moving components must operate smoothly without binding.




• Trial Production & Validation: Initial production runs are conducted on designated injection molding machines. Process parameters (temperature, pressure, speed, time) are systematically adjusted to produce first-article samples. Samples undergo comprehensive inspection for dimensions (using CMM), appearance, and function (e.g., seal testing, stack testing). Based on results, local polishing, adjustment, or modification of the mold may be required until products fully conform to design specifications.




III. Specialized Processes and Material-Specific Molds

• PET/PLA Thermoforming Molds: Typically made from aluminum, machined as a single unit via CNC. The cavity is covered with finely distributed micro-vacuum holes, whose diameter and layout are optimized using CFD to ensure uniform sheet material draw. The mold surface must be highly polished to ensure cup clarity.




• Food-Grade Silicone Mold Production: The master pattern (positive) is usually CNC-machined from resin, wood, or metal. The pattern is placed in a mold frame, liquid silicone is poured in, degassed in a vacuum chamber to remove bubbles, and then heat-cured. After demolding, the silicone cavity perfectly replicates all details of the master pattern, down to the finest textures.




Conclusion

The design and manufacture of bubble tea cup molds is a precise act of creation, traversing from the microscopic to the macroscopic, the virtual to the physical. It seamlessly links simulations of fluid dynamics, micrometer-level metal cutting, and nanoscale surface treatment to the end-user's tactile sensation, visual perception, and drinking experience. Each successful demolding represents not just the forming of plastic or food, but the crystallization of complex engineering knowledge, exquisite manufacturing skill, and deep user insight. In the context of consumption upgrades, the relentless pursuit of excellence in bubble tea cup mold technology forms the most solid foundation for enhancing product added value and brand quality.
