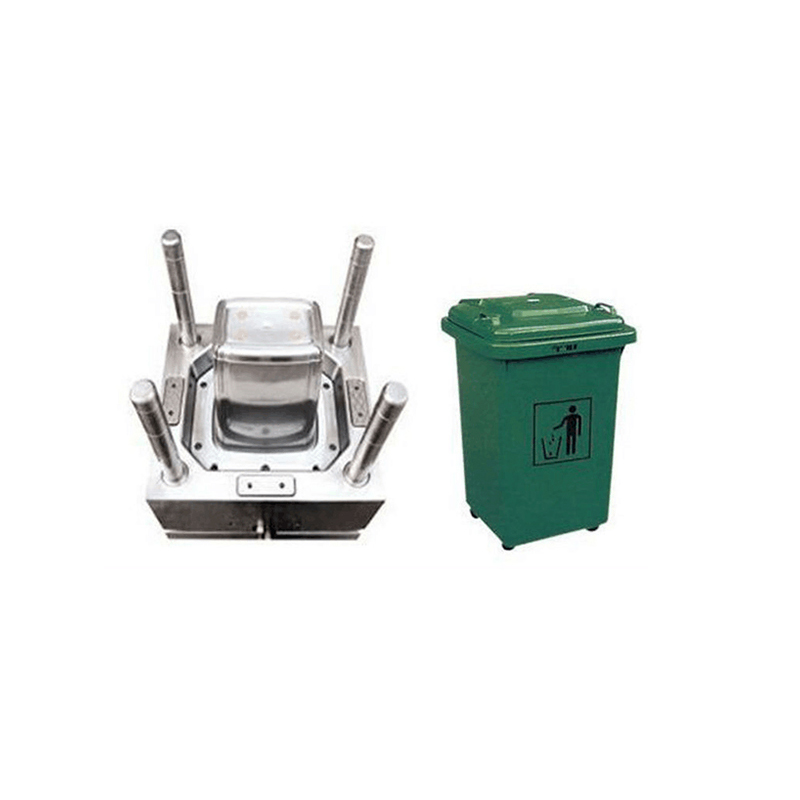

Technical Overview: Commercial Trash Can Mold

I. Application Scope and Operating Conditions

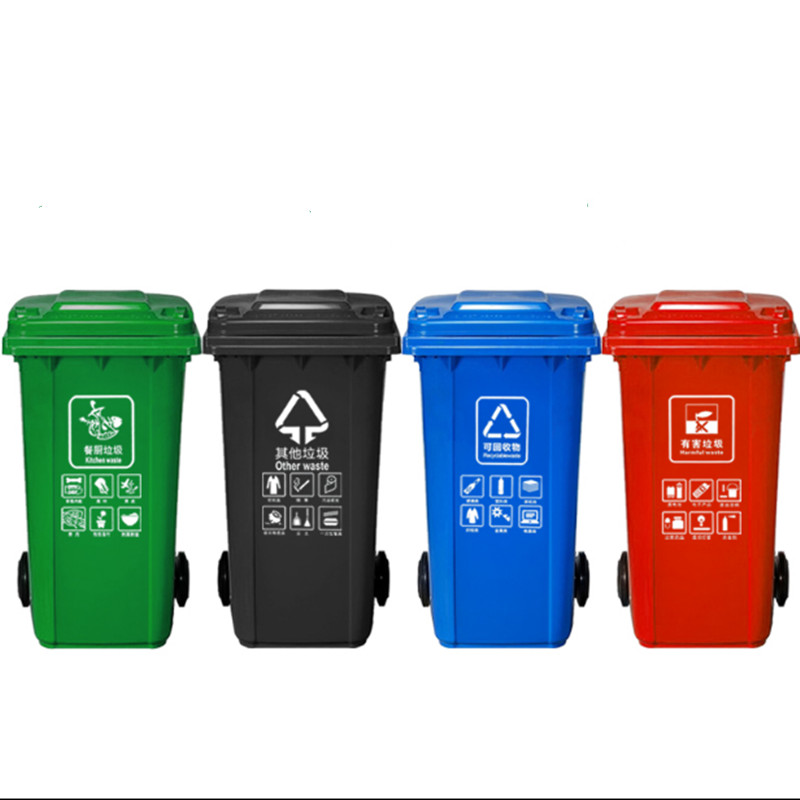

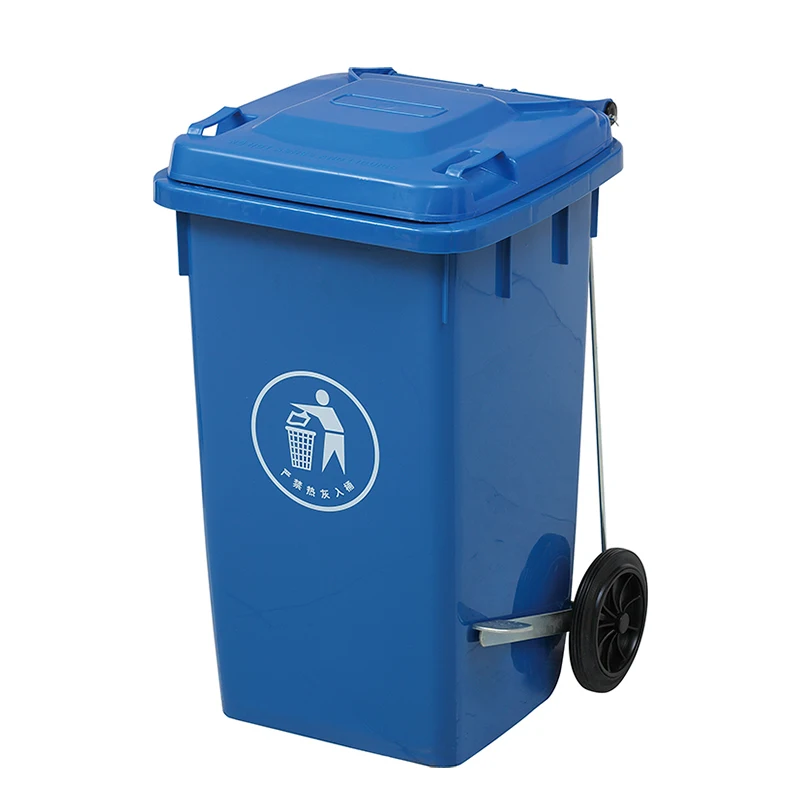

Commercial trash can molds are engineered for high-volume production of medium-to-large plastic bins (typically 60–300 L) deployed in public spaces such as offices, campuses, and streets. The molded parts must withstand harsh service conditions including frequent impacts, stacked transport, UV exposure, and chemical cleaning agents. Compared to household bin molds, commercial versions prioritize smooth wall-thickness transitions, fatigue-resistant rib layouts, reinforced rim rolls for drop resistance, and precise reproduction of base stacking features. Target mold life is generally ≥800k cycles, with compatibility for HDPE/PP recycled blends.

II. Key Structural Design Aspects

1. Cavity and Core-Pulling Strategy

Commercial cans are deep, open-top thin-shell parts with aspect ratios often exceeding 2.5:1. A common approach uses monolithic cavities with local inserts: the main body retains continuous surfaces for rigidity, while base stacking steps and handle holes are implemented via replaceable inserts for easier maintenance. Side handles, drain holes, or caster mounts create undercuts addressed by expanding sliders or hydraulic core pulls; self-lubricating guide strips on sliding surfaces reduce binding risks under high temperatures.

2. Gating and Venting Topology

To cover large projected areas, the sprue is coupled with multi-point hot nozzles transitioning to cold runners, injecting melt either centrally from the base or circumferentially around the rim flange to distribute residual stress. Venting channels run along parting lines, slider seams, and deep-base corners; deep ribs use combined venting pins. Vent depths are tightly controlled at 0.025–0.035 mm for HDPE/PP to release burn gases without causing flash.

3. Cooling and Warpage Mitigation

The thermal challenge lies in minimizing top-bottom temperature differences that cause ovalization at the rim and twisting at the base. Designs adopt vertical channels + horizontal links forming closed-loop grids: multiple parallel circuits along the barrel, paired with beryllium copper plugs or spiral towers in thick base regions, keeping overall ΔT within ±4 °C. For high-recyclate formulations, extra cooling density near gates prevents local degradation discoloration.

III. Material and Process Alignment

1. Resin-Tool Steel Pairings

• HDPE: High impact resistance and flowability, but shrinkage ≈2.0–3.5%; molds require compensation margins. Pre-hardened P20 or 718H steels suffice.




• PP copolymer (with UV stabilizers): Superior outdoor durability; shear-sensitive, so gate sharp corners are avoided. ESR steel improves corrosion resistance.




• Recycled blends (≤30%): Increased abrasion from contaminants justifies nitriding or PVD coatings on core/cavity surfaces for extended life.




2. Phased Process Settings

Wall thicknesses range 3.0–4.5 mm. Injection uses three-stage speed: slow start to clear cold runners, fast mid-phase to fill deep cavities before freezing, and final slowdown to reduce rim flash. Packing is split: high pressure first packs ribs, low pressure maintains global shrinkage compensation; total pack time exceeds gate freeze time by ~10% (validated experimentally).

IV. Manufacturing Challenges and Countermeasures

1. Deep-Cavity Machining Consistency

Freeform deep surfaces are finished via 5-axis contour and radial toolpaths (cusp height ≤0.01 mm), followed by graphite electrode EDM root cleanup and manual gradient polishing to achieve Ra≤0.35 μm internal smoothness for easy demolding and cleaning. Stacking lips are wire-cut (trim-two pass) for concentricity <0.05 mm.

2. Engineering for Long Service Life

Plates undergo stress-relief annealing before finish milling. Guide pillars/bushes use Cr-Mo alloy steel with ball-bearing configurations to reduce wear from frequent cycling. Heavy-duty ejectors (≥φ12 mm) receive Ti coating; return springs switch to high-cycle stainless series. Trials employ short-shot studies and mold-temperature scans to balance filling, plus strain gauges to verify slider clamping loads.

V. Maintenance and Evolution Directions

Routine upkeep focuses on parting-line cleaning, slider track lubrication, and hot-runner thermocouple checks; cavity roundness and parallelism are inspected every ~100k cycles. Responding to urban furniture updates, newer molds incorporate RFID tag slots, sensor mounting features for smart openings, and optimized waterlines for IML (in-mold labeling). Export variants often add SMED interfaces to cut batch changeovers to under 30 minutes.
