The Disposable Coffee Cup Injection Mold: The Precision Mechanical Art Hidden Behind Your Daily Cup
That disposable coffee cup handed to you at the café each morning, seemingly simple, is in fact the product of precision engineering. Its birth relies on a sophisticated system that merges mechanics, thermodynamics, and materials science—the coffee cup injection mold. This is not a simple block of metal with a cavity, but a micro-factory that tames molten plastic on the scales of milliseconds and microns.
Part I: The Mold's "Skeleton" and "Circulatory System" – Structure, Runners, and Cooling
The mold's core mission is to uniformly and rapidly fill a cavity thinner than paper with viscous molten plastic in under a second. This first requires an exceptionally robust "skeleton."

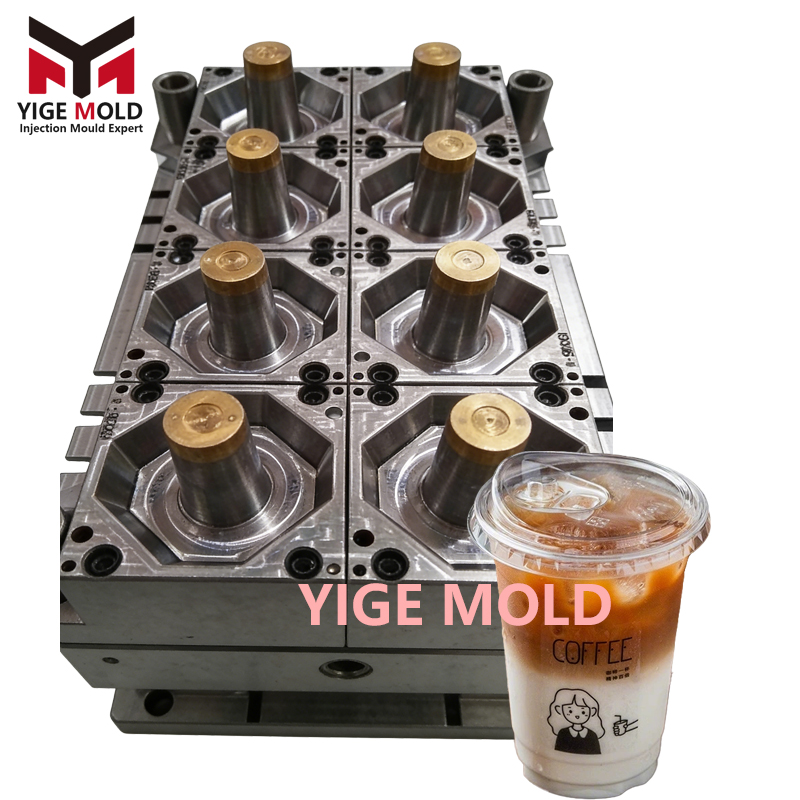

The moving and fixed halves of the mold are made from high-strength alloy steel, remaining immovable under hundreds of tons of clamping force to ensure the parting line (where the mold halves meet) is airtight, preventing flash. Within this skeleton, the "negative" of the future coffee cup is carved—a mirror-smooth cavity. The cup's curvature, the rim's flatness, and the base's reinforcing structure are all precisely defined here.
Flowing within the skeleton are the mold's "lifelines." The runner system is the high-speed highway for plastic melt traveling from the injection machine nozzle to each cavity. Modern molds universally employ "hot runner" technology, meaning this highway is thermally insulated throughout, keeping the plastic molten until it reaches the gate of each cup. This avoids the scrap generation and secondary cutting required by traditional cold runners. The hot runner manifold contains an intricate network of heater bands and thermocouples, ensuring temperature uniformity from center to edge.
If the runners are arteries, the cooling system is the venous network. Once molten plastic enters the cavity, it must cool and solidify rapidly for ejection. Inside the mold, snaking just behind the cavity surface, is a labyrinth of water channels. Chilled water circulates at high speed, acting like countless cold hands precisely drawing heat from the plastic. Channel layout is an art: thin wall areas need gentle cooling to prevent stress cracking, while thick sections like the rim and base need aggressive cooling to shorten cycle time. Engineers use flow simulation software to ensure even cooling everywhere, which is key to preventing warpage and ensuring cycle consistency.
Part II: The "Dance" of Milliseconds – Injection, Packing, and Ejection
Once mounted on a several-hundred-ton injection molding machine, the mold begins a millisecond-precision dance.
The first step is clamping, where the two mold halves are hydraulically driven together with immense force. Immediately, the screw pushes, forcing molten plastic at extremely high pressure (often exceeding 500 atmospheres) and speed (up to one meter per second) through the hot runner, jetting into the cavity through a pinhead-sized gate. This must happen within 0.2 to 0.5 seconds, as plastic begins to solidify the instant it touches the cold cavity wall. The injection speed and pressure profiles are precisely programmed—high speed initially for filling, slowing near the end to prevent impact and air traps.
The moment filling ends, the packing (or holding) phase begins. The screw maintains pressure, forcing additional plastic into the cavity to compensate for the volume lost as the plastic cools and shrinks. The packing pressure and duration determine the cup's density, dimensions, and whether it will have sink marks. When packing ends, the cooling timer starts.
Once cooled, the mold opens. The formed cup now clings to the mold's protruding core. The ejection system activates—dozens of slender, hardened ejector pins (or a stripper plate) advance synchronously from behind, pushing precisely on the cup's base rim to cleanly "strip" it from the mold. Ejector stroke, speed, and synchronization are critical; any misalignment can puncture or distort the cup. The ejected cup is removed by a robot or free-fall, a cycle ends, the mold closes again, and the dance restarts, typically every 5 to 7 seconds.
Part III: The Details That Make or Break It – "Surface," "Venting," and "Longevity"
Beyond the macro structure, countless micro-details collectively determine a mold's success or failure.
Surface finish is one of the mold's souls. The cavity surface must reach a mirror finish, not only for aesthetics but to minimize ejection force and ensure a smooth cup surface. Through progressive polishing with diamond pastes from coarse to fine, surface roughness can achieve Ra 0.01 micrometers or less, like a perfect mirror. Sometimes, for a matte finish, chemical etching or laser texturing is used to create micro-textures on the surface.
As plastic fills the cavity at high speed, trapped air must escape. Otherwise, it compresses, generating intense heat that can burn the plastic, causing black specks ("dieseling"). The mold's venting system typically consists of shallow channels machined into the parting line, only 0.01-0.03 mm deep and less than half a millimeter wide. This dimension allows air to escape but prevents molten plastic, due to its surface tension, from entering. The design and machining of vents represent the pinnacle of a mold maker's experience.
Through millions of cycles of opening/closing, high-pressure impact, and thermal cycling, the mold itself is in a constant battle. Key moving components require extreme hardness and wear resistance. Guide pins and bushings are made from special alloys and hardened; cavity surfaces may be chrome-plated or nitrided to form a hard shell. Every cycle is accompanied by precise lubrication to reduce wear. A well-designed and manufactured mold can have a lifespan of tens of millions of cycles.
Conclusion: The Silent Industrial Cornerstone
The coffee cup mold is a classic "black box" product of industrial civilization. Consumers see the coffee in the cup, but not the multi-ton steel body that gives the cup its form, nor the exquisite runners and cooling channels within, nor the pressure and temperature controlled with millisecond precision, nor the countless hours of engineering effort spent on drawings and simulation software.
It stands silently in countless factories worldwide, replicating perfectly identical products at a rate of several times per second. Its value lies not only in producing the cup that holds our first morning warmth, but in representing the core capability of modern precision manufacturing to transform ideas, materials, and physical laws into vast quantities of reliable, affordable consumer goods. Behind the aroma of coffee lies the precision of steel and the logic of engineering, together building the world of convenient, tangible objects at our fingertips.
