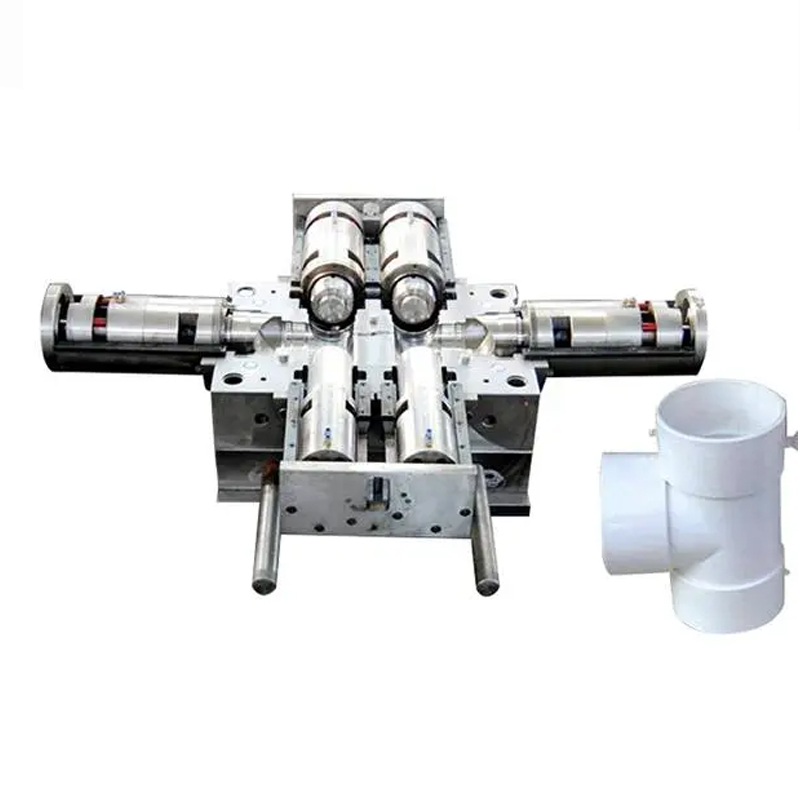

Engineering Detail: Equal Tee Mould

I. Product Scope and Failure Mode Focus

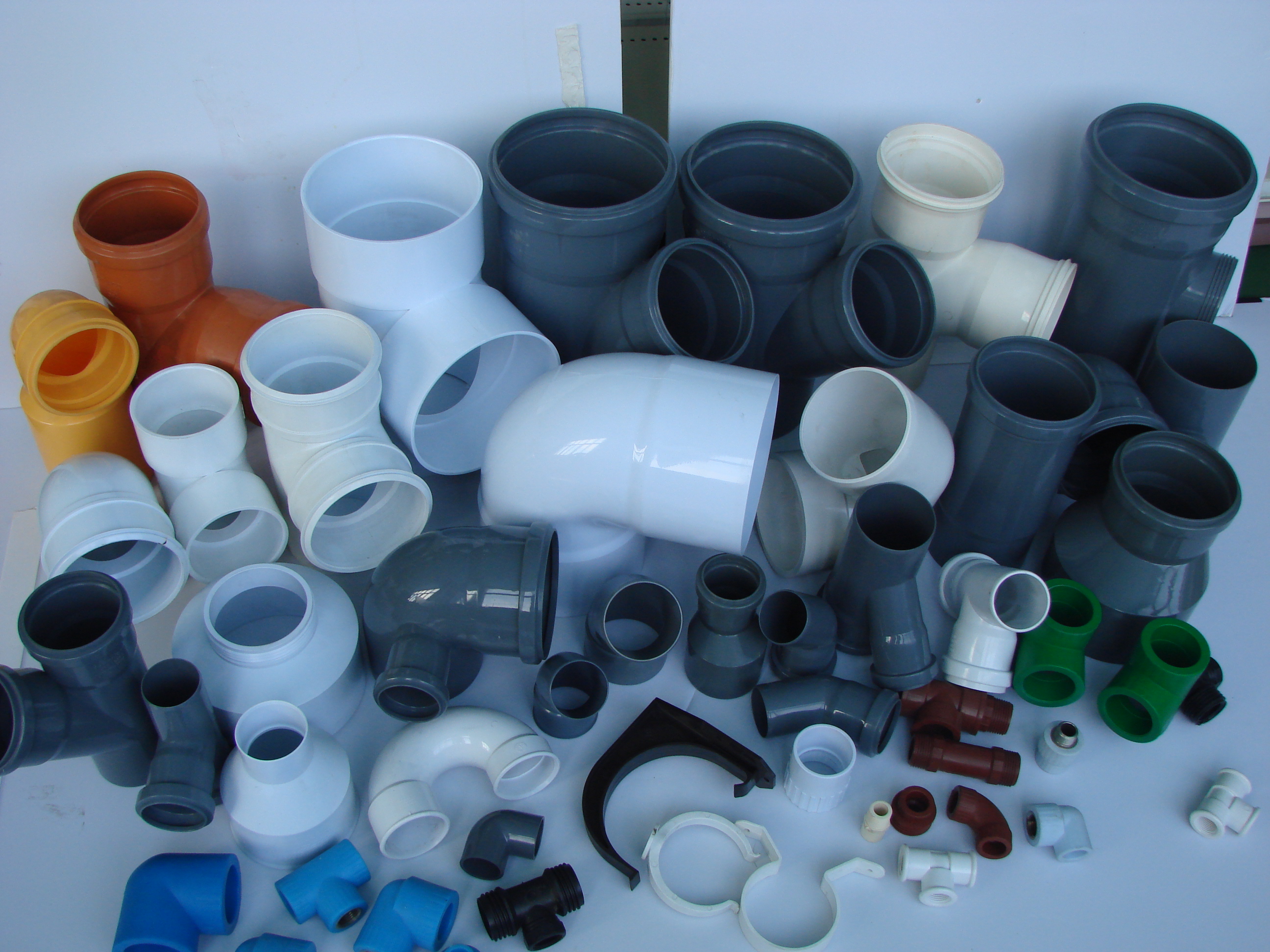

Equal tee moulds are specialized injection moulds for producing thermoplastic pipe fittings where the main and branch diameters are identical (common range: DN20–DN200, industrial grades up to DN300). Materials include PVC-U, PP-R, PVDF, and glass-filled variants. Unlike straight pipes or elbows, tees exhibit “Y/T-type flow convergence,” creating multidirectional melt collision, stagnation, and reorientation at the branch–main intersection. This leads to three dominant failure modes: weak weld lines (primary burst point under hydrostatic pressure), internal steps causing turbulent deposition (hygiene/flow limitation), and branch skew due to circumferential shrinkage imbalance (assembly interference). Thus, the core design objective is not merely cavity replication, but systematic coordination of runner topology, core-pull timing, and cooling symmetry to suppress physical defects at the junction.

II. Structural Architecture and Dynamic System Design

1. Cavity Layout and Scale Trade-offs

Small-bore tees (DN≤50) prioritize economy via 4–8-cavity rotational symmetry with naturally balanced runners to reduce lot variation. Medium-to-large tees (DN>50–200) are constrained by clamp force and plate size, typically using 1–2 cavities or a “one large + one small” combo layout. For extra-large or thin-wall tees, projected-area expansion force must be verified; non-cosmetic surfaces may add support pillars to resist elastic deflection.

2. Core-Pull System and Timing Coupling

A tee has at least three open ports, making core-pulling central:

• Axial cores: Main pipe ends use guided or hydraulic direct pulling; stroke must exceed socket/flange length + safety margin.




• Branch cores: 90° standard tees favour angled sliders + cam pins; 45° oblique tees require custom angled sliders or rotary tables.




• Micro-intervention cores: Mini cylinders (φ3–6 mm) or spring-assist pins near the branch root eliminate parting-line steps from traditional sliders, ensuring continuous internal intersections (critical for hygienic flow).




Hydraulic sequencing sets “main cores retract first → branch cores delay 0.5–1.0 s” to avoid interference damage. Slider lock blocks are hardened and paired with wear plates for sustained side loads.

3. Gating Topology and Melt Convergence Control

Gate location dictates weld-line integrity:

• PVC-U: Often gated at one main end via flared tab or curved buffer to guide melt toward the branch, reducing shear rate at the junction and decomposition risk.




• PP-R/PVDF: Valve-gated hot runners from the branch side enable sequential opening, controlling melt-front meeting angle >135°, supplemented by localized weld-zone heating (+5–10 °C above bulk mould temp) to promote molecular diffusion, achieving ≥85% of base-material strength.




• Thin-wall fast-cycle tees: Arrays of pinpoint gates along the main axis combine with high-speed injection (300–500 mm/s) to dominate filling via fountain flow, weakening stagnation effects.




4. Graded Venting and Clog Prevention

Tees trap air easily; vents concentrate at parting lines, core seams, and branch tops. Depth is strictly graded by rheology:

• PVC-U: 0.015–0.022 mm (anti-stick priority)




• PP-R: 0.018–0.028 mm (flash control)




• Glass-filled grades: tightened to 0.012–0.018 mm




Deep ribs use combined vent pins; tail-end vacuum assist evacuates trapped gas during high-speed shots.

III. Thermal Management and Asymmetric Warpage Suppression

Natural geometric asymmetry (main, branch, crown volumes differ) demands zoned cooling:

• Main section: annular water rings




• Branch: conformal drilled channels or baffled wells for forced heat transfer




• Junction crown: beryllium copper spot-cool pins or spiral towers to offset stagnant heat, targeting ΔT ±3 °C between main/branch/junction zones




For glass-filled grades (e.g., PA66-GF30, PP-GF20), asymmetric cooling near weld lines compensates for orientation-induced shrinkage, holding branch roundness within 0.15% of diameter.

IV. Material Behavior and Tool Steel Selection

V. Manufacturing Precision and Validation Methods

1. Cavity Machining Chain

Internal branch–main intersections are 5-axis finished via contour + radial toolpaths (cusp ≤0.008 mm). Intersecting curves are EDM-cleared with graphite electrodes, then hand-polished to Ra≤0.22 µm (or Ra≤0.18 µm for high-flow hygiene duties). Core fits are jig-ground or slow-wire-cut (trim-two passes), clearance ≤0.03 mm, with 0.5×0.5 mm end relief to prevent metal galling under high pressure.

2. Trial Validation Protocol

• Short-shot series: 10–100% stepped shots map three melt fronts; adjust valve timing so convergence avoids structural weak spots.




• Cross-sectioning: Microtome slices at junctions inspect weld density and microvoids; CT scanning reconstructs defect distribution.




• Fatigue simulation: Pulse-pressure tests on glass-filled tees detect early crack initiation at welds, guiding gate/cooling refinements.




VI. Maintenance and Evolution Trends

Routine upkeep covers slideway lubrication, hot-runner TC calibration, and flash cleanup; every ~50k cycles, check cavity roundness and core-return accuracy. Next-gen moulds embed in-cavity pressure arrays to map junction compaction curves, closing PID loops with machine controls. For municipal orders with ≥40% recyclate, quick-change insert systems (QMC) cut repair downtime to <2 hours. High-end variants explore in-mould spray-release films for simultaneous corrosion lining and demoulding.
