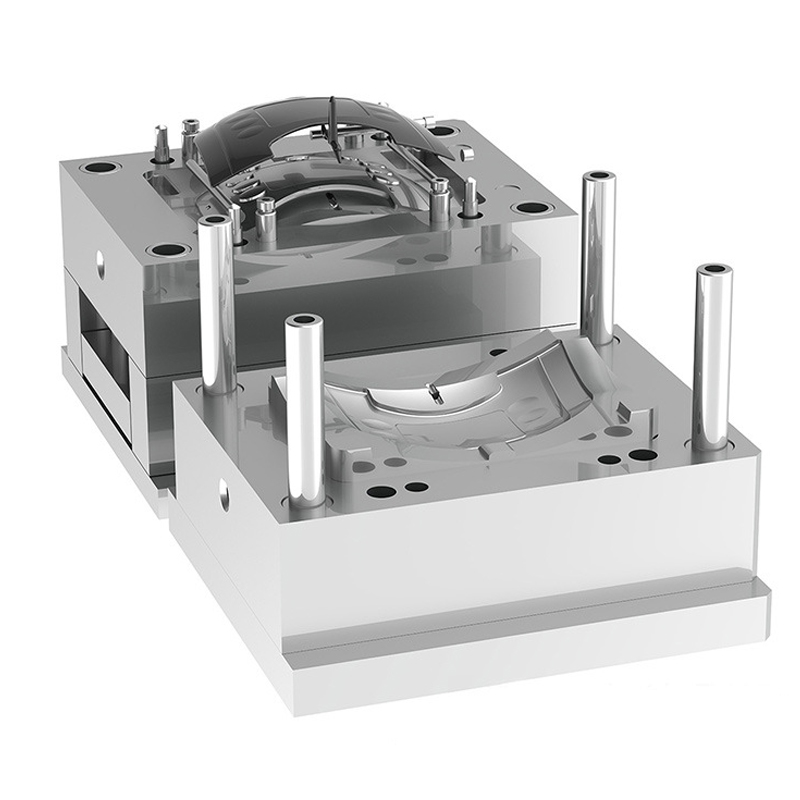

Innovative Technology and Application Details of Garment Hanger Molds
1. Mold Design Innovation System
1.1 Modular Design of Hanging Structure
Modern hanger molds adopt a reconfigurable modular system, enabling rapid switching between different hanging structures by replacing core modules. The hook forming module includes a rotating side core-pulling mechanism and an internal thread demolding mechanism, allowing the molding of three structures—straight hook, curved hook, and rotating hook—within a single module. The shoulder forming module features an adjustable angle design, with adjustable angled lifters (15°–45°) to accommodate different garment shoulder shapes. Specially designed sliding inserts enable stepless adjustment of shoulder width within a range of 380–480mm.
1.2 Thin-Wall Reinforcement Structure Molding Technology
To address the thin-wall characteristics of hanger products (main wall thickness: 0.8–1.5mm), a micro-rib reinforcement structure molding system has been developed. Pre-set micro-rib forming grooves with a thickness of 0.3–0.5mm are incorporated into the mold. Using gas-assisted molding technology, compressed air (pressure: 0.8–1.2 MPa) is injected into the rib grooves during the injection process, ensuring full filling of the plastic in the grooves and forming an invisible reinforcement structure. This technology can increase the load-bearing capacity of hangers by 40–60% without increasing wall thickness.
2. Material and Runner Innovations
2.1 Multi-Material Co-Injection System
The mold is equipped with a three-layer composite injection runner capable of simultaneously processing three different materials or colors:
Outer layer material: High-gloss ABS or PS, thickness: 0.3–0.5mm
Middle layer: Recycled material, accounting for 60–70% of the total thickness
Inner layer material: Reinforced material layer, with 20–30% glass fiber added
The runner system features independent temperature control, with temperature differences between material layers controlled within ±5°C. Layered injection is achieved through timing control valves, with switching intervals of 0.2–0.3 seconds between layers.
2.2 Low-Resistance Runner Optimization
The main runner adopts a tapered design, with an inlet diameter of Φ6mm, an outlet diameter of Φ3mm, and a taper of 1.5°. The sub-runners use a parabolic cross-section with an aspect ratio of 1:1.2, reducing pressure loss by 25–30% compared to traditional trapezoidal cross-sections. The gate design transitions from a pin gate to a fan gate, with multiple micro-gates (diameter: Φ0.8–1.2mm) spaced 8–12mm apart in thin-wall areas to ensure uniform filling.
3. Cooling System Breakthroughs
3.1 Layered Gradient Cooling Technology
Based on the wall thickness variations in different parts of the hanger, a three-stage cooling strategy is employed:
Thick-wall areas (hook, joints): Distance from cavity surface: 8–10mm, pipe diameter: Φ10mm, water temperature: 20–25°C
Medium-thick areas (main shoulder): Distance: 10–12mm, pipe diameter: Φ8mm, water temperature: 25–30°C
Thin-wall areas (edges): Distance: 12–15mm, pipe diameter: Φ6mm, water temperature: 30–35°C
Each area has an independent circulation system, and differential cooling is achieved by adjusting water temperatures to effectively control shrinkage and deformation.
3.2 High-Efficiency Heat Transfer Structures
Beryllium copper alloy inserts with a thermal conductivity of 105–130 W/m·K (3–4 times that of ordinary mold steel) are embedded in heat-concentrated areas. The gaps between the inserts and cooling pipes are filled with thermal grease, reducing thermal resistance by 40–50%. Spiral cooling pipes with a pitch of 15–20mm are installed in the hook forming area, positioned 6–8mm from the surface.
4. Ejection and Venting Systems
4.1 Flexible Ejection Technology
The ejection system employs multi-stage pressure control:
Low-pressure, slow-speed ejection in thin-wall areas (pressure: 2–4 MPa, speed: 5–10 mm/s)
Medium-pressure, medium-speed ejection in structural reinforcement areas (pressure: 6–8 MPa, speed: 15–20 mm/s)
High-pressure, fast ejection in thick-wall areas such as hooks (pressure: 10–12 MPa, speed: 25–30 mm/s)
Ejector pin heads are equipped with polyurethane buffer pads (hardness: 70–80 Shore A) to effectively prevent ejection marks.
4.2 Three-Dimensional Venting Network
A three-dimensional venting system is established:
Main venting slots on the parting surface (depth: 0.02–0.03mm, width: 8–10mm)
Auxiliary venting gaps on slider mating surfaces (0.015–0.02mm)
Micro-venting holes in ejector pin holes (diameter: Φ0.3–0.5mm)
The total cross-sectional area of the venting system reaches 20–25% of the runner cross-sectional area.
5. Precision Manufacturing Technology
5.1 Cavity Surface Treatment
A composite polishing process is applied:
Rough polishing with 600# sandpaper
Fine polishing with diamond paste (grit: W3.5–W1.0)
Mirror electro-polishing for a surface roughness of Ra 0.012–0.025μm
PVD coating is applied to wear-prone areas, with a coating thickness of 2–3μm, hardness of 2000–2500 HV, and a friction coefficient of 0.1–0.15.
5.2 High-Precision Machining
Cavity machining uses five-axis high-speed milling:
Spindle speed: 18,000–24,000 rpm
Feed rate: 8,000–12,000 mm/min
Machining accuracy: ±0.005mm
Thin-wall areas are machined layer by layer using micro-diameter milling cutters (diameter: Φ0.5–1.0mm), with a cutting depth of 0.05–0.1mm per layer. Slider guides are processed with slow wire EDM, achieving an accuracy of ±0.003mm and a surface roughness of Ra 0.4–0.6μm.
6. Production Process Optimization
6.1 Rapid Molding Process
The injection process employs five-stage precision control:
Stage 1: Low-speed filling of gates (speed: 5–8%, pressure: 30–35 MPa)
Stage 2: Medium-speed filling of the main body (speed: 20–25%, pressure: 40–50 MPa)
Stage 3: High-speed filling of ends (speed: 30–35%, pressure: 50–60 MPa)
Stage 4: Holding pressure compensation (pressure: 25–30 MPa, time: 3–5 seconds)
Stage 5: Cooling holding pressure (pressure: 15–20 MPa, time: 2–3 seconds)
The total molding cycle is controlled at 18–25 seconds, with a cooling time of 8–12 seconds.
6.2 Quality Control Technology
The online inspection system includes:
Laser thickness gauge: Real-time wall thickness monitoring, accuracy: ±0.02mm
Infrared thermometer: Temperature monitoring in various areas, accuracy: ±0.5°C
Pressure sensors: In-mold pressure monitoring, accuracy: ±0.1 MPa
Vision inspection system: Surface defect detection, resolution: 0.02mm
7. Mold Performance Indicators
7.1 Technical Parameters
Number of cavities: 4–32 (depending on product size)
Mold dimensions: 600×600×400mm to 800×800×500mm
Injection machine tonnage: 120–500 tons
Clamping force: 80–350 tons
Shot weight: 120–800g
Mold weight: 2–5 tons
7.2 Quality Indicators
Product weight deviation: ≤±0.5%
Dimensional stability: ±0.1mm/100mm
Surface gloss: ≥90 GU (measured at 60°)
Load-bearing capacity: ≥8 kg (standard adult hanger)
Fatigue life: ≥10,000 hanging cycles
8. Application Innovations
8.1 Multi-Functional Integrated Hangers
Mold innovations enable multi-functional integration:
Detachable pants clip: Formed through sliding inserts
Integrated measuring scale: Centimeter scales molded on the hanger crossbar
Non-slip coating: In-mold transfer of non-slip rubber layers
LED integration: Pre-installed slots for LED light strips
8.2 Environmental Technology Innovations
Special runners for biodegradable materials: Optimized for PLA, PHA, etc.
High-ratio recycled material usage: Supports 70–80% recycled material content
Water-saving cooling system: Reduces circulating water usage by 30–40%
Quick color change technology: Color change time ≤10 minutes
9. Economic Benefit Analysis
9.1 Production Efficiency
Daily output of 32-cavity mold: 40,000–60,000 pieces (24-hour production)
Material utilization rate: 96–98%
Energy consumption index: 0.8–1.2 kWh/kg of product
Labor requirements: 1 operator for 2–3 machines
9.2 Return on Investment
Mold investment: 150,000–500,000 RMB (depending on cavity count and complexity)
Cost per piece: 0.8–1.5 RMB (including materials, energy, labor)
Investment payback period: 3–8 months
Mold life: 800,000–1.2 million cycles
10. Maintenance and Care System
10.1 Preventive Maintenance
Daily checks: Lubrication system, cooling system
Weekly maintenance: Cleaning vent slots, inspecting ejector pins
Monthly maintenance: Checking slider wear, tightening connectors
Quarterly overhaul: Inspecting cavity dimensions, repairing textures
10.2 Repair Techniques
Texture repair: Laser cladding repair, accuracy: 0.01mm
Dimensional compensation: Electroplating repair, plating thickness: 0.01–0.03mm
Crack repair: Argon arc welding + heat treatment repair
Surface regeneration: Repolishing + recoating
Technology Development Trends: Future hanger molds will evolve toward ultra-multi-cavity high efficiency (64+ cavities), microcellular foaming for lightweighting (30–50% weight reduction), specialization for bio-based materials, and fully automated unmanned production. Through technological innovation, the dual goals of improving production efficiency while conserving resources and protecting the environment will be achieved, promoting the sustainable development of the garment accessories industry.
