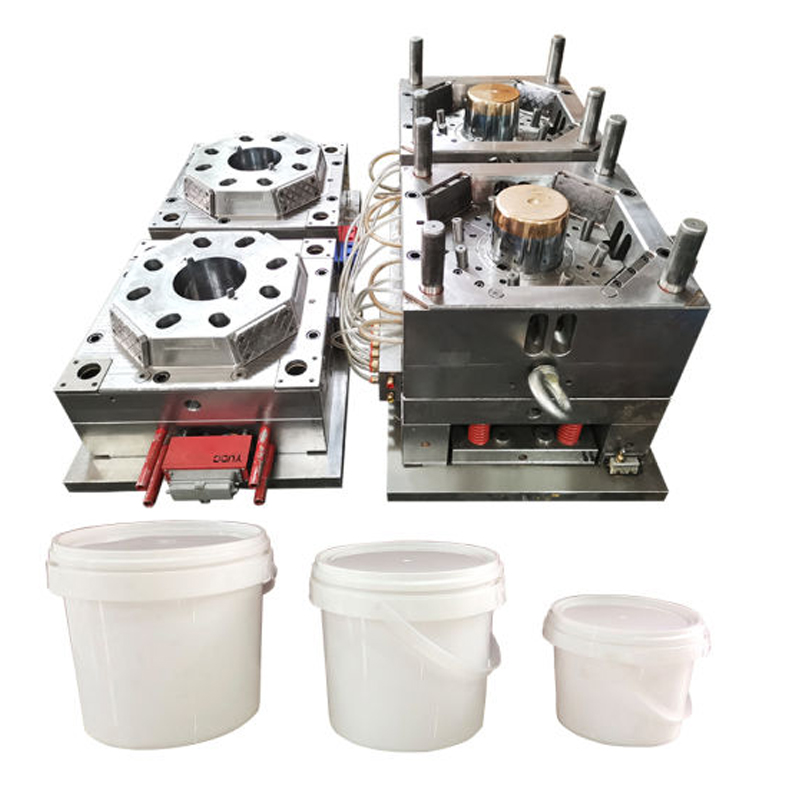

Injection Mold for Paint Buckets: Key Design and Manufacturing Elements
I. Structural Design Highlights
The mold adopts an integral mold base structure, with 45° guide pillars and self-lubricating bearings installed on both moving and fixed mold sides to ensure clamping repeatability within ±0.02 mm. The cavity is topologically optimized based on uniform wall thickness principles, employing gradual transition radii (R8 → R15) in the handle reinforcement ribs and bottom transition zones to avoid sink marks caused by stress concentration.
II. Gating System Design
Three-Stage Injection Runner: Primary runner diameter φ12 mm, secondary transition channels designed with parabolic variable cross-sections, and tip gates equipped with φ1.2 mm restrictor valves.
Melt Flow Balance Control: Mold flow analysis predicts weld line positions; three flow stagnation pillars are placed in the curved wall areas to synchronize the melt front arrival at cavity extremities.
Cold Slug Well Configuration: An inverted conical cold slug trap (depth 15 mm, taper 30°) is set at the end of the main runner, paired with spring ejectors for automatic slug removal.
III. Cooling System Architecture
Layered Cooling Circuit Network: Core zones use three-tier stepped cooling channels (spacing 15-18-15 mm); the threaded neck area employs 12 separate spiral copper tubes (φ8×1 mm).
Enhanced Thermal Conduction: Beryllium copper alloy inserts (thermal conductivity 105 W/m·K) are embedded in the bottom recess, combined with internal spray-type cooling channels, improving cooling efficiency in this area by 35%.
Zoned Temperature Control: Eight independent temperature control modules maintain gradient temperatures for gate zones (85°C), sidewall zones (60°C), and bottom zones (45°C).
IV. Ejection Mechanism Design
Multi-Stage Ejection System: Twenty-four φ6 mm ejector pins are activated sequentially via three hydraulic circuits—first stage ejects the bucket body, second stage provides partial ejection in handle regions.
Threaded Core Unscrewing Mechanism: Bucket lid threads utilize a hydraulically driven rotating core (15 r/min), with nano-composite plating (thickness 0.005 mm) applied to reduce friction.
Side Core-Pulling Optimization: Handle holes employ a combined angular pin and hydraulic side-pull mechanism with a 38 mm stroke, incorporating early return mechanisms to prevent ejector pin interference.
V. Material Selection and Heat Treatment
Cavity/core blocks use DIN 1.2344 ESR (electroslag remelted) steel (hardness 48–52 HRC), subjected to cryogenic treatment (-196°C × 24 h) followed by double tempering.
Slider components are made from DIN 1.2767 steel, surface-treated with sulfur‑nitrocarburizing (case depth 0.15 mm, surface hardness ≥ 1100 HV).
Guide bushes and other moving parts use high-carbon high-chromium steel (DIN 1.2379) paired with dual‑ring oil‑air lubrication systems.
VI. Manufacturing Accuracy Control
Cavity Machining: Five‑axis high‑speed milling (spindle speed 24,000 r/min) roughs the surfaces, followed by finish milling with micro‑ball end mills (R0.5 mm) using constant‑parameter tool paths.
Fitting Surface Treatment: After precision surface grinding, parting faces are hand‑scraped (blue contact area ≥ 90%), achieving assembly clearances ≤ 0.015 mm.
Surface Finishing: Runner areas are mirror‑polished to Ra 0.025 μm; texture patterns are formed by acid etching after EDM machining (depth 0.1–0.3 mm).
VII. Trial‑Run Verification Process
First‑Article Full Dimension Inspection: A CMM collects 128 characteristic points; deviations from CAD models must be ≤ ±0.05 mm.
Pressure‑Curve Analysis: In‑mold pressure sensors record peak injection pressure (85–110 MPa) to optimize switch‑over points.
Cycle Testing Validation: After 500 continuous cycles, parting line wear is measured (≤ 0.003 mm), and vent depths are evaluated for possible modification.
VIII. Maintainability Design Features
Quick‑Change Modules: Wear‑prone ejector pins feature shoulder‑locating designs, allowing single‑pin replacement in ≤ 8 minutes.
Condition Monitoring Interfaces: Vibration monitoring points are installed on critical moving pairs, with 4–20 mA signal output ports provided.
Maintenance Datum System: All mold plates have unified datum hole systems (position tolerance φ0.01 mm) to ensure reassembly accuracy after servicing.
This design and manufacturing framework achieves ≤ 0.08% dimensional variation in critical features over a 2‑million‑cycle lifespan through three technical approaches: structural mechanics optimization, refined thermal management, and enhanced kinematic reliability. Molds undergo three rounds of trial‑run adjustments before delivery, ensuring first‑batch production yields ≥ 99.2%.
