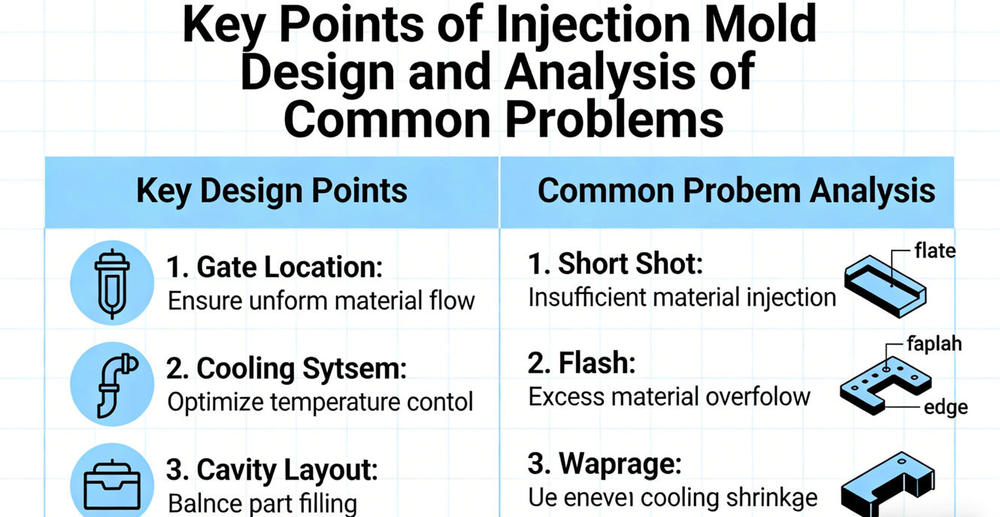

Key Points of Injection Mold Design and Analysis of Common Problems
Injection mold design is the core link determining the quality, production efficiency, and cost of plastic products, especially for daily household plastic items such as kitchenware, bathroom accessories, and storage containers. A scientific and reasonable mold design can not only ensure the precision, surface finish, and structural stability of plastic parts but also reduce mold trial times, shorten production cycles, and lower overall costs. However, many mold designers and buyers often encounter various problems during the design process due to insufficient consideration of details, leading to delayed delivery, increased rework costs, or even unqualified products. This blog summarizes the key points of injection mold design and analyzes common problems and solutions, providing practical guidance for importers and brand owners of daily household products.
Key Points of Injection Mold Design
Injection mold design for daily household plastic products needs to balance functionality, manufacturability, and cost-effectiveness. The following key points must be paid attention to in the design process.
1. Product Structure Optimization (DFM Analysis)
Before starting mold design, it is necessary to conduct a detailed Design for Manufacturability (DFM) analysis on the plastic product drawings. For daily household products, the focus is on optimizing the product structure to avoid design defects that are difficult to mold. First, the wall thickness of the product should be uniform, generally controlled between 1-3mm for daily plastic parts; uneven wall thickness will easily cause shrinkage, warping, and other defects during injection molding. Second, add appropriate draft angles (usually 1-3°) to the product surface, which can reduce the resistance during demolding, avoid scratches on the product surface, and extend the service life of the mold. In addition, avoid excessive undercuts and complex structures as much as possible; if undercuts are necessary, design a reasonable slider or lifter structure to ensure smooth demolding.
2. Mold Cavity and Core Design
The cavity and core are the core components of the injection mold, directly determining the shape and size of the plastic product. For daily household products with large production volumes, multi-cavity molds can be designed to improve production efficiency, but the number of cavities should be determined according to the product size, injection machine capacity, and production demand. At the same time, the cavity and core should be made of high-quality mold steel (such as P20, 718H, or S136) to ensure wear resistance and corrosion resistance. The surface of the cavity and core should be polished according to the product requirements; for products requiring a high-gloss surface (such as plastic food containers), mirror polishing is required to ensure the surface finish of the product.
3. Gating System Design
The gating system is responsible for guiding the molten plastic into the mold cavity, and its design directly affects the filling speed, pressure, and quality of the plastic. For daily household plastic products, the gating position should be selected at the thickest part of the product or the position where the filling is most convenient, avoiding the visible surface of the product to ensure the appearance quality. The size of the gate should be matched with the product size and plastic material; too small a gate will cause difficulty in filling and produce defects such as insufficient filling, while too large a gate will leave gate marks and increase the workload of post-processing. In addition, a reasonable runner system should be designed to reduce the waste of plastic raw materials and ensure uniform filling of each cavity.
4. Cooling System Design
The cooling system is crucial for improving production efficiency and ensuring product quality. For daily household plastic products with large production volumes, an efficient cooling system can shorten the molding cycle and reduce production costs. The cooling channels should be evenly distributed around the cavity and core, and the distance between the cooling channels and the cavity surface should be consistent (usually 10-15mm) to ensure uniform cooling of the product and avoid warping and deformation caused by uneven cooling. The diameter of the cooling channel should be determined according to the product size and molding cycle; generally, it is 8-12mm. For products with complex shapes, curved cooling channels or conformal cooling channels can be designed to improve cooling efficiency.
Common Problems in Injection Mold Design and Solutions
Even with careful design, various problems may still occur during the mold trial and production process. The following are the most common problems and corresponding solutions in injection mold design for daily household products.
Problem 1: Shrinkage and Sink Marks on Product Surface
Shrinkage and sink marks are common defects in plastic products, mainly caused by uneven wall thickness of the product, insufficient injection pressure, or improper cooling system design. For example, in plastic storage boxes, sink marks often appear at the thickened part of the bottom. Solution: Optimize the product structure to ensure uniform wall thickness; increase the injection pressure and holding pressure to make the molten plastic fully fill the cavity; improve the cooling system, increase the number of cooling channels, or extend the cooling time to speed up the cooling and solidification of the product.
Problem 2: Difficult Demolding or Product Scratches
Difficult demolding is usually caused by insufficient draft angle, unreasonable undercut design, or rough surface of the cavity and core. Scratches on the product surface are mostly due to the rough surface of the mold or burrs on the gate. Solution: Increase the draft angle of the product and mold; optimize the undercut structure, add sliders or lifters; polish the cavity and core to improve the surface finish; trim the gate to remove burrs and avoid scratching the product during demolding.
Problem 3: Insufficient Filling or Defects in Product Shape
Insufficient filling is mainly caused by too small gate or runner, low injection temperature, or insufficient injection speed. Defects in product shape, such as deformation and uneven size, are mostly due to unreasonable mold structure or uneven cooling. Solution: Increase the size of the gate and runner to ensure smooth flow of molten plastic; increase the injection temperature and speed to improve the fluidity of the plastic; optimize the mold structure to ensure uniform force on the product during molding; adjust the cooling system to ensure uniform cooling of the product.
Problem 4: Mold Wear and Short Service Life
Mold wear is mainly caused by the use of inferior mold steel, insufficient heat treatment, or improper use and maintenance. Short mold life will increase production costs and affect production progress. Solution: Select high-quality mold steel suitable for the product material; conduct strict heat treatment on the mold to improve its hardness and wear resistance; establish a regular mold maintenance system, clean the mold cavity, check the wear of the cavity and core, and replace worn parts in a timely manner.
In conclusion, injection mold design for daily household plastic products requires comprehensive consideration of product structure, mold structure, gating system, cooling system, and other factors. By grasping the key design points and solving common problems in a timely manner, we can design high-quality, efficient, and cost-effective injection molds, which is crucial for improving product competitiveness and reducing production costs. If you are looking for a professional Chinese mold manufacturer specializing in daily household plastic molds, we have rich experience in mold design and production, and can provide one-stop service from design, mold trial to mass production support, helping you avoid design pitfalls and achieve smooth production.
