Kitchen Dustbin Mold: An In-Depth Introduction

In the modern kitchen, the dustbin has evolved from a simple waste receptacle into a critical component that impacts hygiene, convenience, spatial aesthetics, and even home intelligence. The source that shapes these diverse and functional dustbins is the highly technical kitchen dustbin mold. More than just a tool for mass production, it is the physical embodiment of engineering design, materials science, and user-experience thinking. This article provides a comprehensive analysis of this industrial product, covering its significance, design and manufacturing process, and core technologies.

I. More Than a "Mold": Redefinition and Core Value

The mold, often called the "Mother of Industry," holds value far beyond a simple forming tool for kitchen dustbins.

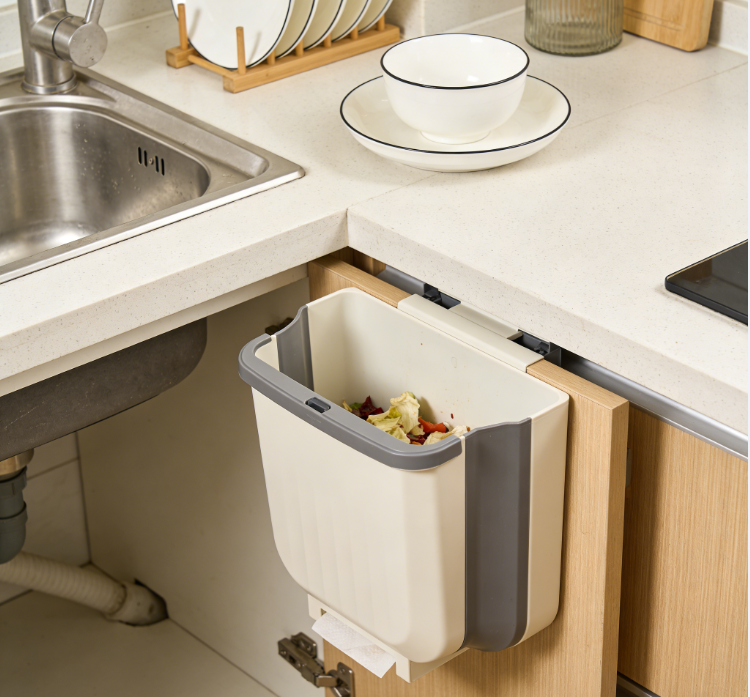

1. Product Definer: The mold determines the final form, structure, dimensional accuracy, and surface texture of the dustbin. Whether a minimalist cylinder, a corner-friendly扇形 (sector shape), or a pull-out design hidden within a cabinet, the shape is first defined within the mold cavity.




2. Core of Efficiency & Cost: A high-precision, long-life mold enables stable output of several or even dozens of pieces per minute, minimizing unit cost. Its level of automation (e.g., hot runner systems, interfaces for robotic part removal) directly dictates production efficiency and labor costs.




3. Foundation of Quality Assurance: Mold precision prevents defects like flash, sink marks, and warpage, ensuring lid seal integrity, smooth pedal operation, and perfect fit between the outer bin and inner bucket. An excellent mold is the fundamental prerequisite for consistent, high-quality products.




4. Enabler of Innovation: Any new functional design—such as a soft-close quiet lid, vacuum-sealing mechanism, integration of smart sensor-activated opening modules, or combination inner buckets for waste sorting—must rely on ingenious mold design to become manufacturable.




II. From Concept to Product: The Complete Lifecycle of a Kitchen Dustbin Mold

Mold manufacturing is a systematic, interconnected process.

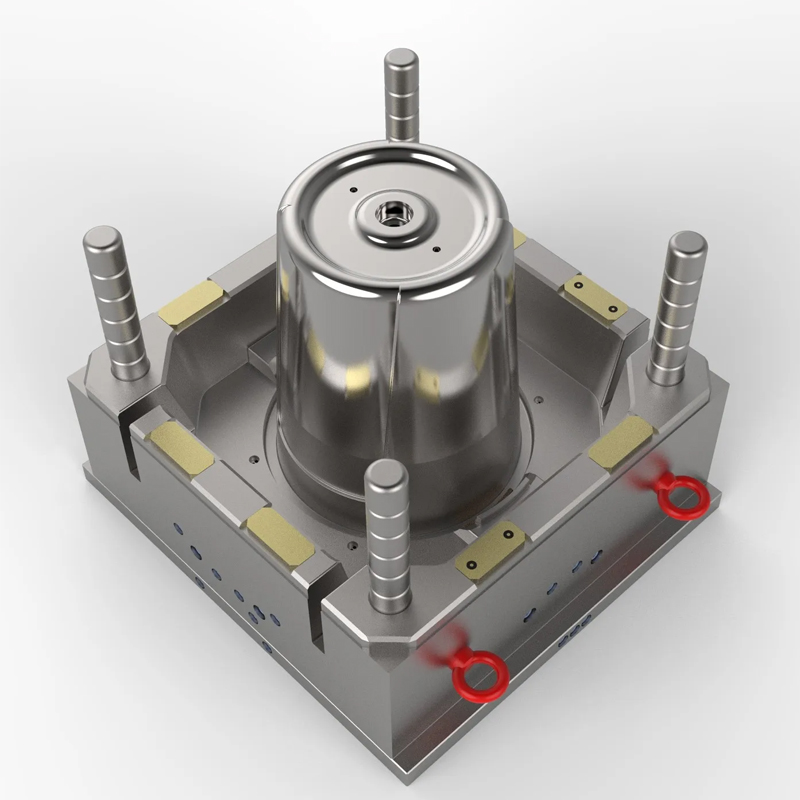

Stage 1: Product Analysis & Mold Design

This is the most technically intensive phase. Engineers must holistically consider:

• Material Properties: Kitchen dustbins primarily use Polypropylene (PP) for its toughness and chemical resistance, or ABS for parts requiring higher strength and gloss. Material shrinkage rates (typically 1.5-2.0%) must be precisely compensated for in the design.




• Draft Angles: Walls must be designed with appropriate draft (typically 1°-3°) to ensure the part can be ejected smoothly, impacting the visual verticality of the final product.




• Parting Line Selection: The surface where mold halves meet and separate. Its location must minimize visible witness lines while facilitating machining and venting. Complex "side-action" mechanisms (lifters/slides) are used for undercuts and complex geometries.




• Gating System: The channels through which molten plastic enters the cavity. Kitchen dustbins often use Hot Runner Systems to eliminate sprues, save raw material, shorten cycle times, and allow multi-point gating for uniform filling of large bins.




• Cooling System: This dominates over 70% of the cycle time. An optimized conformal cooling channel system ensures rapid, uniform mold temperature reduction, drastically boosting productivity and reducing part stress/warpage.




• Ejection & Venting Systems: Ejector pin and sleeve locations must be strategically placed to avoid marks on cosmetic surfaces. Effective venting prevents air traps and burn marks.




• Movable Mechanisms: Key to functional features. These include:

  • Lifters/Slides: For creating internal ribs, snap-fits, etc.




  • Gear-Rack or Linkage Mechanisms: For pedal-operated dustbins.




  • Unscrewing Mechanisms: For parts with threaded caps.







Stage 2: Precision Machining & Assembly

After design optimization via CAE software (e.g., Moldflow), manufacturing begins:

1. Rough Machining: Using large CNC machines to create the basic mold block shapes, leaving excess material.




2. Heat Treatment: Hardening core and cavity inserts (e.g., quenching, nitriding) to achieve high hardness (HRC 48-52) for longevity.




3. Fine Machining: Employing high-speed CNC, precision Electrical Discharge Machining (EDM), and Wire-Cut EDM to achieve micron-level accuracy for cavities and sliders. Surface textures (grain/etch) are applied via chemical or laser processes for finishes like matte, leather, or woodgrain.




4. Polishing: Runner systems and cavity surfaces are polished to a mirror finish for part gloss and easy ejection.




5. Assembly & Trial: All components and standard parts (guide pins, ejectors, cylinders) are meticulously assembled. The mold is mounted on an injection molding machine for a "Trial Run" (T1). Process parameters (temperature, pressure, speed, time) are adjusted until acceptable samples are produced, leading to final approval.




III. Core Technology Focus: What Makes an Excellent Kitchen Dustbin Mold

1. Longevity & Wear Resistance: Lifespans often exceed 500,000 cycles. Using premium mold steels (e.g., S136, 718H) and applying wear-resistant, anti-corrosive coatings (e.g., Titanium Nitride - TiN) on moving components significantly enhances durability and lubrication.




2. Multi-Channel Conformal Cooling Technology: Utilizing 3D metal printing (Additive Manufacturing) to create mold inserts with complex internal, three-dimensional cooling channels that follow the part's contour. This can improve cooling efficiency by over 30%, representing a revolutionary advancement in productivity and quality.




3. Multi-Material & Multi-Shot Molding Technology: Used for parts combining soft-touch seals (TPE) with rigid bins (PP) in a single cycle, or parts with multiple colors. Mold structure is complex, demanding extreme precision and sequence control.




4. High-Synergy Moving Mechanism Design: For functionally complex bins (e.g., sensor-activated, push-down seal types), the mold must integrate features for motors and sensors, ensuring all mechanisms operate reliably and without interference at high cycling speeds.




   Conclusion




The kitchen dustbin mold—an industrial artifact hidden from the end consumer—is the indispensable bridge connecting creative design with mass-produced, quality products. It embodies cutting-edge knowledge in mechanics, materials science, thermodynamics, and design aesthetics. Every time a lid closes with a quiet, gentle motion, or a pedal activates a smooth opening, a precisely engineered mold is performing its reliable function behind the scenes. Understanding the mold means understanding not only the manufacturing origin of a product but also how modern industry, with utmost precision, shapes and enhances the subtle details of our daily lives. In the pursuit of quality living today, an excellent kitchen dustbin begins with a masterfully crafted mold.
