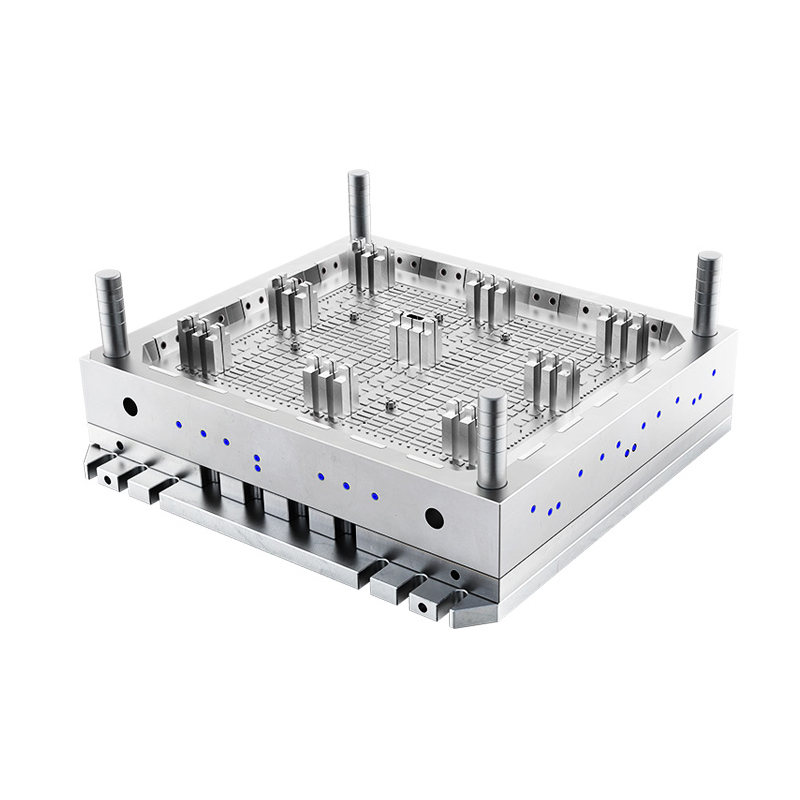

Introduction to Nine-Foot Pallet Molds: Refining Design and Manufacturing to Solidify the Foundation of Logistics Load-Bearing
In the efficient operation of logistics and warehousing, the nine-foot pallet, with its stable nine-point support structure, excellent load-bearing capacity, and adaptability to diverse scenarios, has become the core load-bearing carrier for cargo transfer and warehouse stacking. It is widely applied across numerous fields such as e-commerce logistics, food and beverage, pharmaceuticals and chemicals, and manufacturing. As the core equipment for pallet forming, the scientific design and manufacturing precision of the nine-foot pallet mold directly determine the structural strength, dimensional accuracy, and durability of the pallet, serving as the cornerstone for ensuring large-scale pallet production and meeting diverse logistics needs. The following provides an in-depth analysis of nine-foot pallet molds, focusing squarely on mold design and manufacturing.
I. Mold Design: Anchored to Core Demands, Building a Precise and Adaptable System
The design of the nine-foot pallet mold must be closely aligned with the core demands of logistics load-bearing—ranging from the stability of cargo support and the adaptability of warehouse stacking to the efficiency of large-scale production and the flexibility of customized needs. With reliability in structure, adaptability to scenarios, and efficient forming as the core anchors, a design system that is both practical and professional is created to lay a solid quality foundation for the pallet from the very beginning.
1. Mechanical Optimization: Building a Strong Load-Bearing Structural Defense
The core function of the nine-foot pallet is to bear cargo, and it must withstand the test of different weights and stacking methods. Therefore, mold design prioritizes mechanical performance and load-bearing adaptability. For the layout of the nine support feet of the pallet, the design team employs finite element mechanical analysis to accurately simulate the stress distribution of the pallet under different loads. The positioning of the nine feet, as well as the diameter and wall thickness of the foot columns, are scientifically planned to ensure that the formed pallet disperses stress evenly when carrying heavy loads, avoiding deformation and cracking caused by local stress concentration. This makes it suitable for demanding scenarios such as heavy cargo warehousing and high-frequency transfer.
Meanwhile, for the connection between the pallet panel and the foot columns, the design adopts a rounded transition and thickened reinforcement structure to eliminate stress concentration points caused by right-angle connections. This enhances the shear resistance and impact resistance of the connection parts, ensuring structural stability of the pallet during forklift handling and stacking compression. It is suitable for scenarios with extremely high durability requirements for pallets, such as cold chain logistics and chemical raw material transportation, thus building a load-bearing structural defense from the design source.
2. Scenario Adaptability: Balancing Warehousing and Circulation Needs
The diversification of logistics scenarios requires the nine-foot pallet to adapt to different warehousing equipment and circulation links, and mold design deeply integrates scenario adaptability logic. To meet warehouse stacking needs, the design precisely controls the overall height of the pallet, the height of the foot columns, and the flatness of the panel. Through strict calculation of the matching relationship between foot column height and stacking clearance, it ensures that the formed pallet fits securely during stacking, avoiding slipping and tilting. This adapts to warehousing scenarios such as automated warehouses and high-level racks, maximizing warehouse space utilization.
For the adaptation to handling equipment such as forklifts and pallet jacks, the design makes precise plans for the dimensions and position of the pallet's fork pockets, strictly controlling the tolerance of the fork pocket's width and height, and reserving reasonable clearance. This ensures that handling equipment can insert accurately and operate smoothly, reducing jamming and collision during handling. It adapts to efficient circulation scenarios such as automated warehousing and pipeline transfer. In addition, the design can customize details such as anti-slip textures, drainage channels, and anti-static structures according to the special needs of different industries, meeting the hygiene, anti-slip, drainage, and anti-static requirements of industries like food, cold chain, and electronics, achieving a precise balance between scenario adaptability and functional optimization.
3. Efficient Forming: Balancing Production Capacity and Cost Control
The logistics industry faces a mix of large-scale mass production and small-batch customized demand for nine-foot pallets. Therefore, mold design centers on efficient forming to balance production efficiency and cost control. A multi-cavity balanced runner system is adopted, with scientific planning of the runner layout and dimensions. Through runner pressure balance calculations, it ensures that plastic raw materials fill the cavities evenly and quickly, reducing defects such as flash, short shots, and sink marks. Meanwhile, it shortens the raw material flow path to increase the output per forming cycle, adapting to the pace of high-speed automated production lines.
The cooling system adopts a conformal waterway design that closely follows the cavity contour. By simulating the cooling temperature distribution and optimizing the waterway layout and diameter, it achieves uniform and rapid cooling, greatly shortening the pallet's forming cycle and reducing energy consumption and production costs per unit time. In addition, the design uses standardized components and quick-change structures. Core forming parts can be replaced quickly, and rapid model changes are realized through modular design. This not only meets the large-scale production needs of large logistics enterprises but also adapts to the flexible production requirements of small and medium-sized enterprises and customized orders, achieving a precise balance between capacity and cost.
II. Mold Manufacturing: Refining Through Precision Craftsmanship to Build a Foundation of Quality and Durability
The manufacturing of the nine-foot pallet mold is the core link that transforms the design scheme into high-precision forming equipment. Relying on precision equipment, exquisite craftsmanship, and strict quality control, it ensures that the design precision is perfectly realized, laying a solid defense line for the quality stability of the pallet and the durability of the mold.
1. Precision Machining: Delivering on the Promise of Design Precision
The machining precision of the mold cavity directly determines the dimensional consistency and structural stability of the pallet, and the manufacturing process relies on high-precision equipment to ensure precision is achieved. A five-axis linkage CNC machining center is used, leveraging its multi-axis coordinated precision cutting capability. Combined with high-precision tools and optimized machining parameters, the dimensional tolerance of the cavity is controlled at the micron level. This ensures that the height of the pallet's foot columns, the dimensions of the panel, and the precision of the fork pockets all meet standards accurately, guaranteeing precise matching between the pallet and warehousing equipment and handling tools, and safeguarding load-bearing capacity and adaptability from the source.
For the thin-walled structures and complex connection parts of the pallet, high-speed milling and EDM (Electrical Discharge Machining) precision machining technologies are introduced. Through refined parameter control, damage-free forming of complex structures is achieved, avoiding stress deformation caused by mechanical processing. This ensures uniform thickness of thin-walled parts and structural integrity of connection parts, accurately translating the details of the design drawings into the quality advantages of the finished product, and ensuring structural stability and compliance of details in the pallet.
2. Surface Refinement: Empowering Durability and Performance Enhancement
Surface treatment is a key process for improving mold durability and pallet performance. The cavity surface undergoes multiple polishing processes, from rough grinding to fine polishing, gradually improving surface smoothness until a mirror-like effect is achieved. Compliance is ensured through surface roughness testing, guaranteeing that the formed pallet has a smooth, burr-free, and flawless surface. This reduces friction damage during cargo handling and lowers the adhesion of corrosive media, enhancing the pallet's corrosion resistance and service life. It is suitable for industries with strict requirements for hygiene and durability, such as food and chemicals.
For key wear-prone parts of the mold, such as ejector pins, sliders, and parting surfaces, surface strengthening processes are adopted. Through carburizing, quenching, nitriding, and other treatments, the hardness and wear resistance of the parts are greatly improved, extending the service life of the mold and reducing precision decline and pallet defects caused by wear. At the same time, comprehensive anti-rust treatment is applied to the entire mold using processes like electroplating and spraying to form a dense protective layer. This ensures stable performance of the mold in long-term high-frequency production and humid environments, reduces maintenance costs, and meets the continuous production needs of the logistics pallet industry.
3. Full-Process Quality Control: A Closed Loop to Guarantee Quality Compliance
A full-process closed-loop quality control system is established in mold manufacturing, strictly enforcing quality standards from the source to the finished product. When raw materials enter the factory, comprehensive testing is conducted on the hardness, purity, and corrosion resistance of the steel. Methods such as spectral analysis, hardness testing, and salt spray testing are used to eliminate substandard materials from the production process. During machining, high-precision detection equipment like coordinate measuring machines and laser scanners is used to monitor the dimensions and geometric tolerances of key parts in real time. Any deviation is corrected immediately to ensure that the machining precision matches the design drawings.
After assembly, multiple trial molding runs are carried out. Through small-batch trial production, the dimensional accuracy, load-bearing capacity, stacking stability, and fork pocket adaptability of the pallet are comprehensively tested. Trial data is recorded and compared against design standards, and the mold is fine-tuned based on any deviations until all indicators meet mass production standards. With full-process closed-loop control, it is ensured that every mold can support the reliable quality and compliance of the pallet, laying a solid quality foundation for the large-scale production of nine-foot pallets.
The nine-foot pallet mold, with its design logic rooted in mechanical optimization and manufacturing strength refined through precision, has become the core support for ensuring pallet quality and adapting to logistics needs. By precisely controlling structural stability and scenario adaptability, and with manufacturing strength forged through precision craftsmanship, it solidifies the foundation for the large-scale production and quality assurance of nine-foot pallets. It continuously provides solid forming equipment guarantees for the efficient operation of logistics and warehousing, helping the logistics industry strengthen its load-bearing foundation and improve operational efficiency.
