PVC Drainage Pipe Fitting Molds: Precision Empowerment, Building the Core Foundation of Drainage Manufacturing
In the large-scale and standardized construction of global building and municipal drainage systems, PVC drainage pipe fittings have become the mainstay due to their corrosion resistance, convenient installation, and cost control advantages. As the core support for quality control and capacity leap of pipe fittings, PVC drainage pipe fitting molds—powered by solid material foundations, precision manufacturing processes, and flexible adaptability—build an efficient and stable production bridge for pipe fitting manufacturing enterprises, helping them solidify their manufacturing foundation and gain a firm foothold in market competition.
I. Solid Foundation: Building Performance Baselines with Robust Materials and Craftsmanship
The core competitiveness of PVC drainage pipe fitting molds stems from strict standards in material selection and the pursuit of excellence in manufacturing processes. From core material selection to detailed finishing, the molds ensure durability, precision, and operational stability in all aspects.
In terms of core materials, the molds precisely match high-quality mold steels such as 718H, P20, and 2316, with each steel grade undergoing rigorous screening and performance verification. The 718H steel boasts a dense and uniform structure, combining excellent polishing performance with stable mechanical strength. It can precisely meet the molding needs of various plastic raw materials including PVC, ensuring the mold does not deform during long-term high-frequency operation. The 2316 steel, with its outstanding corrosion resistance, can effectively withstand the erosion of PVC raw materials in high-temperature molten states, significantly extending the mold's service life. A single set of molds can achieve 300,000 to 1,000,000 shots, greatly reducing enterprises' costs of frequent mold replacements and downtime losses, and stabilizing production rhythms.
In manufacturing processes, the molds rely on a full suite of precision processing equipment, including CNC machining centers, CNC milling machines, wire cutting, and EDM equipment. Combined with CAD/CAM/CAE 3D design systems, key components such as the parting surface and core cavities are processed with millimeter-level precision. The dimensional tolerance of each component is strictly controlled at an industry-leading level to ensure that the mold assembles seamlessly, eliminating issues like dimensional deviation and uneven wall thickness of pipe fittings caused by processing errors at the source. Meanwhile, the molds adopt mature hot runner or cold runner systems, with hot runner components selected from high-quality brands recognized in the industry. This ensures that molten raw materials are injected into the cavities uniformly and stably, improving molding efficiency and guaranteeing the dimensional consistency of each pipe fitting, making product quality more reliable.
II. Comprehensive Adaptability: Precisely Covering Diverse Pipe Fitting Production Needs
To meet the production needs of PVC drainage pipe fittings in different scenarios and specifications, the molds have established a product system with complete categories and flexible customization, fully covering the molding needs of conventional and special pipe fittings, and adapting to various production scenarios.

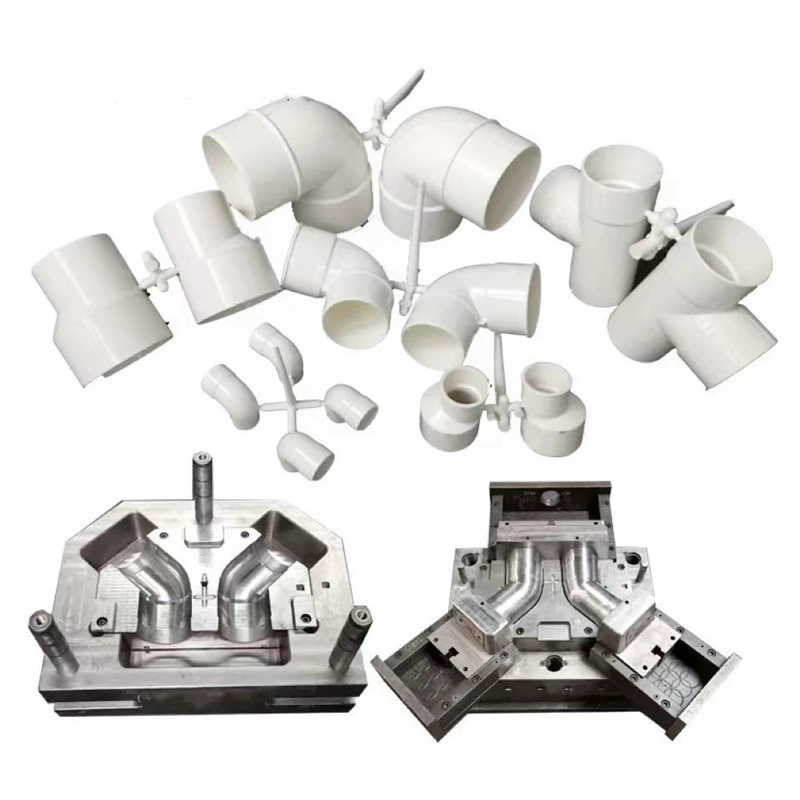

In terms of coverage of basic pipe fittings, the molds can precisely produce core components such as 90° elbows, 45° elbows, sweep tees, reducing tees, crosses, and reducing couplings. They are compatible with a full series of pipe diameters from φ25mm to φ315mm, providing matching mold solutions for both small drainage systems in civil buildings and large pipeline networks in municipal engineering and farmland irrigation. The cavity layout of the molds can be adjusted flexibly according to pipe fitting specifications: single-cavity molds are suitable for the production of large-diameter and structurally complex pipe fittings, while multi-cavity molds can achieve 16-cavity synchronous molding, greatly increasing output per unit time and meeting mass production demands.
For special pipe fitting needs, the molds support customized development and can quickly respond to the mold design and manufacturing of special pipe fittings such as inspection tees, water stops, and riser cleanouts. The technical team optimizes the mold's ejection mechanism and cooling system based on the special structure and functional requirements of the pipe fittings, ensuring smooth molding and easy ejection of complex pipe fittings, and guaranteeing the functionality and practicality of the products. At the same time, the molds are compatible with two mainstream processes: injection molding and extrusion molding. They can be flexibly selected according to the structural characteristics of pipe fittings and production scale, balancing the precise molding of irregular pipe fittings and the efficient production of large-diameter pipe fittings, fully meeting the diversified production demands of enterprises.
III. End-to-End Control: Guaranteeing Delivery and Operational Stability with Rigorous Quality Control
Quality is the lifeline of molds. PVC drainage pipe fitting molds have established a quality control system that runs through the entire process of design, manufacturing, and delivery, ensuring the quality and delivery efficiency of each mold with rigorous standards, so enterprises have no后顾之忧 (worries).
In the design stage, the technical team conducts in-depth docking with customer needs. Whether it is the 2D/3D drawings or physical samples provided by the customer, a comprehensive and detailed analysis is carried out. Through professional simulation, key issues such as stress distribution and cooling efficiency during the molding process are predicted, and the mold structure is optimized in a targeted manner to ensure that the design solution not only meets the pipe fitting molding requirements but also balances manufacturing costs and production efficiency. The design cycle is stably controlled within 5-7 days to quickly respond to customers' launch needs.
In the manufacturing stage, a full-process quality inspection mechanism is implemented. From the hardness testing and flaw detection of incoming steel, to the dimensional accuracy verification during component processing, and then to the mold trial verification after overall assembly, there are clear inspection standards for each stage. During the mold trial, molding parameters are adjusted repeatedly to ensure smooth mold operation, full pipe fitting molding, and no flash or burrs. Only after all performance indicators meet the standards can the mold enter the delivery stage. Meanwhile, relying on standardized production processes and a mature supply chain system, the mold manufacturing cycle is stably controlled within 30-60 days, flexibly managed according to the complexity of the mold, helping enterprises launch production quickly and seize market opportunities.
In the delivery and after-sales stage, the molds undergo professional anti-rust treatment before delivery and are packed in sturdy wooden boxes to ensure they are not damaged during transportation. At the same time, comprehensive after-sales support is provided, including on-site installation and commissioning guidance, training on optimization of molding process parameters, and teaching of daily mold maintenance. Technical problems encountered by customers during production are resolved in a timely manner, ensuring that the molds are quickly put into production and run stably, so enterprises can produce without worries.
IV. Core Empowerment: A Manufacturing Tool for Helping Enterprises Reduce Costs and Improve Efficiency
The core value of PVC drainage pipe fitting molds lies in bringing tangible cost optimization and efficiency improvement to enterprises, making them a core tool for enterprises to solidify manufacturing capabilities and expand market share.
From the cost perspective, the long lifespan brought by high-quality mold steel greatly reduces the mold consumption cost per unit product; the efficient molding design reduces raw material waste, and multi-cavity synchronous production increases output per unit time, comprehensively lowering the production cost of pipe fittings and leaving more profit margins for enterprises. Meanwhile, the high stability of the molds reduces downtime for maintenance during production, making the production rhythm more continuous and further improving production efficiency.
From the quality perspective, the pipe fittings produced by the molds have high dimensional accuracy, good surface finish, and stable performance, fully complying with relevant industry standards. This helps enterprises create high-quality pipe fitting products, build a reliable brand image, enhance market competitiveness, and lay a solid foundation for undertaking more orders.
From the delivery perspective, the efficient design and manufacturing process guarantees the rapid delivery of molds, helping enterprises quickly respond to market demand. Whether dealing with bulk orders or urgent orders, they can maintain an efficient production rhythm, which is especially suitable for business scenarios with high delivery timeliness requirements such as foreign trade and e-commerce, helping enterprises seize market opportunities.
V. Focused Deep Cultivation: Continuously Solidifying Manufacturing Strength with Craftsmanship
PVC drainage pipe fitting molds have always focused on the essence of manufacturing, polishing every process with craftsmanship, and continuously deepening the core capabilities of mold design and manufacturing. In the future, we will continue to make efforts in material upgrading, process optimization, and structural innovation, constantly improving the durability, precision, and production efficiency of molds. With more solid manufacturing strength, we will provide stable and reliable mold solutions for global PVC drainage pipe fitting manufacturing enterprises, helping them advance steadily in the field of drainage manufacturing and jointly build the quality foundation of drainage systems.
