Introduction to Plastic Water Inlet Pipe Fitting Molds
I. Overview of Plastic Water Inlet Pipe Fitting Molds
1.1 Definition and Classification
Plastic water inlet pipe fitting molds are specialized tools essential for the production of plastic pipe fittings. With their sophisticated structures and unique designs, these molds transform raw plastic materials into compliant pipe fittings.
In terms of classification, injection molds are a major category. They utilize injection molding machines to inject molten plastic into cavities, where it cools and solidifies. Suitable for thermoplastics, they are widely used in the manufacturing of various plastic products. Compression molds are primarily used for thermosetting plastics, applying pressure to fill the cavity and cure the material, commonly used for electrical components. Transfer molds are suitable for foam plastics, while extrusion molds are used for the continuous production of items like pipes and sheets. These different types of molds possess distinct characteristics and application scenarios, collectively meeting the diverse demands of plastic water inlet pipe fitting production.
1.2 Industry Development History
The plastic water inlet pipe fitting mold industry originated with the early stages of the plastics industry. Initially, molds were structurally simple with limited technical levels, resulting in low production efficiency and poor product precision.
With technological progress and the widespread use of plastic materials, the industry gradually developed. After the mid-20th century, improvements in processing equipment like injection molding machines significantly enhanced mold design and manufacturing techniques, greatly improving accuracy, lifespan, and efficiency. Entering the 21st century, the extensive application of Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) has enabled automated and intelligent production, allowing for the creation of more complex and precise fittings, thus ushering the industry into a new phase of development.
II. Structure and Characteristics of Plastic Water Inlet Pipe Fitting Molds
2.1 Main Structural Components

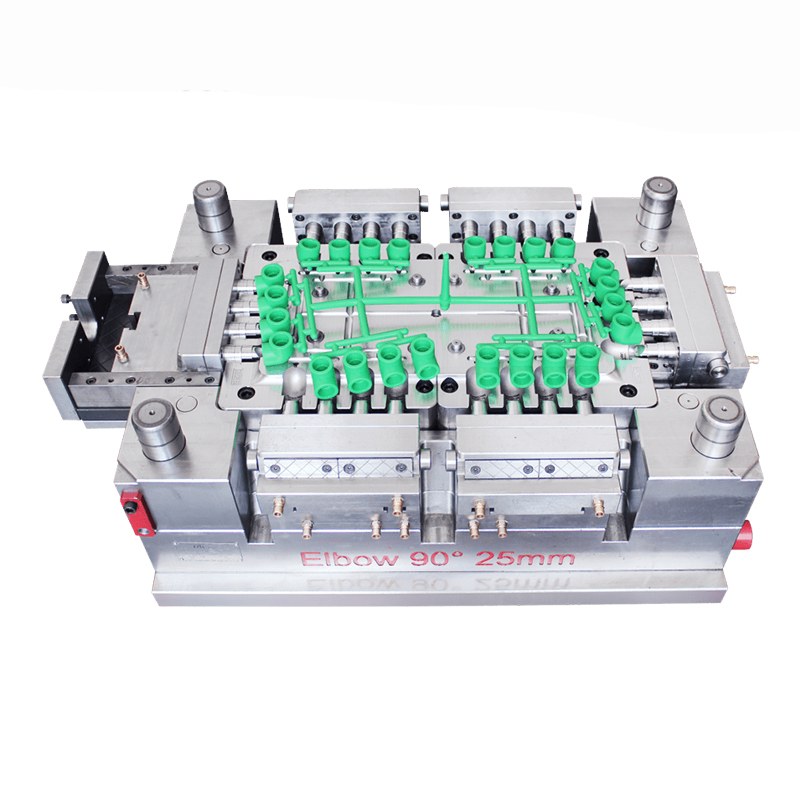

These molds mainly consist of the cavity, core, gating system, guiding mechanism, ejection system, and cooling system.
The cavity and core form the molding space; the core shapes the inner surface, while the cavity shapes the outer surface.
The gating system (sprue, runner, gate) guides molten plastic from the machine nozzle into the cavity, ensuring smooth filling.
The guiding mechanism (guide pins and bushings) ensures precise alignment between the moving and fixed halves during mold closing and opening.
The ejection system (ejector pins, stripper plates) removes the solidified part from the mold.
The cooling system regulates mold temperature via water channels to control cooling rates, ensuring product quality and production efficiency.
2.2 Unique Characteristics Analysis
In design, these molds require precise structural planning based on the specific shape, size, and requirements of the fittings, accounting for factors like melt flow and shrinkage to ensure dimensional accuracy and surface finish.
In manufacturing, there are extremely high demands on material selection and machining accuracy. High-quality alloy steels and advanced processes like CNC machining and EDM are often employed.
In operation, molds work under high-temperature and high-pressure conditions, requiring excellent strength, hardness, and wear resistance to withstand melt impact and friction. Regular maintenance, cleaning, and lubrication are crucial to extending mold life and ensuring stable production.
III. Materials and Processes for Plastic Water Inlet Pipe Fitting Molds
3.1 Common Materials
Steel is the primary material. Carbon tool steels (e.g., T8A, T10A) offer high hardness but poor hardenability, suitable for small, simple molds. Alloy tool steels (e.g., CrWMn, 9SiCr) improve hardenability and toughness by adding elements like Chromium and Tungsten, meeting the needs of medium-precision molds. High-speed steels (e.g., W18Cr4V) provide high hardness and hot hardness, ideal for high-precision, long-life molds.
Aluminum alloys are also used due to their light weight, high strength-to-weight ratio, excellent machinability, and superior thermal conductivity. Aluminum molds can shorten cycle times by rapidly cooling parts, making them suitable for applications where extreme strength is not the primary concern.
3.2 Manufacturing Process Flow
The manufacturing process is complex and precise:
Design: Utilizing CAD software for 3D structural design of cavities, cores, and gating systems.
Material Preparation: Selecting appropriate steel or aluminum based on design specs.
Rough Machining: Removing excess material via milling or planing to approximate the final shape.
Heat Treatment: Quenching and tempering to enhance mechanical properties, hardness, and wear resistance.
Finish Machining: Using CNC centers and EDM for high-precision machining to meet tolerance and surface roughness requirements.
Assembly: Assembling all components according to design specifications.
Trial Molding & Debugging: Installing the mold on an injection machine for test runs, adjusting as necessary until qualified products are produced consistently.
IV. Application Fields of Plastic Water Inlet Pipe Fitting Molds
4.1 Building Plumbing and Drainage

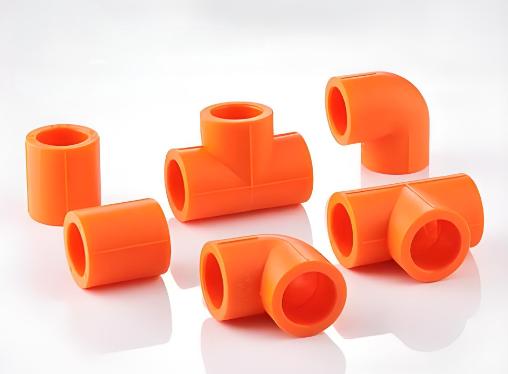

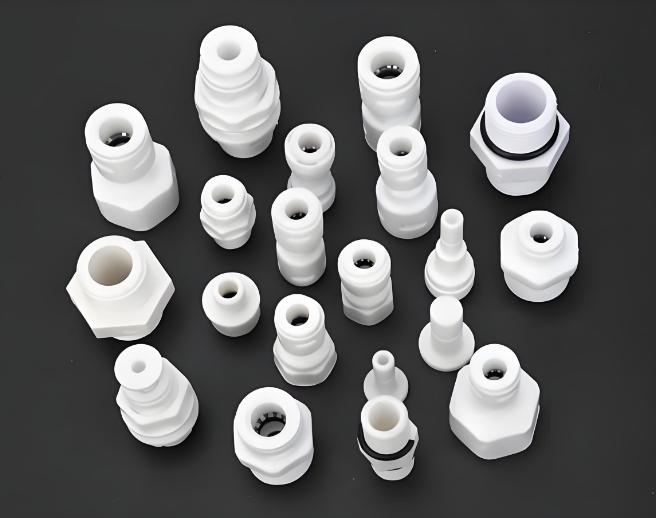

In building plumbing systems, these molds are vital. The fittings produced—such as elbows, tees, and couplings—act as critical nodes connecting the "vascular" network of pipes. These components offer excellent corrosion resistance against various water qualities and are easy to install, reducing construction difficulty and costs. High-quality molds ensure the long-term stability and safety of the plumbing system, preventing leaks and blockages.
4.2 Expansion into Other Fields
The application extends to agricultural irrigation (building water-saving systems), industrial water supply (process water and cooling cycles), and specialized industries (chemical and pharmaceutical sectors). In these fields, the corrosion and temperature resistance of the molded fittings ensures the safety and stability of specialized water systems.
V. Market Status and Prospects
5.1 Current International Market Status
The global market scale is substantial and growing alongside the plastic products industry.
Regarding competition, companies in Europe, North America, and Japan dominate the high-end market with advanced technology (e.g., German precision manufacturing). Developing countries in Asia, such as China and India, demonstrate strong competitiveness in the mid-to-low-end markets through cost advantages and improving technical capabilities.
Market demand varies regionally: developed regions (Europe/US) show strong demand for high-precision, eco-friendly molds, while developing nations focus more on cost-effectiveness and basic performance.
VI. Maintenance and Care of Plastic Water Inlet Pipe Fitting Molds
6.1 Daily Maintenance Key Points
Maintain cleanliness by removing residual plastic and impurities from the cavity and core after each cycle. Regularly inspect guide pillars and bushings, ensuring good lubrication without wear or sticking. Maintain the cooling system by clearing scale and debris from water channels. Routinely check fasteners for tightness to prevent operational deviations or damage.
6.2 Troubleshooting Methods
Sticking/Jamming: Often caused by foreign objects or wear. Clean the cavity/core and repair worn areas.
Poor Ejection: May result from ejection mechanism failure or insufficient cooling. Check the ejector mechanism and adjust cooling parameters.
Flash/Burrs: Usually indicates a loose parting line or damaged gate. Inspect the parting surface for clamping force issues and repair/replace the gate insert.
Accurate diagnosis of the cause is essential for effective resolution.
