Introduction to Reducer Tee Fitting Molds: Unlocking the Precision Code of Pipeline Connections

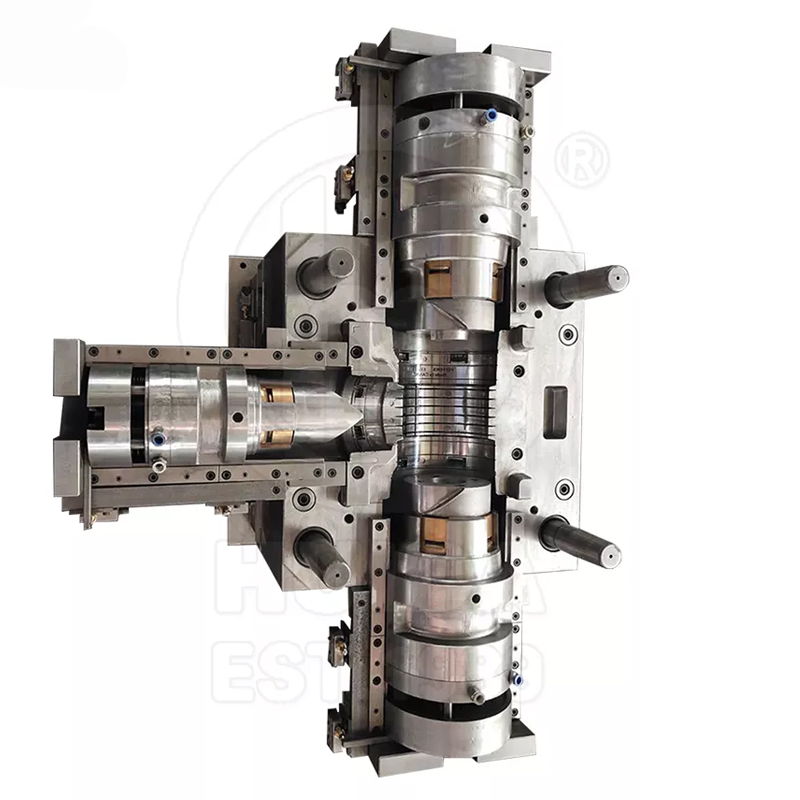

In the intricate world of pipelines, reducer tee fittings act as nimble joints, linking the veins of pipes with varying diameters, precisely regulating the flow direction, and injecting stability and efficiency into pipeline systems across municipal, industrial, and construction sectors. As the "craftsman's cradle" that nurtures these critical fittings, the reducer tee fitting mold delivers robust solutions to pipeline connection challenges through precise design and exquisite craftsmanship, emerging as a core driving force for the advancement of the pipeline industry. Let's penetrate the surface of technology and unlock the unique charm of reducer tee fitting molds.
I. Design Breakthrough: Anchored in Scenarios, Carving the Core of Forming
The design of reducer tee fitting molds is a meticulous game of dialogue with pipeline working conditions. Breaking free from traditional thinking frameworks, it centers on the core demands of pipeline systems—pressure resistance, flow distribution, and efficient production—using ingenuity and rigor to build a forming framework that adapts to diverse scenarios.
1. Tackling Working Conditions: Building Barriers for Safety and Adaptability
Pipeline operating environments are complex and variable, with high-pressure shocks, corrosion attacks, and sudden temperature changes constantly testing the reliability of fittings. Mold design takes working condition adaptation as its primary principle. To meet the pressure-bearing requirements of fittings, the mold adopts topology optimization design, accurately simulating the stress distribution of the fitting. It constructs a scientific wall thickness gradient and reinforcement structure at the junction of the main pipe and branch pipe, as well as in the reducer transition area. This ensures that the formed fitting remains rock-solid under high-pressure conditions, calmly facing the harsh challenges of municipal high-pressure water supply and industrial high-pressure fluid transportation.
Addressing sealing challenges, the mold conducts millimeter-level precision research on the fitting's sealing surface, thread interface, and sealing groove. From controlling the flatness of the sealing surface to calibrating the thread precision and strictly controlling the size of the sealing groove, every detail is dedicated to creating a leak-proof connection interface. This adapts to scenarios with strict sealing requirements such as chemical and HVAC systems, building a safety barrier for pipeline systems.
2. Carving Flow Channels: Achieving a Win-Win of Flow Distribution and Efficiency
The core mission of the reducer tee is to achieve precise flow distribution and smooth transportation. Mold design integrates fluid mechanics wisdom to infuse the flow channel with high-efficiency genes. Leveraging fluid simulation technology, the mold repeatedly deduces the reducer ratio and angular layout of the main pipe and branch pipe, optimizing the cavity flow channel structure. This ensures not only uniform and rapid filling of plastic raw materials but also a smooth inner wall of the finished fitting, reducing fluid resistance and simultaneously improving distribution efficiency and transportation effectiveness.
Meanwhile, the mold adopts a modular core design, allowing flexible switching of the diameter ratio and connection angle between the main pipe and branch pipe based on different distribution needs. Whether it is equal-diameter distribution, reducer distribution, or oblique distribution, it can be accurately adapted to meet diverse scenarios such as municipal pipeline network distribution and industrial production line fluid allocation, striking a perfect balance between distribution and efficiency.
3. Efficiency Innovation: Balancing the Scales of Capacity and Cost
Pipeline projects require both large-scale and customized demand for reducer tees. Mold design breaks through with efficiency innovation, balancing capacity and cost. It innovatively adopts a balanced runner layout, scientifically planning the direction and size of the runner to ensure uniform filling of the cavity with plastic raw materials, reducing defects such as flash and short shots, while shortening the raw material flow path to significantly increase single-cycle production volume.
Paired with conformal cooling channels that closely fit the cavity contour, it achieves rapid and uniform cooling, greatly compressing the forming cycle and adapting to the pace of high-speed automated production lines. Additionally, the mold uses standardized components and a quick-change structure, enabling one-click replacement of core parts to quickly switch production modes. This supports the massive demand of large-scale pipeline network projects while also responding to the personalized needs of small projects and customized pipeline networks, keeping the balance between capacity and cost in the optimal state.
II. Process Forging: With Craftsmanship as the Blade, Forging the Foundation of Quality
The creation of reducer tee fitting molds is a deep fusion of precision craftsmanship and the spirit of craftsmanship. From raw material selection to finished delivery, every process adheres to extremely strict standards, transforming design blueprints into forming tools of outstanding quality, laying a solid foundation for fitting quality and mold lifespan.
1. Exquisite Workmanship: Anchoring Precision to the Millimeter
The machining accuracy of the mold cavity directly determines the quality ceiling of the fitting. Relying on a five-axis linkage CNC machining center, with the precise cutting capability of multi-axis coordination, the dimensional tolerance of the cavity is locked at the micron level. It accurately controls the diameter of the main pipe and branch pipe, the reducer transition size, and the precision of the sealing surface, ensuring seamless adaptation between the fitting and the pipeline, safeguarding sealing and pressure-bearing performance from the source.
Facing the complex inner cavity structure and thin-wall transition area of the fitting, high-speed milling and EDM precision machining technologies are introduced. With delicate parameter control, damage-free forming of complex structures is achieved, avoiding machining stress deformation and turning design ingenuity into the hardcore quality of the finished product.
2. Surface Refinement: Empowering Durability and Performance
Surface treatment is a key step in elevating mold quality. The cavity surface undergoes multiple polishing processes, from rough grinding to fine polishing, layer by layer, until a mirror-level finish is achieved. This ensures the inner wall of the formed fitting is smooth and flawless, reducing fluid transportation resistance and minimizing the adhesion of corrosive media, greatly enhancing the corrosion resistance and service life of the fitting.
For key wear-prone parts of the mold such as ejector pins, sliders, and parting surfaces, surface strengthening processes are used to endow parts with ultra-high hardness and wear resistance, significantly extending the mold's service life and eliminating precision deviations and fitting defects caused by wear. At the same time, the entire mold undergoes anti-rust treatment to build a dense protective barrier, ensuring stable operation in high-frequency production and humid environments, reducing maintenance costs and adapting to the continuous production rhythm of the pipeline fitting industry.
3. End-to-End Control: Strictly Guarding the Quality Line
From raw material entry to finished delivery, mold manufacturing establishes a full-process quality control closed loop. When raw materials enter the factory, comprehensive testing is conducted on the hardness, purity, and corrosion resistance of the steel to eliminate substandard materials from the source. During processing, high-precision equipment such as coordinate measuring machines and laser scanners are used to monitor the size and geometric tolerances of key components in real time, and any deviation is corrected immediately.
After assembly, multiple trial molding runs are carried out. Through small-batch trial production, the fitting's dimensional accuracy, pressure-bearing capacity, sealing performance, and flow channel smoothness are fully tested. The mold is finely adjusted based on trial data until all indicators meet the standards. With a strict quality control system, the quality of each mold is safeguarded.
III. Value Bloom: Empowering the Pipeline Ecosystem, Driving Engineering Advancement
The application of reducer tee fitting molds injects strong momentum into the pipeline industry, showcasing unique value in large-scale projects, customized scenarios, and cost control, becoming the core engine driving the efficient implementation of pipeline projects.
In the field of large-scale projects, the reducer tees produced by the mold are accurate in size, reliable in pressure resistance, and stable in sealing. They provide solid fitting support for large-scale projects such as municipal pipeline networks, industrial projects, and building HVAC systems, eliminating hidden dangers such as leakage, pipe bursts, and flow imbalance from the source, greatly reducing project maintenance costs and building a safety defense line for projects.
Facing customized needs, the mold's flexible adaptability enables quick responses to personalized demands such as old pipeline network renovation and special industrial pipelines, providing customized fitting solutions for complex working conditions, allowing pipeline projects to accurately match diverse scenarios.
In terms of cost control, the efficient forming capability of the mold drives the automation and scale of fitting production, effectively compressing production costs and providing core assistance for cost reduction and efficiency improvement in pipeline projects, enabling both large-scale projects and customized projects to achieve a win-win of cost and quality.
IV. Iteration Leap: Anchoring the Frontier Track, Unlocking the Smart Future
With the iteration of pipeline engineering technology and the upgrading of working condition demands, reducer tee fitting molds are accelerating towards the new tracks of precision, efficiency, and intelligence, adapting to the pace of industrial advancement with technological innovation.
On the precision track, the mold will deepen precision control technology. By optimizing processing parameters and testing methods, the cavity tolerance will be compressed to the extreme, taking the dimensional consistency of fittings to new heights, adapting to stricter pipeline engineering standards, achieving zero-error fit between fittings and pipelines, and comprehensively improving sealing stability and pressure-bearing reliability.
On the efficiency track, the mold will iterate core systems such as cooling and ejection, further compressing the forming cycle and unleashing capacity potential to adapt to the pace of high-speed automated production lines. At the same time, it will optimize the runner and temperature control design to reduce raw material waste and slim down production costs.
On the intelligence track, the mold will be equipped with an intelligent monitoring system to capture the mold's operating status and forming parameters in real time, enabling fault warning and automatic adjustment, taking production stability to a new level. Meanwhile, it will deepen modular design, improve the universality and interchangeability of components, quickly respond to customized needs, and shorten model change time. With intelligent genes empowering mold production, it will unlock a new future of efficiency and flexibility for the pipeline industry.
Reducer tee fitting molds, with craftsmanship as the pen and technology as the ink, outline hardcore strength in the precision painting of pipeline connections. In the future, they will continue to break through the boundaries of innovation, with more precise forming, more efficient production, and smarter iteration, paving the way for the advancement of the pipeline industry, helping pipeline systems operate steadily in complex working conditions, and injecting endless powerful momentum into industrial development.
