Introduction to Reflective Road Stud Mold Design and Manufacturing
Reflective road studs, an indispensable component of modern road safety as a passive protective facility, rely entirely on their precise optical structure to perform their essential function—efficiently and accurately reflecting vehicle headlights back to the driver’s line of sight at night. The large-scale, standardized, and high-quality replication of this structure is entirely due to its "mother of industry"—the mold. The design and manufacturing of reflective road stud molds represent a comprehensive craft that integrates precision machining, optical engineering, materials science, and applied mechanics. This article aims to provide an in-depth analysis of the design principles and core manufacturing processes of this specialized type of mold.

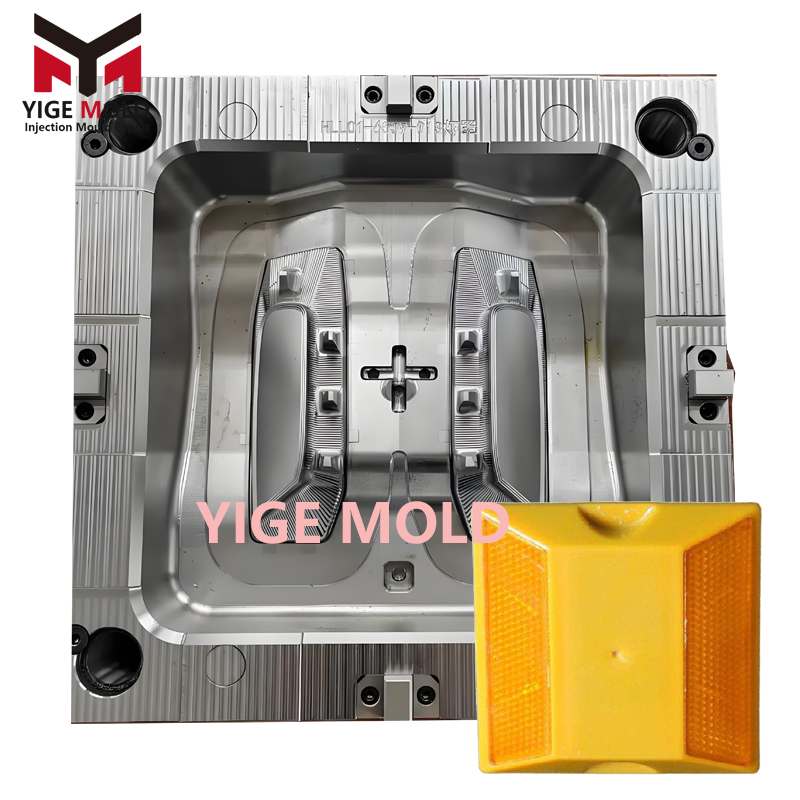

I. Design Philosophy: Function-Oriented Precision Configuration
The design of a reflective road stud mold is far from a simple "cavity copy." Instead, it involves precise configuration through a combination of reverse engineering and forward design, starting from the core function (reflection) of the final product. Its design language closely revolves around three core aspects: the optical unit, structural strength, and demolding feasibility.
Micro-design of the Optical Unit (Core Reflector):
This is the soul of the mold. Common reflective units in road studs mainly fall into two categories:
Cube Corner Prism Array: This is the mainstream design for high-performance studs. The mold cavity surface must be machined with millions of tiny, triangular pyramid-shaped pits (cube corners) that maintain near-perfect 90-degree angles to each other and possess extremely high mirror-like surface finishes. The design requires precise calculation of the prism depth, spacing, arrangement (typically tight hexagonal or rectangular arrays), and "tilt angle" to reflect light more effectively back to the driving area rather than vertically upward. Each microscopic pit on the mold becomes a protruding prism on the finished stud.
Embedded Glass Bead Structure: The design focus for such molds lies in providing precise positioning and a half-exposed structure for the glass beads. The cavity bottom features regularly distributed, precisely calculated hemispherical or bowl-shaped recesses for placing or subsequently embedding high-refractive-index glass beads. The mold design must ensure that after molding, approximately half of each bead's volume is exposed on the surface while being securely encapsulated by the base material.

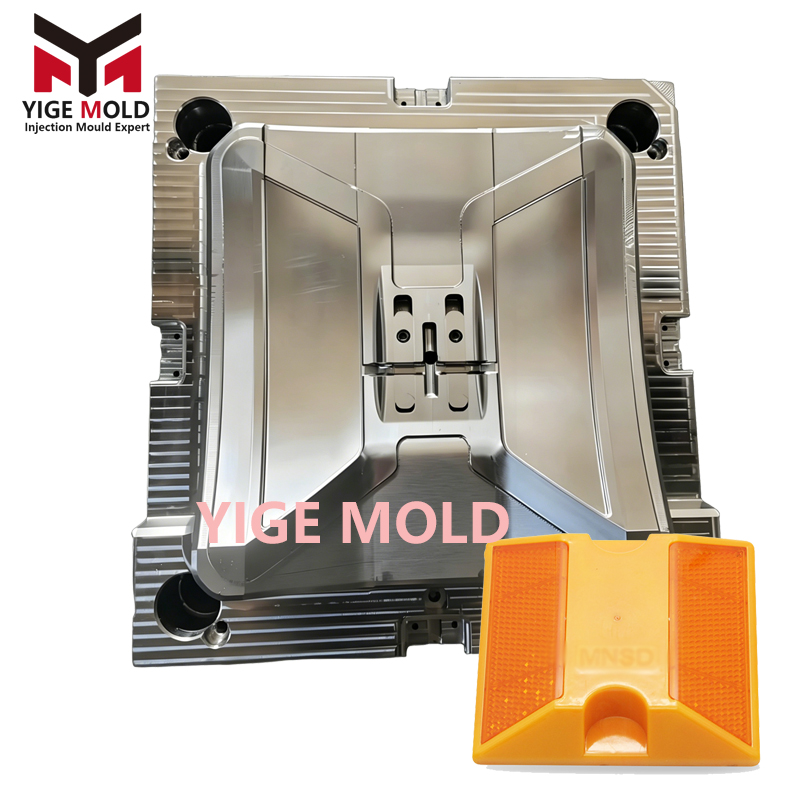

Macro Structural Strength and Anchoring Design:
Road studs must withstand repeated wheel compression and impact. Mold design must account for:
Integrated Rib Structure: Inside the stud housing, the mold must form a complex network of reinforcing ribs. The design of these ribs requires mechanical analysis to maximize strength while ensuring uniform plastic flow, avoiding short shots or stress concentrations. The thickness, height, and draft angles of the ribs require precise calculation.
Anchor Claw/Base Structure: The part for adhesion or embedding into the road surface is critical. Molds typically design this as multi-claw, barbed, or undercut expanded base structures to increase contact area and mechanical bonding force with asphalt/concrete. Handling the draft angle for these features is a challenging aspect of mold design, often addressed using sliders (side actions) or angled lifters to enable demolding of complex undercuts.
Balanced Design of Gating and Cooling Systems:
As road stud materials are often engineering plastics like Polycarbonate (PC) or Acrylic (PMMA), and the product demands extremely high dimensional stability and minimal internal stress for the optical surfaces:
Gate Design: Multi-point valve-gated hot runner systems or precisely calculated cold runners are typically used. Gate location selection must ensure the plastic melt can fill all complex optical and structural areas simultaneously, isothermally, and isobarically, preventing weld lines from crossing optical surfaces, which would cause reflection failure.
Cooling Channel Design: The uniformity of mold cooling directly determines product shrinkage and optical surface distortion. Behind the dense prism array areas, dense and balanced conformal cooling channels must be designed to ensure the entire cavity surface cools rapidly and uniformly, thereby "freezing" the optical structure with minimal dimensional error and internal stress.
II. Manufacturing Core: Extreme Craftsmanship Where Millimeters Matter
Transforming the精密design above into a physical mold relies on a series of top-tier manufacturing and treatment technologies.
Ultra-Precision Machining Technology:
Electrical Discharge Machining (EDM): For cavities with complex 3D curved surfaces and deep ribs, especially in very hard mold steels (e.g., S136, 2344), slow wire Electrical Discharge Machining (EDM) and precision sinker EDM are indispensable processes. By manufacturing pure copper or graphite electrodes that are the inverse shape of the protruding prisms, precision electrical discharge on CNC EDM machines can "erode" the optical unit array. The accuracy of the electrode itself determines the cavity accuracy, often requiring even higher-precision machining centers or engraving machines for electrode fabrication.
5-Axis High-Speed Milling: With technological advancement, for certain specific prism arrays, direct ultra-precision cutting with ultra-hard diamond tools is now possible. 5-axis联动technology allows the tool to approach the machining surface at the optimal angle, directly milling optical surfaces to a mirror finish, bypassing the EDM process. However, this places extremely high demands on machine tool rigidity, cutting tools, and process control.
Micro-Machining and Surface Treatment:
Micro-EDM and Laser Processing: For extremely small (micron-scale)精密structures, micro-EDM or ultra-short pulse laser processing techniques are required.
Mirror Polishing and Texture Treatment: This is key to determining reflective efficiency. Optical unit surfaces require the highest level of mirror polishing, often performed manually by experienced technicians combined with methods like ultrasonic polishing, achieving surface roughness of Ra < 0.025 μm or even lower, creating a true optical mirror surface. For the stud's base and non-optical surfaces, etching or texturing is sometimes applied to create a uniform matte or specific patterned surface, aiding demolding and enhancing product appearance.
Mold Structure and Materials Science:
Multi-Slider and Internal Core-Pulling Mechanisms: To demold complex features like side undercuts and anchor claws, molds must incorporate精密slider and angled lifter mechanisms. The fit clearance of these moving parts needs to be controlled at the micron level, ensuring no flash is produced even after long-term, high-frequency use, and movement remains smooth.
Application of Special Mold Steels: Core and cavity inserts must be made from high-purity, high-homogeneity, high-polishability, corrosion-resistant mold steels. Vacuum heat treatment is applied to achieve high hardness and toughness, resisting the high-pressure scouring of plastic melt and corrosive gas erosion, ensuring the optical surface remains as good as new after millions of injection cycles.
III. Validation and Challenges: From Mold to Qualified Product
The completion of mold manufacturing is just the first step; its validation is a rigorous process.
Trial Injection and Optical Verification: Trial runs are conducted on precision injection molding machines using specified materials. The first article inspection involves not only dimensional measurement but also, critically, photometric performance testing in a darkroom using a standard light source to measure its coefficient of luminous intensity. Only products whose reflection pattern and brightness fully comply with national standards (e.g., GB/T 24725-2009)证明the optical design of the mold is successful.
Core Challenges:
Optical Uniformity: Ensuring dimensional and angular consistency across millions of micro-prisms over an area of tens or even hundreds of square centimeters is the most significant manufacturing challenge.
Durability Balance: The mold must create sharp optical棱角for high反射效率, yet avoid excessively sharp corners that could make the product brittle or difficult to demold, requiring a balanced design approach.
Long-Term Stability: How the mold resists wear and fatigue to maintain its initial precision after enduring over a million cycles of high-temperature, high-pressure injection molding depends on the quality control throughout the entire process—from design and material selection to manufacturing.
Conclusion
The reflective road stud mold is a high-tech载体hidden behind tens of millions of ordinary road safety fixtures. It does not发声or connect to the internet, yet, in its steel form, it engraves the most精密optical language. Every detail of its design and manufacturing process—from the meticulous calculation of a single micro-prism's angle to the thoughtful planning of a cooling channel's path—embodies the ultimate pursuit of "precision" and "reliability." It is this precise, stable, and efficient industrial mold system that translates the abstract concept of "safety" into hundreds of millions of clear, durable, and dependable points of light on the road, silently guarding every nighttime journey home.
