Socket Tee Fitting Mold: The Core Engine of Precision Manufacturing, Empowering Efficient Pipeline Connections
In the vast network of pipeline system construction, the socket tee fitting, as a critical node for diversion and confluence, directly determines the stability and safety of pipeline operation. The socket tee fitting mold is the quality source and capacity guarantee for this core fitting. With its precision design and rigorous craftsmanship, it injects powerful momentum into fitting production, becoming the core tool for pipeline manufacturing enterprises to seize the market.
I. Core Positioning: The Key Manufacturing Core of Pipeline Connection

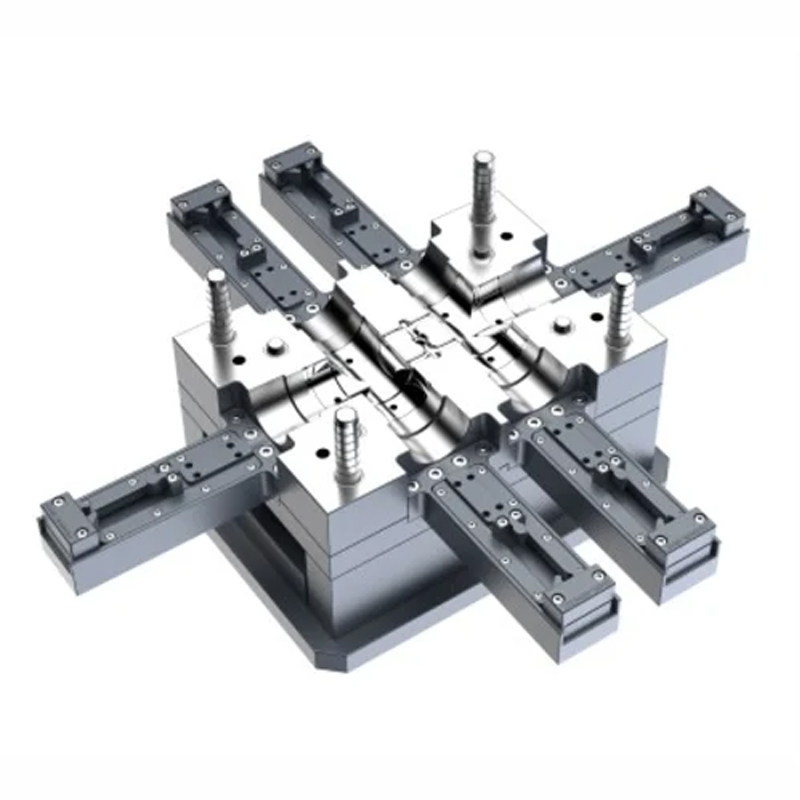

The socket tee fitting mold is a customized precision equipment specifically developed for the production of socket tee fittings. Leveraging the unique advantage of socket connections, it tightly integrates pipes and fittings without the need for complex welding or threading, achieving a secure connection. The fittings produced by this mold are widely used in core fields such as petrochemicals, electric power, building water supply and drainage, and municipal pipeline networks, undertaking the critical mission of media diversion and confluence. From the precise diversion of high-pressure pipelines to the drainage layout of civil buildings, the socket tee fitting mold provides a reliable connection framework for pipeline systems through standardized and large-scale production capabilities, serving as the core support for the pipeline industry to achieve efficient manufacturing.
II. Technical Advantages: Excellent Quality Forged by Precision Craftsmanship
The core competitiveness of the socket tee fitting mold lies in the extreme control of design details and the rigorous polishing of manufacturing processes. From structure to material, it comprehensively ensures the high quality of fittings and the high efficiency of production.
In structural design, the mold precisely replicates the diversion structure of the socket tee. The cavity layout strictly follows fluid mechanics principles to ensure smooth media diversion, reduce turbulence and resistance, and significantly improve pipeline transportation efficiency. The dimensional accuracy of the socket port is controlled at the micron level, ensuring a tight fit with the pipe socket. This not only guarantees the sealing of the connection but also withstands stress impacts in high-pressure environments, avoiding the risks of leakage and disconnection. To meet different pressure rating requirements, the mold can flexibly adapt to equal-diameter and reducing tee structures, covering the full specification range from DN6 to DN150, meeting the diverse needs of high-pressure petrochemical pipelines and low-pressure civil drainage.
In material selection, the mold selects premium mold steel, which undergoes multiple processes such as precision forging and heat treatment, endowing the mold with high hardness, high wear resistance, and excellent fatigue resistance. For the production of high-pressure fittings, the mold can adapt to the molding needs of pipe fitting materials such as carbon steel, stainless steel, and alloy steel. Even under long-term high-frequency and high-intensity production conditions, it can maintain stable dimensional accuracy, avoiding fitting defects caused by mold wear and significantly extending the mold's service life, reducing the cost of mold replacement and downtime losses for enterprises.
In the machining and assembly stages, relying on precision equipment such as CNC machining centers, wire cutting, and EDM, the mold cavities and cores are finely machined to the millimeter level, ensuring that every surface and edge is precise and error-free. During assembly, the fit of the parting surface and the coordination accuracy of moving parts are strictly controlled to ensure smooth mold opening and closing and easy ejection, eliminating issues such as flash and burrs on fittings from the source, and ensuring a smooth surface and uniform dimensions of the fittings to meet the stringent quality requirements of high-end pipeline systems.
III. Diverse Applications: Adapting to Full-Scenario Pipeline Demands
With its flexible adaptability, the socket tee fitting mold comprehensively covers the pipeline connection needs of multiple industries and scenarios, providing customized solutions for pipeline projects in different fields.
In the petrochemical field, high-pressure pipelines have extremely high requirements for the pressure-bearing capacity and sealing of fittings. The socket tee fittings produced by the mold, made of high-strength alloy steel, are formed through hot pressing and precision machining. They can withstand high-pressure ratings such as 3000LB and 6000LB, adapting to high-temperature, high-pressure, and corrosive media transportation environments, ensuring the safe and stable operation of oil refining and chemical plants. In precision fields such as electric power, aerospace, and military, the fittings produced by the mold, with their extremely high dimensional accuracy and consistency, meet the strict requirements for pipeline systems under special working conditions, providing reliable connection guarantees for key equipment.

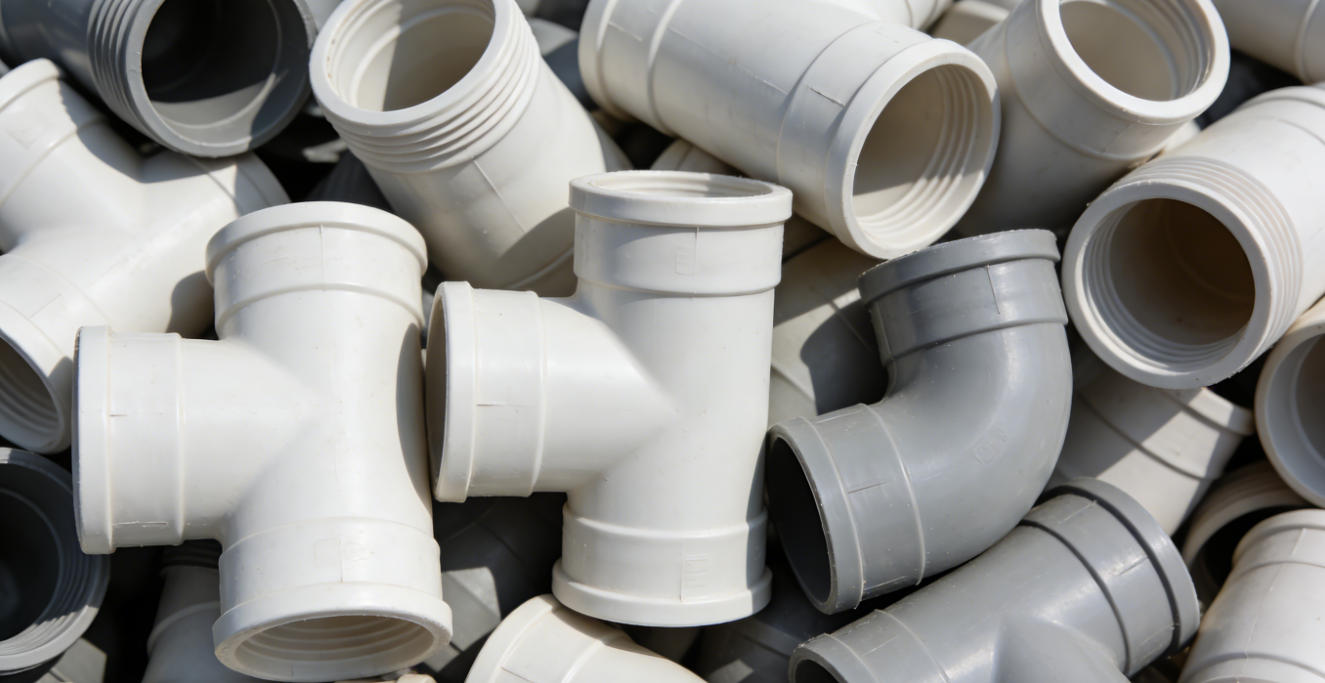

In building water supply and drainage and municipal pipeline networks, the mold can adapt to the production of plastic fittings such as PVC and PPR, meeting the needs of indoor hot and cold water supply, drainage systems in civil buildings, as well as urban and rural water supply and rainwater discharge. Plastic socket tee fittings, with their advantages of corrosion resistance, smooth inner walls, and convenient construction, combined with the efficient production capacity of the mold, help accelerate the progress of municipal projects while reducing subsequent maintenance costs. Whether it is the pipeline layout in narrow indoor spaces or the large-flow diversion of municipal pipeline networks, the mold can precisely match the pipe diameter and angle requirements to achieve the efficient construction of pipeline systems.
IV. Quality Control System: Full-Process Protection, Guaranteeing Delivery Strength
Quality is the lifeline of the mold. The socket tee fitting mold has established a quality control system that runs through the entire process. From design to delivery, every step is strictly controlled to ensure the mold quality and delivery efficiency.
During the design stage, the technical team combines customer needs and working condition characteristics, uses 3D modeling and simulation analysis technology to optimize the mold structure, predict potential molding defects and stress concentrations during production, and adjust the design plan in advance. This ensures that the mold is both practical and economical, shortens the design cycle, and quickly responds to customers' production launch needs.
During the manufacturing stage, a full-process quality inspection mechanism is established, from material testing of raw materials upon arrival, to real-time dimensional monitoring during machining, and then to mold trial verification after assembly. Every process has clear standards. During the mold trial, process parameters are repeatedly adjusted to ensure full and defect-free fitting molding, stable mold operation, and smooth ejection. Only after all indicators meet the standards can it enter the delivery stage.
In the delivery and after-sales stages, the mold undergoes professional anti-rust and protective packaging before delivery to ensure transportation safety. At the same time, comprehensive after-sales support is provided, covering mold installation and commissioning guidance, optimization of production process parameters, operator training, and subsequent mold maintenance and troubleshooting, timely solving customers' production problems to ensure the mold is quickly put into production and runs stably, leaving customers with no worries.
V. Core Value: Reducing Costs and Improving Efficiency, Solidifying Enterprise Competitiveness
The core value of the socket tee fitting mold lies in bringing tangible cost optimization and efficiency improvement to enterprises, helping them seize the initiative in market competition.
From the cost perspective, the long-life mold material and stable molding process significantly reduce the mold consumption and raw material waste per unit product. The multi-cavity design enables simultaneous production of multi-specification fittings, increasing unit-time capacity and lowering unit production costs. From the efficiency perspective, the high stability of the mold reduces production downtime for maintenance, ensuring a continuous production rhythm. The rapid delivery capability helps enterprises quickly respond to order demands and seize market opportunities. From the quality perspective, the uniform quality and reliable performance of fittings produced by the mold help enterprises build a high-end brand image, enhance customer trust, and lay the foundation for undertaking more high-quality orders.
The socket tee fitting mold has always been centered on precision manufacturing and guided by customer needs, continuously deepening technology and craftsmanship to provide pipeline manufacturing enterprises with high-quality and high-efficiency mold solutions. Whether it is the rigorous challenge of high-pressure pipelines or the diverse needs of civil pipeline networks, choosing a professional socket tee fitting mold means choosing quality assurance, efficiency improvement, and cost control. Let us work together to push the pipeline manufacturing industry to new heights.
