Introduction to the Stackable Bottle Crate Mold
In the production and circulation links of fast-moving consumer goods (FMCG) such as beverages, beer, and bottled water, bottle crates serve as the core turnover carrier, undertaking the functions of containerizing, protecting, and efficiently transferring bottled products. Among them, stackable bottle crates have become a key choice for the industry to reduce costs and improve efficiency, thanks to their advantages of high space utilization, low transportation costs, and convenient turnover. The stackable bottle crate mold, which supports the large-scale production of such crates, integrates structural design, materials engineering, and precision manufacturing technologies. It is the core link connecting the creative concept of bottle crates to mass production. It not only determines the forming quality and stacking performance of bottle crates but also deeply empowers the efficient operation and green transformation of the entire supply chain.
I. Core Positioning and Technical Core of the Mold
The stackable bottle crate mold is a specialized forming tool customized for producing stackable bottle crates. Its core mission is to transform plastic raw materials into bottle crates with stable stacking structures, high load-bearing capacity, and durability through processes such as injection molding and blow molding. The raw materials adapted to this mold are mainly high-strength engineering plastics. High-density polyethylene (HDPE) has become the mainstream choice due to its excellent impact resistance, low-temperature resistance, and processing fluidity. For some high-end bottle crates, a blend of polypropylene (PP) and HDPE is used to balance rigidity and toughness, meeting the requirements of heavy-duty and high-frequency turnover scenarios.
The technical core of the mold focuses on balancing stacking adaptability and forming accuracy. On one hand, the mold needs to precisely replicate the stacking structure of the bottle crate, including key designs such as top latches, bottom slots, and anti-slip ribs. This ensures that finished products interlock tightly when stacked, preventing sliding and tipping during transportation and guaranteeing stacking stability. On the other hand, the mold must achieve high-precision forming control, strictly controlling the dimensional tolerances and wall thickness uniformity of the bottle crate. This ensures the structural consistency of each bottle crate, meeting the dual needs of stacking adaptability and load-bearing capacity in mass production, and laying a solid quality foundation for subsequent filling and transfer processes.
II. Structural Design and Functional Synergy of the Mold
The structural design of the stackable bottle crate mold follows the principles of efficient forming, precise shape control, and stable stacking. Each core component operates in synergy to ensure production efficiency and the quality of finished products.

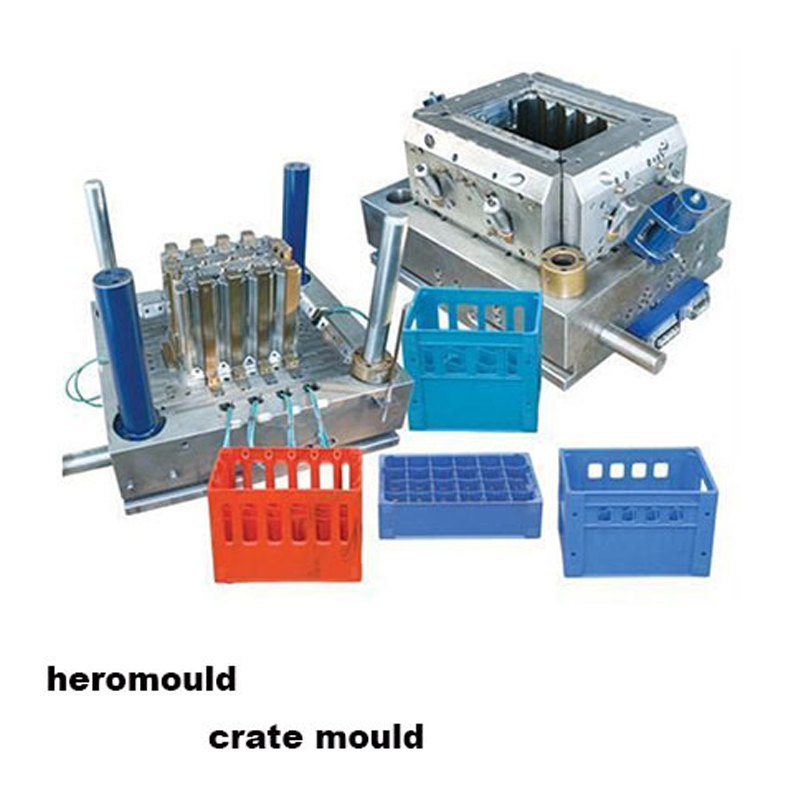

The forming system is the core of the mold, consisting of a cavity and a core. Its design directly anchors the stacking structure and functional requirements of the bottle crate. The cavity shapes the external contour of the bottle crate, including the side walls, bottom anti-slip textures, and top latch grooves. The core precisely controls the internal cavity structure of the bottle crate, ensuring the dimensional accuracy of the bottom slots and top latches, so as to realize the tight interlocking of upper and lower bottle crates. To guarantee the stability of the stacking structure, the mold adopts high-strength steel and reinforced structural design for key stress-bearing parts such as latches and slots, avoiding wear during long-term production and ensuring the consistency of the stacking structure.
The gating system undertakes the critical task of uniform conveyance and stable filling of raw materials, and mostly adopts hot runner technology to meet the forming needs of large-sized bottle crates. The hot runner system keeps the raw materials in a molten state through precise temperature control, avoiding the generation of cold sprues and reducing material waste. At the same time, it ensures that the raw materials fill the cavity quickly and evenly, preventing wall thickness differences in the bottle crate caused by uneven filling, which would affect the stacking load-bearing capacity. For large bottle crates, the mold adopts a multi-point gate design to optimize the runner layout, ensuring balanced filling of raw materials and improving forming quality.
The ejection system is responsible for the smooth demolding of the bottle crate after forming. It adopts a combined structure of a push plate and ejector pins to ensure uniform ejection force, avoiding deformation of the bottle crate due to uneven force. Especially for complex structures such as the bottom slots and side wall reinforcing ribs of the bottle crate, the ejection system needs to be precisely adapted to ensure smooth demolding and prevent damage to the finished product. The cooling system achieves uniform control of the mold temperature by optimizing the layout of cooling channels, shortens the forming cycle, avoids shrinkage deformation of the bottle crate due to uneven cooling, and ensures the dimensional accuracy and stacking adaptability of the bottle crate.
III. Core Craftsmanship and Quality Control in Mold Manufacturing
The manufacturing of the stackable bottle crate mold is a deep integration of precision machining and strict quality control, with every step determining the performance ceiling and service life of the mold.
Material selection is the foundation of quality. The mold steel must have high hardness, strong wear resistance, and fatigue resistance. High-quality mold steel is commonly used, and through vacuum heat treatment and surface strengthening processes, the hardness and anti-wear capability of the steel are enhanced. This ensures that the mold can withstand the wear of long-term high-pressure injection molding and resist the erosion of raw material flow, guaranteeing the stability of long-term mass production.
Precision machining is the core process, covering key procedures such as CNC milling, EDM (Electrical Discharge Machining), and mirror polishing. CNC milling is responsible for the rough and semi-finishing of the mold cavity, relying on high-precision equipment to ensure basic dimensional accuracy. EDM is used for complex structures such as the latches and slots of the bottle crate, achieving high-precision forming to ensure the accurate presentation of subtle details. Mirror polishing determines the surface finish of the bottle crate. It requires multiple steps from coarse polishing to fine polishing to reduce the surface roughness of the cavity to an extremely low level, avoiding streaks or defects on the surface of the bottle crate, and improving the appearance quality and durability of the product.
The mold assembly and debugging stage is equally critical. It requires strict control of the fit accuracy of each component. Through the trial mold process, parameters such as injection pressure, temperature, and holding time are repeatedly adjusted to solve issues such as short shots, flash, and deformation one by one. This is done until the stacking adaptability, load-bearing capacity, and dimensional accuracy of the bottle crate all meet standards, ensuring the mold is ready for mass production.
IV. Application Scenarios and Industrial Value of the Mold
The stackable bottle crate mold is applied in multiple fields, including beverages, beer, bottled water, and daily chemicals, providing core support for the efficient operation of the supply chain. In the beverage industry, stackable bottle crates produced by the mold are used to hold bottled beverages. Relying on the stacking structure, they maximize the space for storage and transportation, improving logistics efficiency. In the beer industry, heavy-duty stackable bottle crates are adapted to the turnover needs of beer bottles. Thanks to the high-strength structure created by the mold, they ensure durability during high-frequency turnover and reduce the damage rate.
In the bottled water industry, large stackable bottle crates are adapted to the containerizing needs of whole cases of bottled water. The efficient forming capability of the mold supports large-scale production, meeting the capacity demand during the peak season of the industry. In the daily chemical field, stackable bottle crates are used to hold bottled daily chemical products. The precise forming of the mold ensures the aesthetics and practicality of the bottle crate, meeting the needs of product display and transportation. From the perspective of industrial value, the stackable bottle crate mold not only greatly improves the production efficiency of bottle crates and reduces unit production costs, but also optimizes the stacking structure to reduce space waste in storage and transportation, lowering logistics costs. At the same time, relying on the high-quality forming of the mold, it reduces the damage to bottle crates and cuts down material waste, driving the supply chain toward a green and efficient direction.
V. Core Development Directions of Mold Technology
With the increasing requirements of the market for the quality, efficiency, and environmental protection of bottle crates, the core technology of the stackable bottle crate mold focuses on three directions: high adaptability, high durability, and high compatibility. High adaptability is reflected in the mold's precise forming ability for complex stacking structures. By optimizing structural design and machining accuracy, it adapts to more complex stacking latches and load-bearing structures, meeting the personalized needs of different industries. High durability focuses on the upgrading of mold materials and processes. By adopting higher-quality mold steel and advanced surface treatment technologies, the service life of the mold is extended, reducing downtime for maintenance and ensuring the continuity of production.
High compatibility points to the mold's ability to adapt to diversified raw materials and product specifications. Through modular design, the mold structure can be quickly adjusted to adapt to the production of bottle crates of different specifications and raw materials, helping enterprises flexibly respond to changes in market demand. In the future, the stackable bottle crate mold will continue to center on precision manufacturing, constantly breaking through technical bottlenecks. It will provide more efficient and reliable equipment support for the bottle crate industry, driving the turnover packaging industry toward high-quality and sustainable development.
As the core support of the bottle crate industry, the stackable bottle crate mold builds a solid foundation for the efficient turnover of bottled products with its precise structural design and exquisite manufacturing craftsmanship. It not only solves the core problems of stacking adaptability and efficient forming of bottle crates but also drives the supply chain to reduce costs, improve efficiency, and transform toward green development through technological empowerment. In the future, with continuous technological iteration, the stackable bottle crate mold will keep breaking through and innovating, injecting strong momentum into the efficient operation and sustainable development of the FMCG industry.
