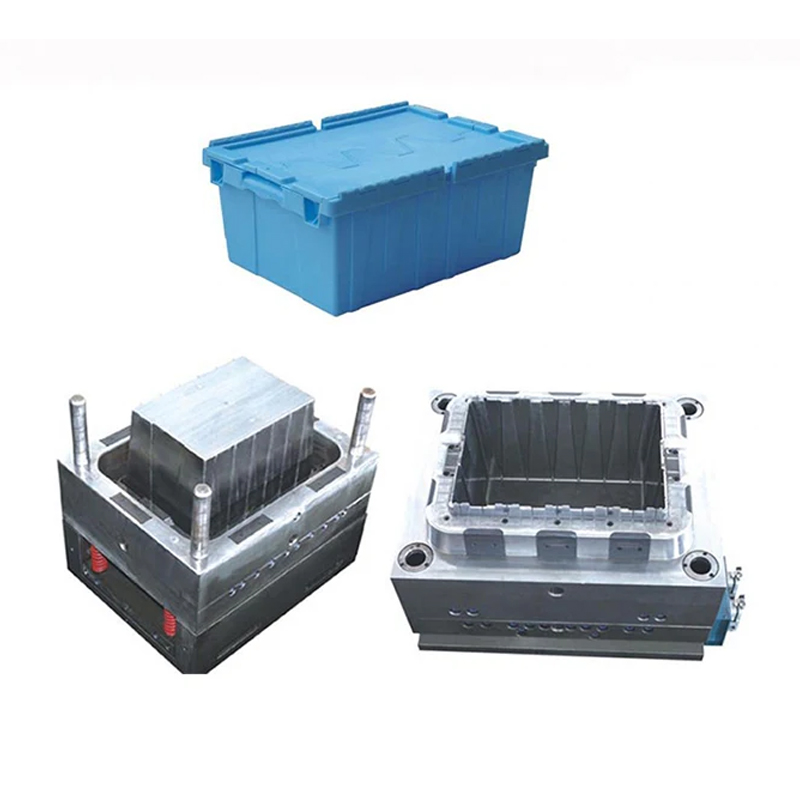

Folding Turnover Box Mould: Integrated Moulding Solution for Living Hinges & High-Impact Structures
A folding turnover box mould is a core tooling system for large-scale plastic logistics container manufacturing, producing collapsible storage/transport boxes that operate upright during use and fold flat for return trips—slashing empty return volume by 60–70%. Unlike standard injection moulds, this class of tooling must simultaneously form the main body, precision living hinges, lock clasps, and anti-slip ribs in a single shot, while ensuring hinge fatigue life ≥100,000 cycles—bridging mechanical motion design with polymer processing control.
1. Product Definition & End-Use Scenarios

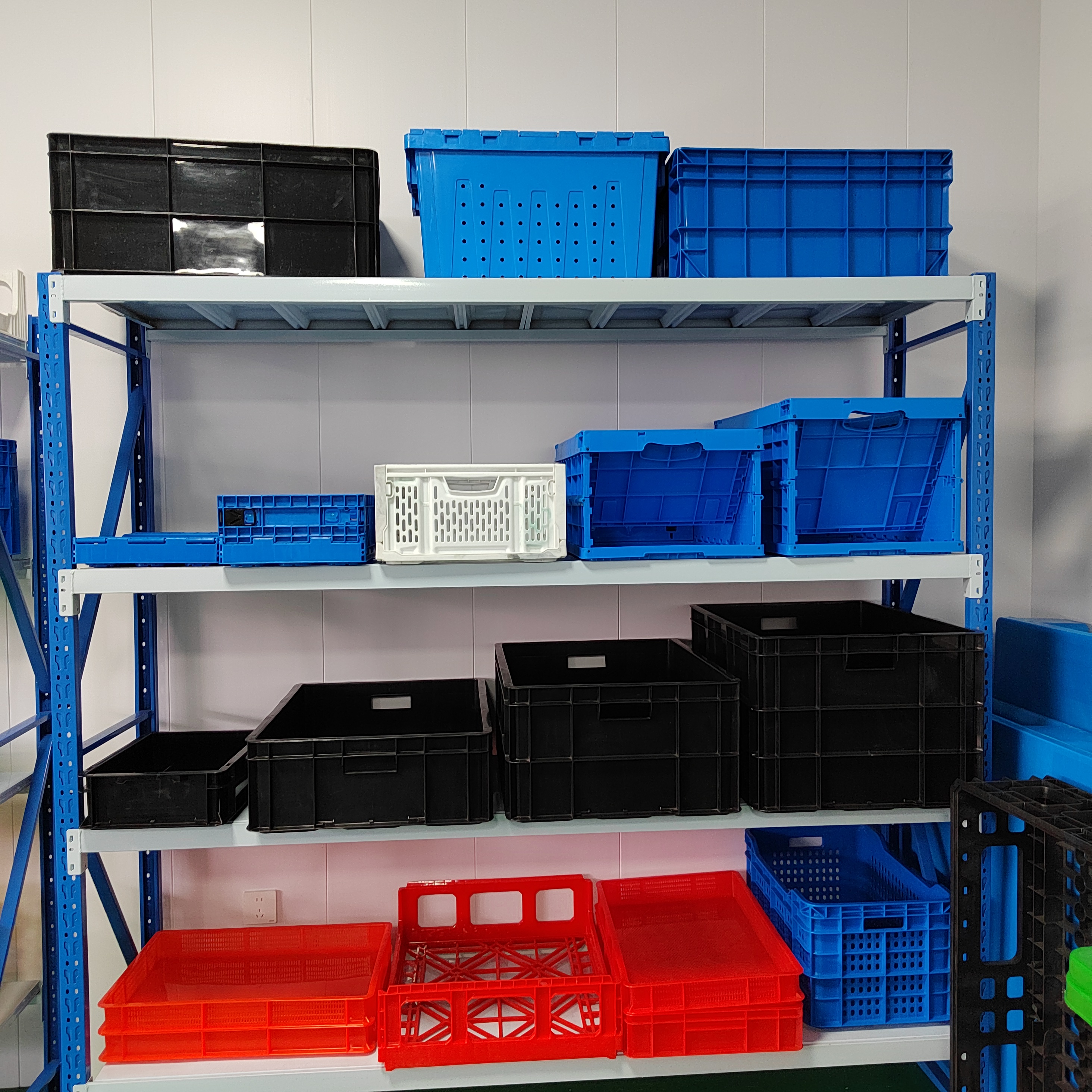

The key advantage of folding boxes lies in space efficiency: folded height reduces to 30–40% of original volume, cutting reverse logistics and warehousing costs. Target applications include:
Automotive parts plants: powertrain/transmission component distribution;
Cold-chain fresh produce: standardized fruit/vegetable/frozen goods handling;
E-commerce fulfillment: parcel sorting and consolidation bins;
Smart manufacturing: AGV-compatible totes for automated workflows.
Accordingly, mould design prioritizes stacked load capacity (≥4 layers fully loaded), forklift impact resistance, and hinge durability across -30°C to 80°C operating environments.
2. Capacity Grades: Light-Duty to Heavy-Engineering
2.1 Light-Duty Folding Box Mould (Load: 15–25 kg)
For electronics, textiles, and lightweight goods, emphasis is on thin-wall design (1.8–2.2 mm) and weight reduction. Moulds use multi-point valve-gated hot runners and aggressive cooling for 35–45 s cycles. Dedicated hinge-zone temperature loops (70–85°C) promote molecular orientation to enhance bending toughness.
2.2 Heavy-Duty Folding Box Mould (Load: 40–80 kg)
For automotive metal parts, hardware, and heavy loads, bases and sidewalls feature “grid + honeycomb” ribbing. Cavities include pre-deformation compensation to limit flatness deviation to ≤0.3‰L after HDPE/PP shrinkage. Lock housings and handles incorporate hardened inserts to resist wear from repeated folding/unfolding.
3. Core Challenge: First-Shot Hinge Integrity & Longevity
Technical differentiation centres on hinge regions: moulds must fill ultra-thin gaps (0.25–0.35 mm) completely without shear-induced degradation, while controlling post-shrinkage clearance for smooth rotation.
3.1 Hinge Gate & Flow Fingerprinting
Hinge gates use wide-fan profiles with shallow transitions, regulating melt velocity to 180–240 mm/s to prevent jetting marks and whitening. Micro-venting films (0.008–0.015 mm deep) at parting lines expel trapped air, eliminating bubble-induced cracks at hinge roots.
3.2 Coaxiality & Fold Ergonomics
Multiple integral hinges link upper/lower sections; cumulative coaxial error across all hinge pins must stay ≤φ0.075 mm to avoid binding or uneven wear. Monolithic hinge inserts with guide bushings replace split assemblies, cutting alignment variance by 60%.
3.3 Fatigue-Resistant Engineering
Hinge cooling employs “dual spiral + fountain tube” layering, slowing cooling by 15–20% relative to the body to preserve residual ductility and avoid embrittlement. Corrosion-resistant mirror steel (e.g., 1.2085/420 SS, HRC 52–55) resists wear from glass-filled compounds.
4. System Architecture & Automation Integration
4.1 Multi-Directional Core Pulling
Internal flanges and locking slots require side-core actions; large boxes (>600 L) may combine slides and lifters. Servo or hydraulic sequencing maintains stroke accuracy within 0.02 mm for consistent clasp fit.
4.2 In-Mould Degating & Automated Demoulding
Valve gates synchronize with robots; separation points hide inside folded corners to eliminate manual trimming marks. Ejection pairs lifters with air-assist valves to overcome large-area adhesion without cosmetic damage.
4.3 Vision Inspection Readiness
High-end moulds reserve camera mounting points for in-cycle detection of hinge shorts or corner sinks, feeding data back to adjust packing profiles in closed-loop quality control.
5. Material Compatibility & Processing Windows
5.1 HDPE (Primary Choice)
Strengths: Impact resistance, low-temperature toughness, excellent flexural endurance, competitive cost.
Mould adaptions: 40–60°C mould temp; rib roots radiused R2–R3 to reduce stress concentration.
5.2 PP Copolymer (Stiffness-Driven)
Strengths: Higher rigidity, superior surface gloss, improved heat resistance vs. HDPE.
Mould adaptions: 55–75°C general temp; hinge zones elevated to 80–85°C for smoother folding.
5.3 Glass-Filled PP (Heavy Loads)
Strengths: Flexural modulus 2–3× higher; outstanding stacking creep resistance.
Mould adaptions: Tungsten-carbide guides/bushings; hard-alloy nozzle tips; corrosion-resistant plating for coolant circuits.
6. Validation Framework
Before release, moulds undergo three mandatory tests:
Fold Cycle Test: 100,000 open/close cycles at ambient; no hinge fracture/jamming, effort variance ≤15%.
Stack Load Test: 4-high stacking at 1.2× rated load for 24 h; dimensional recovery ≥98%.
Low-Temp Drop Test: Empty box dropped 1.2 m on corner at -25°C; no brittle fracture, hinges functional.
7. Industry Trends: Modularity & Low-Carbon Design
New generations emphasize modularity: interchangeable side-wall and base inserts allow one frame to produce varied volumes (e.g., 480 L / 620 L / 800 L) and internal dividers, cutting development lead time by 40%. Optimized runner volume and cooling efficiency support 30–50% recycled content (rHDPE/rPP), aligning with ESG goals.
