Thin-wall Food Container Mould: High-Speed Injection & Micron-Level Precision Control

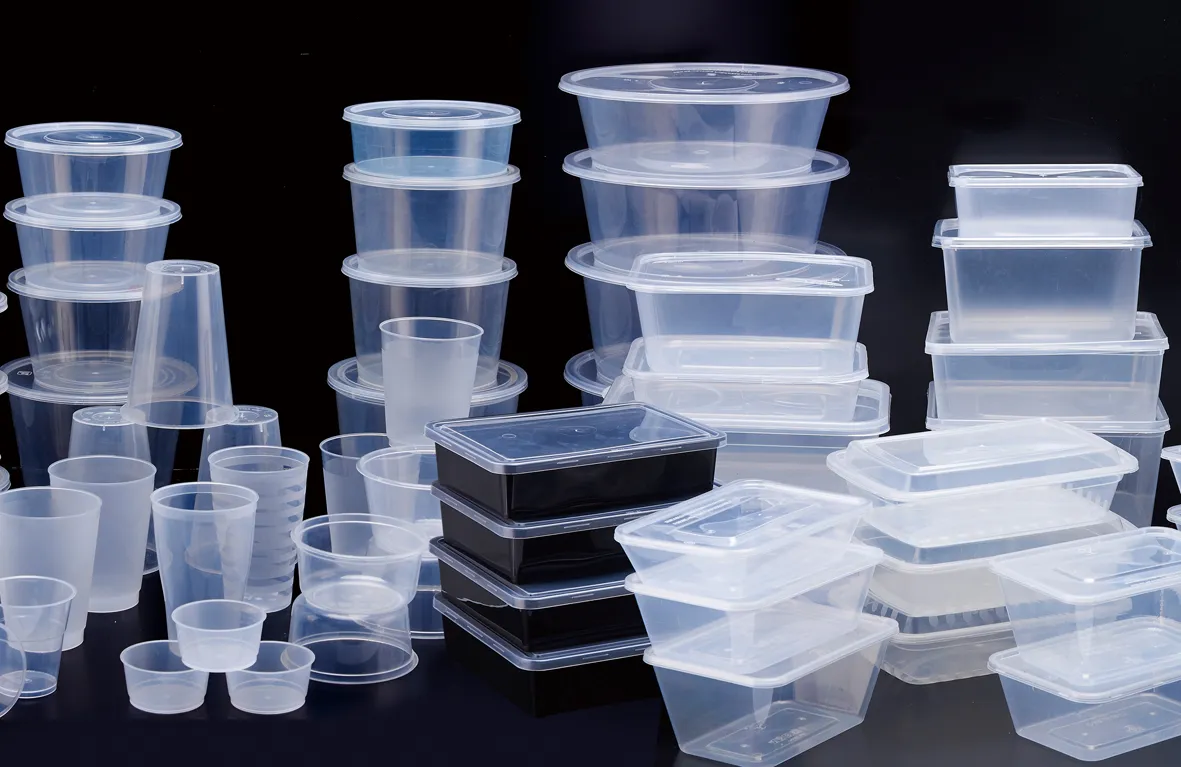

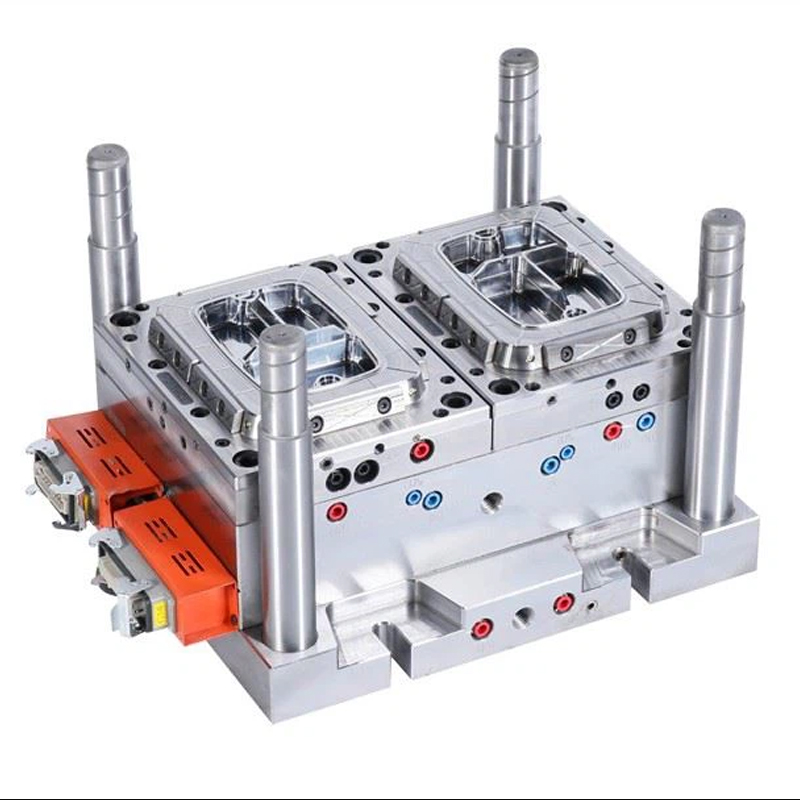

Thin-wall Food Container Mould is a core equipment category in modern high-speed injection molding, specifically engineered for producing disposable tableware, food trays, and fresh-keeping containers with wall thickness ≤0.6mm. Beyond meeting market demands for lightweight and low-cost packaging, these molds must maintain dimensional stability and hygienic safety under ultra-short cycle times—making them representative of advanced precision tooling.
1. Definition & Technical Scope
The key distinction between thin-wall molds and conventional injection molds lies in the process challenges posed by extreme thinness. Industry standards typically define thin-wall parts as those with average wall thickness ≤0.75mm and projected area ratio ≥250 cm². For food container molds, additional requirements include food-contact compliance (e.g., FDA, LFGB certifications), easy-peel lid sealing features, and stackable demolding design. To achieve production rates exceeding 30 cycles/minute, the mold must coordinate high-speed/high-pressure injection, rapid cooling, and millisecond-level ejection.
2. Innovative Structures & Core Technologies
2.1 Variable Cross-section Runners & High-shear Flow Balancing
With melt flow speeds exceeding 500 mm/s in thin-wall molding, traditional runners easily cause jetting marks and air traps. Modern thin-wall food molds adopt a torpedo nozzle + tapered main channel hybrid design, suppressing turbulence through progressive pressure reduction. Meanwhile, T-shaped wide-fan gates replace point gates to expand melt front width, ensuring swirl-free filling even at 0.3–0.5mm wall thicknesses for PP/PS/PLA materials.
2.2 Nanoscale Polishing & Micro-venting Channels
Food container inner walls require surface roughness ≤ Ra 0.4 μm to prevent bacterial adhesion. Mold cavities commonly combine electroformed copper mirror finishing with diamond paste polishing, while parting lines integrate multi-stage micro-vents 0.01–0.03mm deep. This "shallow-narrow-dense" vent layout prevents flash while expelling trapped air in milliseconds, eliminating burn marks and short shots.
2.3 Flexible Thermal Control & Zoned Cooling
Addressing thickness variations at rolled rims and base ribs, molds feature dynamic zoned temperature control: thin-wall body areas use 12–15°C chilled water for fast heat transfer, while thicker structural zones apply 35–40°C warm water to prevent sink marks. High-end molds employ conformal cooling channels that follow 3D cavity contours, limiting temperature fluctuation to within ±1°C.
3. Material-specific Engineering Strategies
Material Type | Key Mold Adaptations |
|---|
PP (Polypropylene) | Higher mold temp (60–80°C) + extended packing to compensate for crystalline shrinkage and warpage |
PLA (Biodegradable) | Low mold temp (10–25°C) + rapid cooling to suppress brittleness and enhance clarity |
PET/CPET | Hot-runner valve sequencing + IR preheating to improve flow and reduce black specks |
For new bio-based composites with high viscosity, runner draft angles increase to 8–10°, with melt buffer pockets added at convergence points to minimize shear-induced molecular degradation.
4. Smart Function Integration Trends
Next-gen thin-wall food molds are evolving toward multifunctional integration:
In-mold Labeling (IML): Embedding robot handling stations and vacuum grids in the moving half enables label-container co-molding with ≤0.05mm tolerance control.
In-line Vision Inspection: Integrated cameras detect flashes and stains during molding, triggering automatic rejection by robotic arms.
Quick-change Insert Systems: Standardized clamp-lock designs allow <15-minute replacement of rim diameter or base texture inserts for flexible small-batch production.
5. Lifecycle & Sustainable Manufacturing
Designed for ≥3 million cycles, critical components use powder metallurgy steel (e.g., ASP-23) with deep cryogenic treatment to reach HRC 58–62 hardness. With EU SUP directives taking effect, molds now support up to 30% recycled content (rPP/rPET), incorporating enhanced screw wear coatings and non-return valve seals to withstand long-term abrasive wear.
