U-shape toilet seat mould

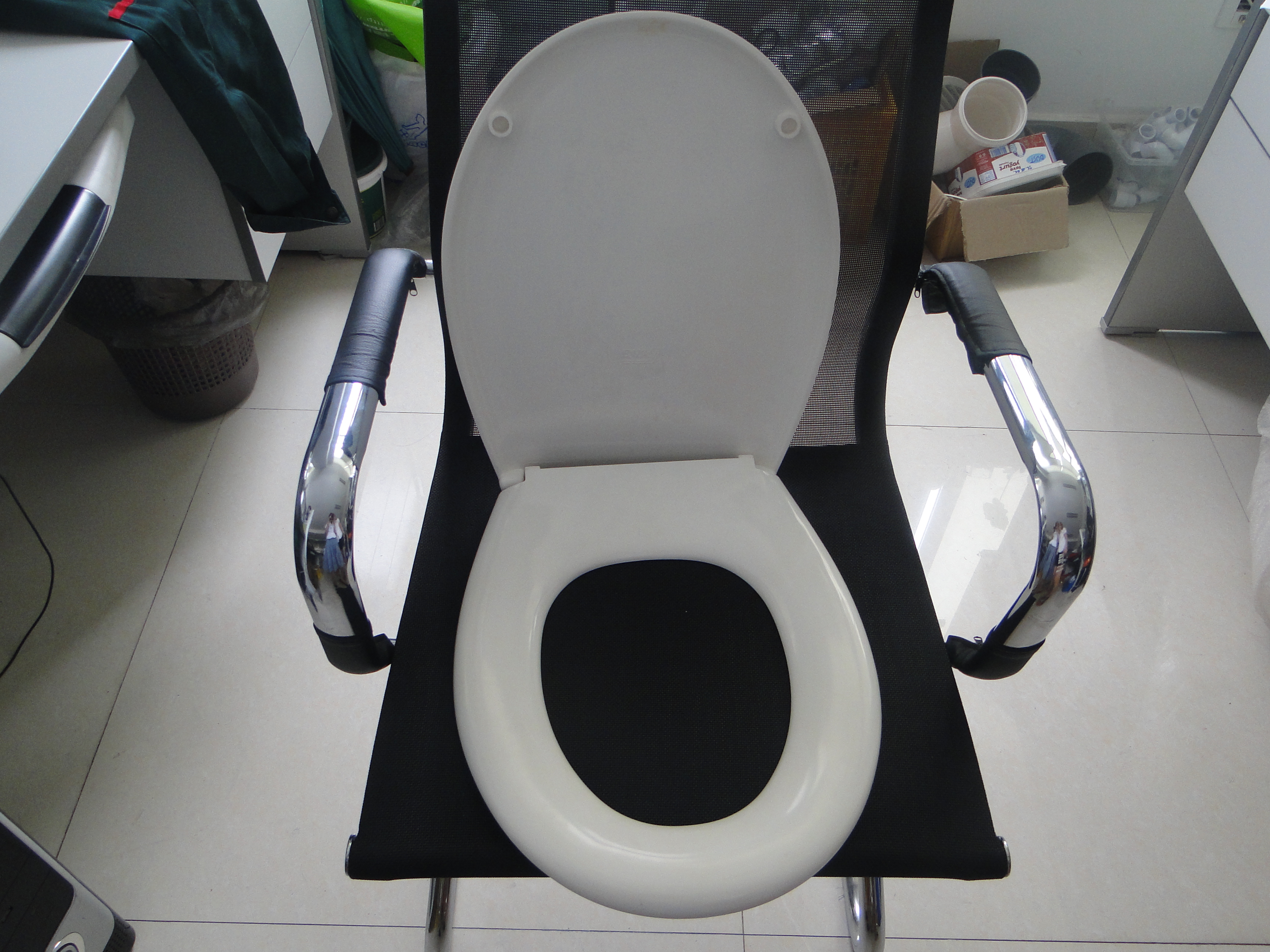

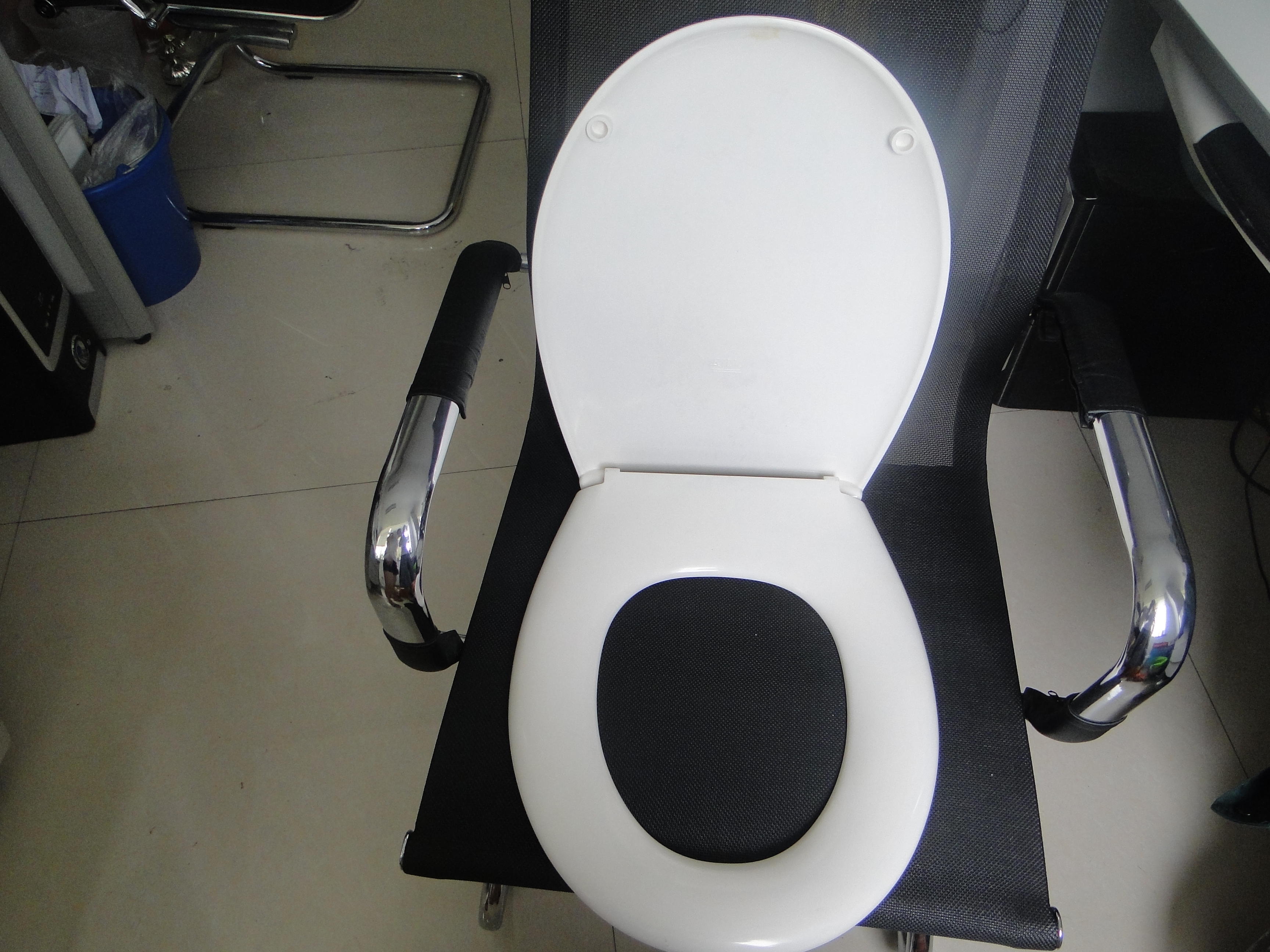

Yige Mold is a professional manufacturer of U-shape toilet seat mould, providing high-quality injection molds for PP and UF plastic toilet seats. Our molds feature precise structure, smooth surface, easy demolding, and long service life. Suitable for mass production with stable dimensions, soft closing mechanism design, and reliable after-sales support for global sanitary ware customers.
Detail

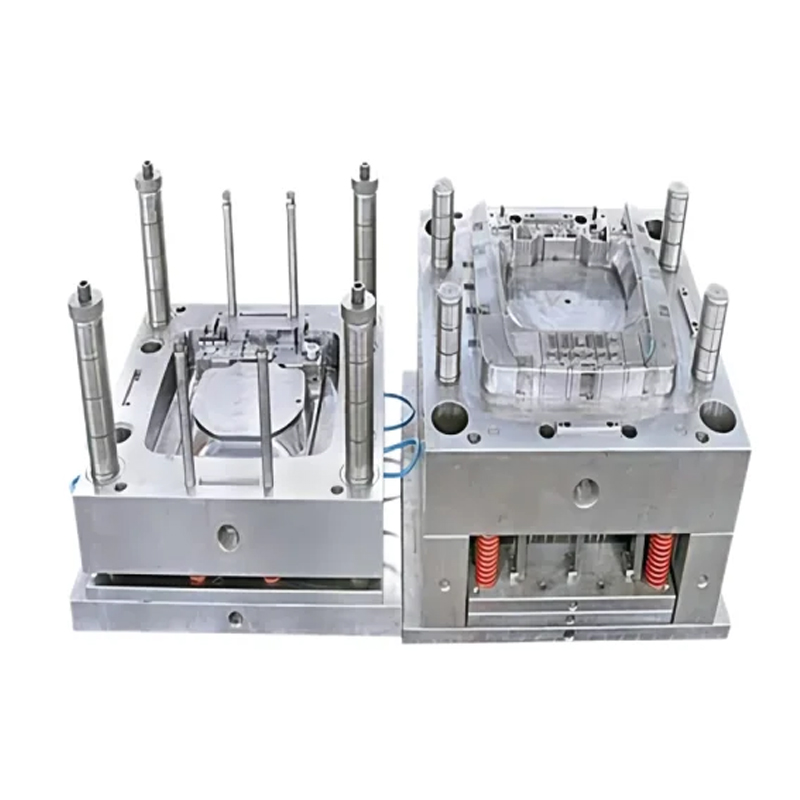

Mould Name U-shape toilet seat mould Mould Main Materia P20;718H
Mould Cavity 1Cavity Delivery Time 35-45working days

U-Shape Toilet Seat Mould: Engineering Overview

I. Product Definition & Usage Boundary

The U-shape toilet seat mould is designed for single-shot injection molding of front-open (U-notch) toilet seats, typically in ABS, PP, or antimicrobial composites, serving hospitals, nursing homes, public restrooms, and home care settings. Compared to O-ring seats, the U-shape introduces a structural discontinuity at the front notch, resulting in cantilever effects at both sides of the opening, restricted parting-line placement, and asymmetric melt flow—requiring stricter mold stiffness allocation, gating balance, and fatigue resistance. Target mold life is typically ≥500k cycles, complying with EN 997 / ASTM F1677 hygiene and chemical resistance standards.

II. Structural Architecture & Notch Stress Control

1. Cavity Topology & Parting Strategy

As a non-axisymmetric shell, the parting line follows concealed outer contours to avoid visible top surfaces. The notch zone uses a combined slider + lifter structure: sliders form the outer notch wall and lower undercut, lifters handle inner ribs and hinge slots, with dovetail interlocks for alignment. To counter bending at notch tips, arched reinforcing inserts behind the cavity transfer injection pressure to support pillars, reducing elastic deflection in cantilevered regions.

2. Gating & Melt Flow Balance

The U-notch breaks circumferential flow, creating “C-shaped” semi-wrap flow prone to high pressure at the far end and voids near the notch. The design employs dual hot-runner symmetric gating: two melt streams enter from the rear arc midline, advancing bidirectionally to meet at the notch. Valve timing adjusts (0.2–0.5 s delay on one side) to compensate for flow path differences; alternatively, single gating from the hinge pin area with tab gates redirects flow toward the notch to minimize swirl. Venting runs along parting lines, slider seams, and dead-air pockets (depth 0.018–0.026 mm, graded per ABS/PP), adding porous steel inserts at the notch apex.

3. Cooling & Shrinkage Uniformity

Thermal inertia varies: solid rear arcs cool slowly; thin notch walls cool faster. Cooling follows a “dense rear + spot-cooled notch” layout: triple-layer conformal channels in the rear arc, beryllium copper pins at notch ends, keeping ΔT ≤ ±3 °C. For PP-based soft-close designs (rigid frame + TPE edge), independent zones at soft/hard boundaries inhibit interface cracking from differential shrinkage.

III. Material Compatibility & Hygiene Lockdown

1. Resin Selection & Tool Steel Matching

  • ABS (high-gloss/antimicrobial): Excellent surface finish, paintable, but limited UV resistance; suited for indoors. Hard chrome plating (≥15 µm) enhances wear and release; runners polished to Ra 0.16 µm minimize bacterial micro-pits.


  • PP copolymer (weather/lightweight): Outdoor/humid environments; higher shrinkage than ABS requires extra packing allowance near hinge reinforcement ribs. Chloride-resistant steel grades handle long-term disinfectant exposure.


  • Antimicrobial compounds (Ag/Zn additives): Risk of catalyzed degradation mandates tight nozzle/hot-runner ΔT ≤ ±2 °C; PVD ceramic coatings protect against corrosion.


2. Process Window Refinement

Average wall thickness: 2.5–3.5 mm; local reinforcement at notch ribs up to 4.5 mm. Injection uses three stages: medium speed to avoid jetting, high speed to fill, low-frequency packing to densify thick ribs. Mold temps set by material: ABS 55–65 °C, PP 45–55 °C; antimicrobial grades use lower bounds to limit additive volatilization.

IV. Key Manufacturing Challenges & User Experience Links

1. Notch Zone Geometry Accuracy

Notch edges must be rounded (R≥2 mm) for safety; inner edges polished to Ra ≤0.32 µm to resist staining. Hinge pin holes on both notch sides require coaxiality ≤0.045 mm (slow-wire trim-two passes); bumper slots retain sharp corners for secure damping fit.

2. Durability Validation

Trials include drop-impact testing (load applied at notch end, ≥50 J), 50k open-close cycles to check hinge slot microcracks, and post-UV aging (500 h) notch deformation <0.8 mm. Silicone casting measures wall-thickness distribution at notch; deviation kept within ±0.15 mm.

V. Maintenance & Scenario-Based Iteration

Routine upkeep focuses on slider rail lubrication and bumper slot cleaning; notch shut-off misalignment checked every ~30k cycles. Newer molds support quick-change inserts: same baseplate adapts between standard and slow-close soft-edge versions (<6 h changeover). High-end variants offer embedded RFID slots and optional antibacterial agent monitoring probes for smart bathroom tracking. Medical versions optimize draft angles for autoclave resistance (134 °C steam sterilization cycles).

VI. Differentiated Value Summary

We move beyond simple notch replication to redesign around user pain points:

  • ✅ Reinforced notch structure with stress redirection prevents long-term fracture.


  • ✅ Balanced flow and weld-line positioning eliminate sinks and weak joints near notch.


  • ✅ Surface treatment and tolerance chains balance hygiene cleanability with durability.
