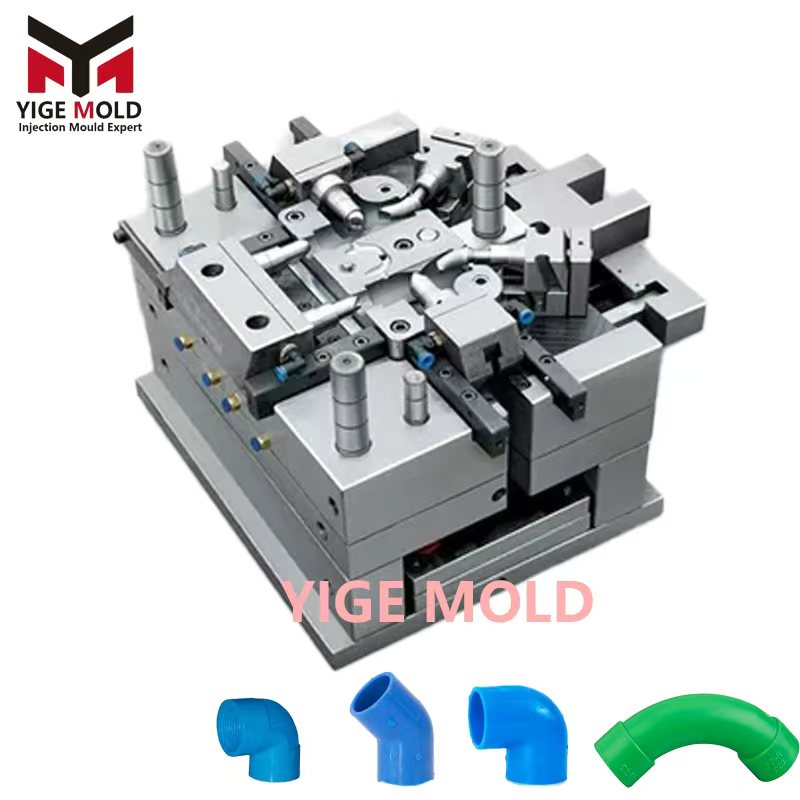

Water Inlet Pipe Elbow Mold

Water Pipe Elbow Mold: The Industrial Core of Flow Path Shaping and an Analysis of Polymorphic Molding Processes

The water pipe elbow mold is a critical piece of process equipment in the manufacturing of fluid conveyance system components. Its core mission is to precisely form the connectors that change pipeline direction. Unlike universal injection molds, elbow mold design and manufacturing are tightly centered on core requirements such as "hollow tubular body," "constant wall thickness," "hydrodynamic performance," and "multi-specification adaptability." It represents a high degree of integration of materials science, fluid dynamics, and precision manufacturing technology.

I. Core Logic of Mold Design: Flow Path Engineering Beyond Geometric Replication

Elbow mold design is far from a simple reproduction of the elbow's internal and external contours; it is an engineering process of finding optimal solutions under multiple physical constraints.

1. Rheological Design of the Cavity System:

   • Melt Flow Balance: As plastic melt flows through the curved section of an elbow, the longer flow path and greater resistance on the outer radius can easily lead to uneven cooling and flow hesitation. The mold's runner and gate system must employ asymmetrical compensation design, such as fan gates or multi-point valve-gated hot runner systems, to precisely control the fill speed and pressure in different zones. This ensures the melt front fills the cavity uniformly and synchronously, resulting in a part with consistent wall thickness and low internal stress.




   • Management of Anisotropic Shrinkage: Due to non-uniform molecular and fiber (e.g., glass-reinforced materials) orientation in the curved section, the elbow undergoes complex, non-uniform radial shrinkage during cooling. Mold designers must rely on empirical data and CAE mold flow analysis to preset differential shrinkage rates, applying reverse compensation (scaling) to the cavity dimensions. This ensures the molded elbow, after cooling, meets tolerance requirements for critical dimensions (e.g., center-to-face distance, angle).







2. Topology Optimization of the Cooling System:

   The cooling efficiency of an elbow mold directly determines production cycle time and product roundness. Its cooling channels must closely follow the complex 3D contour of the cavity to achieve equidistant, efficient heat dissipation. For tight radius (R-angle) areas where straight channels are difficult to implement, advanced technologies like 3D-printed conformal cooling channels, special-shaped baffles/bubblers, or high-conductivity inserts (e.g., beryllium copper) are often used. These eliminate local hot spots, preventing part warpage, ovality beyond specification, or surface sink marks caused by uneven cooling. The layout of cooling channels must match the stress distribution of the elbow, making it the lifeline for controlling cycle time and dimensional stability.




3. Spatial Deconstruction of the Ejection System:

   The complex core-packing force of an elbow part makes ejection a significant challenge. Molds typically employ multi-segment composite cores or hinge-type (side-action) side-core pulling mechanisms. Key design considerations include:

   • Strategic Selection of Parting Line and Core-Pull Direction: The parting line should be placed to minimize undercuts and facilitate venting. The core-pull direction must align with the normal direction of the elbow's centerline, ensuring the core can be withdrawn along a precise path without damaging the part's inner surface.




   • Precise Control of Action Sequence: When multiple cores and sliders act in concert, strict sequencing must be achieved through mechanical interlocks, angled leader pins, or hydraulic cylinders to avoid movement interference. The return mechanism must ensure all moving components reset accurately when the mold closes, maintaining cavity sealing precision.







II. Precision Realization in Mold Manufacturing: Multi-Process Composites and Specialized Machining

The manufacturing precision of an elbow mold is directly transferred to the product's sealing and pressure-bearing capabilities. Its process chain combines traditional and cutting-edge technologies.

1. High-Precision Machining of Cavities and Cores:

   • Five-Axis Machining Centers are the foundation for manufacturing complex elbow mold cavities/cores. They can complete roughing and finishing of multi-surfaced, deep-cavity, and undercut areas in a single setup, ensuring uniformity of geometric tolerances.




   • Electrical Discharge Machining (EDM) is used for corner cleaning, fine contours in deep/narrow slots, and high-hardness areas. The precision of the special-shaped electrodes manufactured for forming the elbow's inner radius directly determines the final formed surface quality.




   • Precision Grinding and Polishing: To ensure low fluid flow resistance and prevent scaling, the elbow's inner wall requires extremely high surface finish (mirror or specific roughness). This necessitates high-precision CNC grinding of the core, followed by manual or ultrasonic polishing, especially for hard-to-reach curved inner surfaces.







2. Specialized Processes and Surface Enhancement:

   • Manufacture of Conformal Cooling Channels: Utilizing metal 3D printing (Selective Laser Melting - SLM) technology, three-dimensional spiral cooling channels—optimized via thermal analysis and perfectly conforming to the cavity surface—are integrated and formed as one piece with the mold insert. This achieves cooling efficiency and uniformity unattainable with traditional machining.




   • Surface Enhancement Treatments: For corrosive plastics like PVC or materials with flame retardant additives, the mold cavity often undergoes treatments like nitriding or PVD (Physical Vapor Deposition) coating. This increases surface hardness, wear resistance, and corrosion resistance, extending mold life in harsh processing environments.







III. Material Adaptability and Standardized Response of Molds

The diversity of pressure ratings, media, and standards in piping systems demands a high degree of specialization and flexibility from molds.

1. Material-Specific Design Considerations:

   • For PVC/CPVC: Focus is on their poor thermal stability and narrow processing window. The mold's runners should be short and large, gate sizes optimized to reduce shear heat, and cooling must be highly efficient to shorten the cycle.




   • For PEX/PERT and other thermoplastics: Their memory effect and shrinkage behavior are unique. Mold design must precisely control molding temperature and cooling rate, and may need to integrate sizing and cooling jigs for dimensional stabilization of the part post-ejection.




   • For Glass Fiber Reinforced Materials: To reduce wear on the screw and cavity, runners and gates require wear-resistant steel, and smooth transitions are designed to minimize fiber breakage and maintain product strength.







2. Modular and Quick-Changeover Design:

   To meet demands for different pressure ratings (e.g., SDR11, SDR17.6), angles (45°, 90°, 180°), and sizes (DN20-DN400), modern elbow molds often employ modular design. By exchanging standardized core inserts, cavity inserts, and end-forming modules, a single mold base can be adapted to produce multiple similar-sized products. This greatly improves equipment utilization and market response speed.




Conclusion: The Precision Vessel that Gives Form to Flow

The water pipe elbow mold is the ultimate transducer that converts the directional requirements of engineering fluid flow into physical fittings. It is not merely a shaper of plastic, but a foundation for flow efficiency, a guardian of system sealing, and a reinforcer coexisting with pressure. Within every elbow that ensures smooth directional change of water flow, the precise geometry and smooth walls imparted by the mold are inscribed. From domestic water supply and drainage to industrial pipeline networks, behind them lies the mold engineer's profound understanding and precise control of material behavior, fluid characteristics, and manufacturing limits. The evolution of such molds continuously drives piping systems toward higher efficiency, more reliable sealing, and easier installation. They are the indispensable, yet often overlooked, precision cornerstone within fluid conveyance infrastructure.
