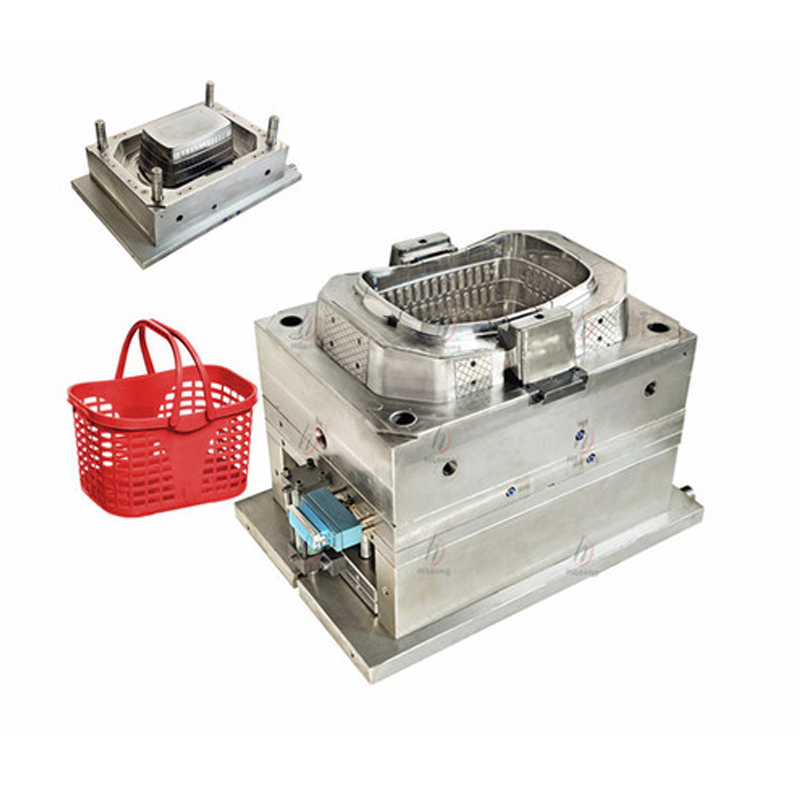

basket mould

Introduction to Basket Moulds

Basket moulds are core tooling equipment used for the mass production of various plastic baskets (such as storage bins, laundry baskets, fruit baskets, and shopping baskets) via injection moulding. These products are typically characterized by hollow structures, perforated sidewalls, and integrated handles, which present key design challenges for the moulds. The primary focus is on achieving high-efficiency production while solving core issues like deep-cavity ejection and forming complex side openings.

1. Primary Process and Materials

• Primary Process: Injection Moulding.




• Common Materials: Polypropylene (PP), Polyethylene (PE), and their modified compounds. These materials offer low cost, good toughness, and light weight, making them ideal for baskets that require flexibility and durability.




2. Core Design Challenges and Solutions

Due to the specific features of basket products, mould design must address the following key challenges:

1. Forming and Ejecting Perforated Sidewalls (Mesh/Holes):

   • Challenge: The numerous dense through-holes or mesh structures create a complex core (the mould insert forming the basket's interior) and generate significant wrapping force from the solidified plastic, making ejection difficult.




   • Solutions:

     • Optimised Draft Angles: Mesh sidewalls require relatively large draft angles (typically >2°) to ensure each "rib" can cleanly release from the core.




     • Robust Ejection System: Dense arrays of ejector pins or ejector blocks are strategically placed at the bottom and key sidewall locations to provide uniform, powerful ejection force.




     • Optimised Venting: Mesh structures easily trap air. Well-designed venting channels on the parting line and core are essential to prevent burns or short shots.










2. Deep-Cavity Structure and Ejection:

   • Challenge: The considerable depth of baskets creates a deep cavity, demanding significant mould opening stroke and ejection stroke from the machine, while also increasing ejection resistance.




   • Solutions:

     • Adequate Stroke Design: The mould height and injection machine specifications must accommodate the product depth.




     • Enhanced Cooling: The deep cavity lengthens cooling paths. Multi-level circulating cooling channels surrounding the core are crucial for uniform, rapid cooling to prevent warpage and shorten cycle times.










3. Forming Handles or Complex Features:

   • Challenge: Integrated handles or features like side grooves/hooks create "undercuts" that prevent straightforward ejection upon mould opening.




   • Solutions:

     • Slide Mechanisms: The most common solution. Driven by angled leader pins or hydraulic cylinders, slides move sideways during mould opening to clear the undercut, allowing part ejection.




     • Cylinder Actuation: For large handles or features requiring substantial side-core movement, hydraulic cylinders offer more stable and reliable actuation.










3. Typical Mould Structure

1. Dominant Structure: Three-Plate Mould or Simplified Hot Runner Mould.

   • Reason: Baskets are typically top-open, making the bottom centre (pin-point gate) or handle root ideal gate locations for aesthetics and automatic degating. This usually necessitates a three-plate structure or a hot runner system.







2. Cavity Layout: Depending on basket size, layouts are often single-cavity (for large laundry baskets) or double-cavity (for medium storage bins), balancing production rate with mould cost.




3. Gating System: Pin-point gates or hot runners are used to minimise waste and enable automated production.




4. Key Product Design Features (Achieved via the Mould)

• Rib Design: A crisscross pattern of reinforcing ribs on the basket's interior bottom and sidewalls significantly increases structural strength, prevents deformation, and saves material.




• Anti-Slip Bottom: The cavity bottom can be textured with anti-slip patterns or designed with anti-slip feet.




• Nesting/Stacking Design: For efficient storage and transport, baskets are often designed to nest or stack. The mould must precisely form the nesting lip on the top rim and the stacking ledge on the bottom.




• Surface Finish: The cavity can be textured to achieve a matte, woven-like, or other finish, enhancing product appeal and hiding minor flaws like parting lines.




5. Manufacturing and Industry Trends

• Manufacturing Focus: Machining the core is a major challenge, requiring CNC machining centres and EDM to precisely create the mesh structure, followed by complex polishing. The fitting precision of slide mechanisms is critically high.




• Industry Trends:

  • Functional Integration: Moulds are now producing multi-functional baskets with lids, dividers, or wheels.




  • Material Innovation: Adapting to the use of recycled plastics (PCR) places new demands on mould wear resistance and venting.




  • Lightweighting vs. Strength: Technologies like Gas-Assisted Moulding are being explored to further reduce wall thickness and save material while maintaining strength.







In summary, basket moulds are a prime example of injection moulds designed for products with specific geometric features. Their technical essence lies in achieving stable, efficient, and automated production of complex parts through ingenious slide mechanisms, reinforced ejection and cooling systems, and precision machining for deep-cavity meshes. They exemplify the perfect integration of practical household utility with modern manufacturing technology.
