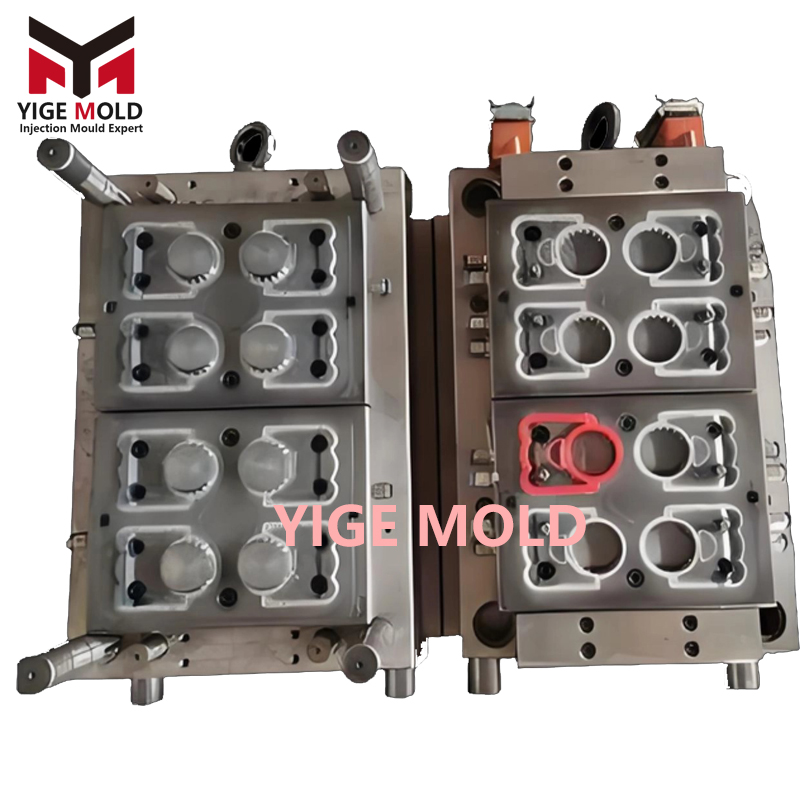

Technical Analysis of Plastic Bottle Handle Molds
I. Product Classification and Market Applications
1. Product Type Classification
Plastic bottle handle molds can be categorized into three main types based on bottle capacity and functional requirements:
By Capacity:
Small handles: for 1-2L beverage bottles
Medium handles: for 3-5L edible oil containers
Large handles: for 5-10L drinking water containers
Extra-large handles: for 18.9L bottled water
By Structure:
Snap-fit handles: designed to fit with bottle caps or necks
Hanging handles: for retail packaging display
Integrated handles: molded as one piece with the bottle
Adjustable handles: multifunctional handles with adjustable length
By Function:
Standard handles: basic load-bearing function
Anti-slip handles: with special texture design
Foldable handles: space-saving collapsible design
Measuring handles: integrated measuring function
2. Market Application Fields
Beverage industry: carbonated drinks, juices, tea beverages
Edible oil industry: soybean oil, peanut oil, olive oil
Daily chemical industry: laundry detergent, shampoo, shower gel
Industrial field: chemical liquids, lubricants
Drinking water industry: bottled water, mineral water
II. Mold Structure Design Features
1. Cavity Layout Optimization
Plastic bottle handle molds typically use multi-cavity designs to improve production efficiency:
Handle Type | Common Cavity Count | Cavity Arrangement | Production Efficiency (cycles/hour) |
|---|
Small handles | 8-16 cavities | Rectangular arrangement | 800-1200 |
Medium handles | 4-8 cavities | Circular arrangement | 400-800 |
Large handles | 2-4 cavities | Linear arrangement | 200-400 |
2. Core Pulling Mechanism Design
Special core pulling mechanisms are required based on handle hook structures:
Snap-fit Structure Core Pulling:
Slider core pulling → for external snap-fitsLifter core pulling → for internal snap-fitsDelayed core pulling → for complex undercuts
Living Hinge Core Pulling:
Hydraulic or pneumatic drive
Core pulling angle: 15-45 degrees
Core pulling stroke: 20-80mm
3. Gating System Innovations
Special gating system design for the elongated structure of handles:
Gate Location Selection:
Center gate: suitable for symmetrical handle structures
Edge gate: suitable for handles with hooks
Submarine gate: suitable for handles with high appearance requirements
Runner Balance Design:
H-type or X-type runner layouts
Runner dimensions: Φ4-8mm
Cold runners or simple hot runners
4. Cooling System Optimization
Special cooling system design to address uneven wall thickness:
Zoned Cooling Strategy:
Hook area: enhanced cooling with independent circuits
Grip area: moderate cooling with standard water channels
Connection area: light cooling to prevent excessive shrinkage
Cooling Channel Parameters:
III. Material Selection and Process Control
1. Common Material Characteristics
Material Type | Density (g/cm³) | Shrinkage (%) | Operating Temp. (°C) | Features and Applications |
|---|
HDPE | 0.94-0.96 | 2.0-3.0 | -50~80 | Good toughness, low cost, widely used |
PP | 0.90-0.91 | 1.5-2.5 | 0~100 | Good chemical resistance, lightweight |
LDPE | 0.91-0.93 | 2.5-3.5 | -70~70 | Good flexibility, anti-slip handles |
ABS | 1.03-1.06 | 0.4-0.7 | -20~80 | High strength, good appearance |
TPE | 0.90-1.20 | 1.5-3.0 | -40~100 | Good elasticity, comfortable grip |
2. Process Parameter Settings
Typical Process Parameters for HDPE Handles:
Drying conditions: 80°C × 2-3 hours
Barrel temperature: 180-220°C
Nozzle temperature: 200-210°C
Mold temperature: 30-50°C
Injection pressure: 60-100MPa
Injection speed: Medium (to prevent jetting)
Packing pressure: 30-50MPa
Packing time: 8-15 seconds
Cooling time: 10-25 seconds
Cycle time: 25-45 seconds
Key Process Control Points:
Injection speed control: avoid excessive speed causing jet marks
Packing pressure optimization: ensure complete filling of hook areas
Cooling time adjustment: zoned control based on wall thickness differences
IV. Manufacturing Process Technology
1. Cavity Machining Process Flow
Step 1: Material preparation → Select P20 or 718H mold steelStep 2: Rough machining → CNC milling, 0.5mm allowanceStep 3: Heat treatment → Quenching and tempering to HRC30-34Step 4: Semi-finishing → High-speed milling, 0.15mm allowanceStep 5: Finishing → Precision machining to final dimensionsStep 6: Polishing treatment → Graded polishing based on area requirementsStep 7: Texture processing → Etching or spark erosionStep 8: Assembly and debugging → Mold fitting, trial molding, adjustments
2. Special Structure Machining
Hook Area Machining:
Use slow wire EDM for dimensional accuracy
Surface polishing to Ra0.4μm to reduce friction
Nitriding treatment when necessary to improve wear resistance
Living Hinge Machining:
Use 5-axis machining centers
Thin wall thickness control: 0.8-1.2mm
Fitting clearance: 0.02-0.05mm
3. Surface Treatment Technology
Etching treatment: Depth 0.05-0.15mm, increases grip friction
Polishing treatment: Appearance surfaces polished to below Ra0.1μm
Coating treatment: DLC coating improves wear resistance
Plating treatment: Decorative surface treatment
V. Quality Control Standards
1. Dimensional Accuracy Requirements
Hook inner diameter tolerance: ±0.05mm
Handle length tolerance: ±0.2mm
Wall thickness uniformity: deviation ≤15%
Hinge area clearance: 0.1-0.3mm
2. Mechanical Performance Testing
Load Testing:
Small handles: ≥5kg static load test
Medium handles: ≥10kg static load test
Large handles: ≥15kg static load test
Test duration: 24 hours without deformation
Fatigue Testing:
Cycle count: 1000+ cycles
Test frequency: 10-20 cycles/minute
Test conditions: 80% of rated load
Environmental Testing:
High temperature test: 60°C × 48 hours
Low temperature test: -20°C × 24 hours
Temperature cycling: -20°C~60°C, 10 cycles
3. Appearance Quality Standards
Surface free of flash and burrs
No obvious weld lines or flow marks
Uniform color, no color difference
Clear texture, comfortable grip
VI. Innovative Technology Applications
1. Quick Mold Change System
Standardized interface design
Mold change time controlled within 15 minutes
Automatic positioning accuracy: ±0.02mm
2. Intelligent Monitoring System
Built-in pressure sensors in molds
Real-time monitoring of cavity pressure changes
Automatic adjustment of process parameters
3. Energy-saving Technology Applications
Rapid thermal cycling technology
Application of efficient thermal insulation plates
Servo motor energy-saving systems
4. Environmental Protection Technology
Reduction of runner system waste
Use of recyclable materials
Optimization of cooling systems to reduce energy consumption
VII. Typical Case Studies
Case 1: 5L Edible Oil Container Handle Mold
Product Requirements:
Mold Features:
4-cavity design, H-type runner layout
Slider core pulling for snap-fit structure
Surface etching depth: 0.1mm
Technical Parameters:
Mold dimensions: 600×500×400mm
Cycle time: 35 seconds
Daily output: 8,000-10,000 pieces
Mold lifespan: 1.5 million cycles
Case 2: 18.9L Bottled Water Handle Mold
Product Requirements:
Mold Features:
Technical Parameters:
Material: HDPE + 20% calcium carbonate
Mold temperature: 40-60°C
Injection pressure: 100-120MPa
Cooling time: 25-35 seconds
VIII. Maintenance and Management
1. Daily Maintenance
Clean mold surfaces each shift
Check lubrication of core pulling mechanisms
Clean cooling channels
Record production abnormalities
2. Regular Maintenance
Every 50,000 cycles: comprehensive inspection and cleaning
Every 100,000 cycles: replace wear parts
Every 300,000 cycles: re-polish cavities
Every 500,000 cycles: comprehensive overhaul
3. Troubleshooting
Common Issues and Solutions:
Handle hook breakage
Visible sink marks
Ejection difficulties
