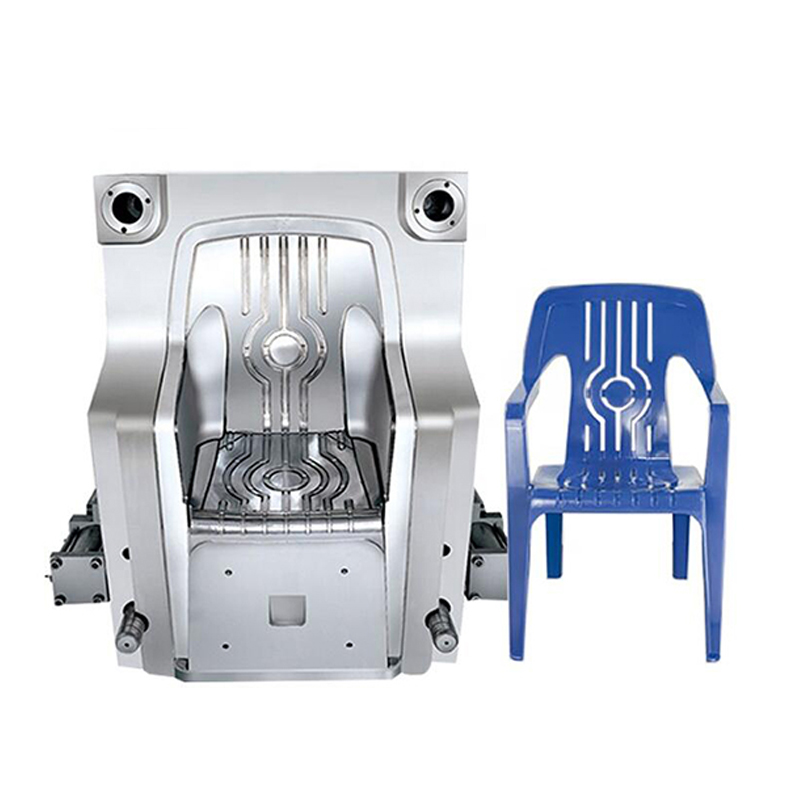

Overview of Plastic Backrest Chair Mould Design and Manufacturing
I. Scope and Application Context

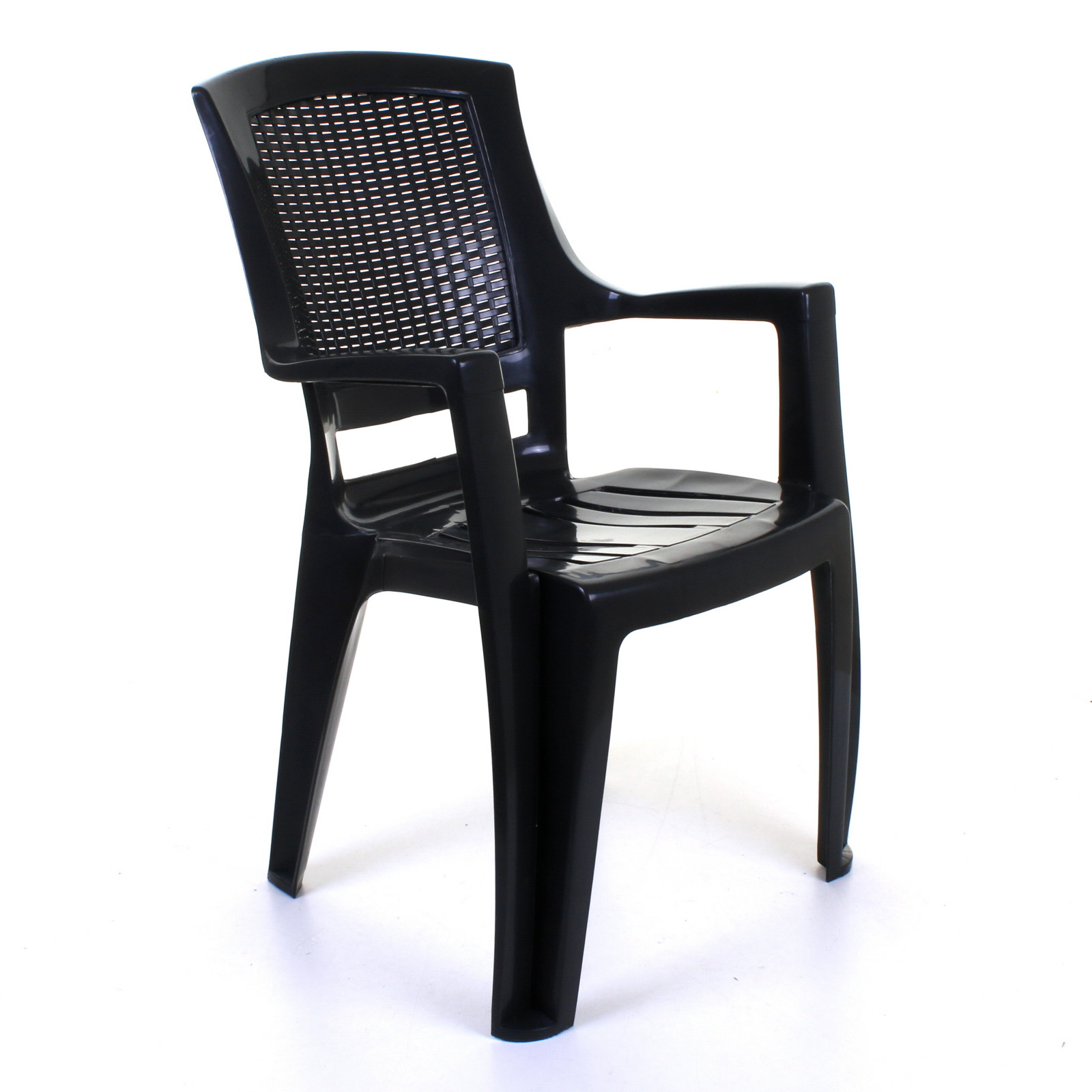

A plastic backrest chair mould is a dedicated injection moulding tooling system for mass-producing contoured backrest components used in office chairs, dining chairs, outdoor seating, and similar products. Its core function is to accurately reproduce complex ergonomic surfaces and structural features while ensuring dimensional stability across high-volume cycles. With increasing demand for lightweight and thin-wall designs, modern backrest moulds must balance high productivity with minimal warping, and support advanced processes such as gas-assisted or stack-mould configurations where required.
II. Typical Structure and Functional Modules
1. Cavity System
Backrest parts typically feature freeform surfaces, often implemented via monolithic or insert-based cavity blocks. Monolithic cavities offer higher rigidity for small-to-medium runs; segmented inserts simplify venting and maintenance, especially in deep rib areas. The parting line should avoid primary aesthetic surfaces, following silhouette edges or hidden profiles. Undercuts—such as hook slots or side openings in stiffening ribs—require side cores or lifters. For feeding, hot-runner systems combined with cold runners are standard; multi-point gating ensures uniform fill. Material flow properties dictate gate type: PP/PE commonly use edge or submarine gates, while ABS/PC benefit from fan or film gates to reduce shear heating.
2. Cooling and Temperature Control
Large projected areas and uneven wall thickness make thermal management critical. Cooling layouts follow conformal channels + zonal control: dense circuits in core regions, independent loops at edges and bosses. Conformal cooling tubes or beryllium copper inserts accelerate heat extraction in deep sections. Temperature gradients should be held within ±3 °C to prevent sink marks or stress whitening. For glass-filled materials (e.g., PA+GF), anisotropic shrinkage due to fiber orientation may require asymmetric cooling to compensate for warp.
3. Ejection and Reset
Curved surfaces and through-holes necessitate balanced multi-point ejection: φ6–10 mm round ejector pins along main ribs, blade pins in thin zones, and stripper plates or air poppets for large flat regions. Return pins and early-return mechanisms must operate reliably to avoid damage during mold closing. Some two-shot backrest moulds integrate rotary platens or sliding conversions for overmolding soft/hard combinations or dual-color finishes in a single cycle.
III. Material and Process Compatibility
1. Common Resin Characteristics
PP/EPDM blends: Good impact and weatherability, widely used for outdoor chairs; fine texture finish helps hide flow lines.
ABS: High gloss, paintable, common in office chairs; requires strict pre-drying due to hygroscopicity.
Talc-filled polypropylene: Higher stiffness at lower cost, but increases abrasive wear—tool steel needs enhanced surface durability.
Nylon-based composites: Excellent strength, sensitive to nozzle temperature; melt thermal history must be tightly controlled.
2. Process Window Optimization
Adopt staged injection: slow initial speed to clear gates, high-speed filling to ensure weld-line strength, then reduced packing to limit flash. Pack pressure follows a step-down profile aligned with gate freeze time, supported by mold-temperature controllers maintaining material-recommended ranges (e.g., ~50–70 °C for ABS, ~40–60 °C for PP). For long-flow paths, CAE simulation identifies air traps early; vent slots (depth ~0.02–0.03 mm) can be added at rib ends.
IV. Key Machining Challenges and Solutions
1. Freeform Surface Accuracy
3D backrest surfaces are defined by multiple cross-section curves. After CNC roughing, allowance is left for five-axis finishing, followed by EDM corner cleaning and manual polishing to target texture (mirror/matte/etched). Critical locating holes are machined via jig grinding or slow wire-EDM to IT7–IT8 tolerances. Assembly references align to mold center or guide-pin datums to minimize stack-up error.
2. Distortion vs. Service Life Trade-offs
P20 or 718H steels hardened to HRC 30–36 after quenching and tempering are typical; large plates undergo stress-relief annealing to prevent aging distortion. Sliders and angle lifters use vacuum-hardened H13 (~HRC 48–52) for wear and galling resistance. Self-lubricating bronze bushings or ball bearings on guide pillars reduce long-term friction losses. Trial runs focus on clamp-force distribution and cavity-pressure peaks; support pillars are added if platen deflection is observed.
V. Maintenance and Cost Considerations
Routine upkeep includes carbon buildup removal, seal inspection, and lubrication of moving elements. Every ~50k cycles, parting surfaces undergo preventive regrinding to realign shutoff gaps. Quick-change interfaces for consumables (ejector pins, heaters, etc.) cut downtime during design phase. For high-volume orders, stack molds or multi-cavity layouts increase output density within press tonnage limits, lowering per-part cost.
VI. Emerging Trends Brief
Digital delivery is becoming standard: Model-Based Definition (MBD) packages integrate 3D geometry, GD&T, and process parameters to drive smart factory scheduling directly. As additive manufacturing matures, conformal cooling channels no longer constrained by drill paths can shorten cycle times by ~15–25%. Bio-based and recycled resin blends are rising, requiring improved corrosion resistance in tool steels to handle evolving material chemistries.
