24-Cavity Cap Mould: High-Density Synchronization & Fine-Seal Engineering

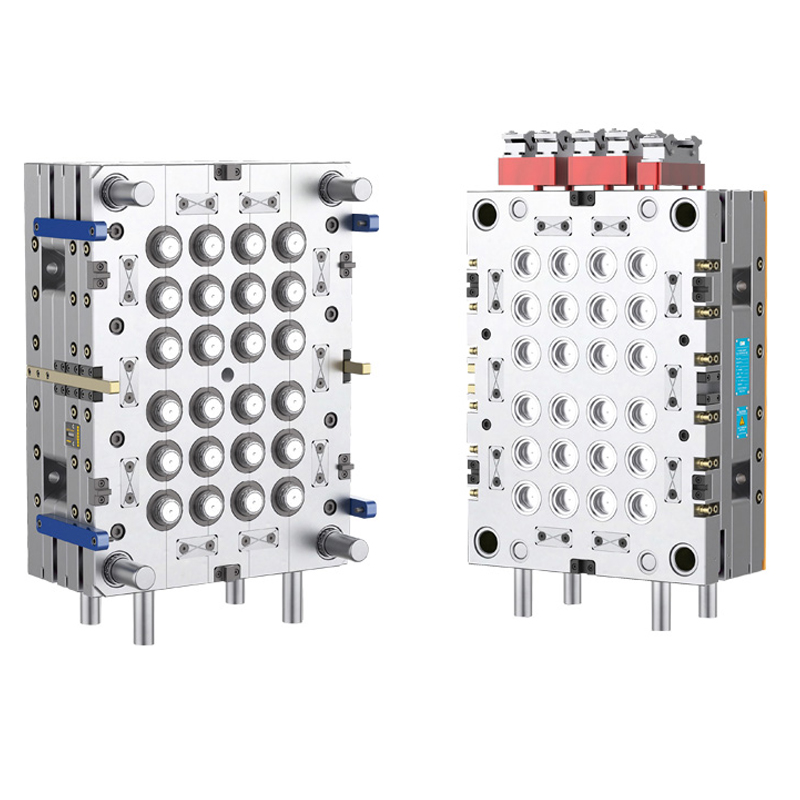

A 24-cavity cap mould is a high-output core tooling solution in beverage packaging, designed for large-volume orders with a 1×24 array layout that maximizes output while maintaining single-cavity precision. Unlike general-purpose cap moulds, it must handle the high-shear sensitivity of food-grade resins and geometric constraints of thread demoulding—representing a concentrated application of multi-physics coupled design.
1. Positioning & Performance Threshold

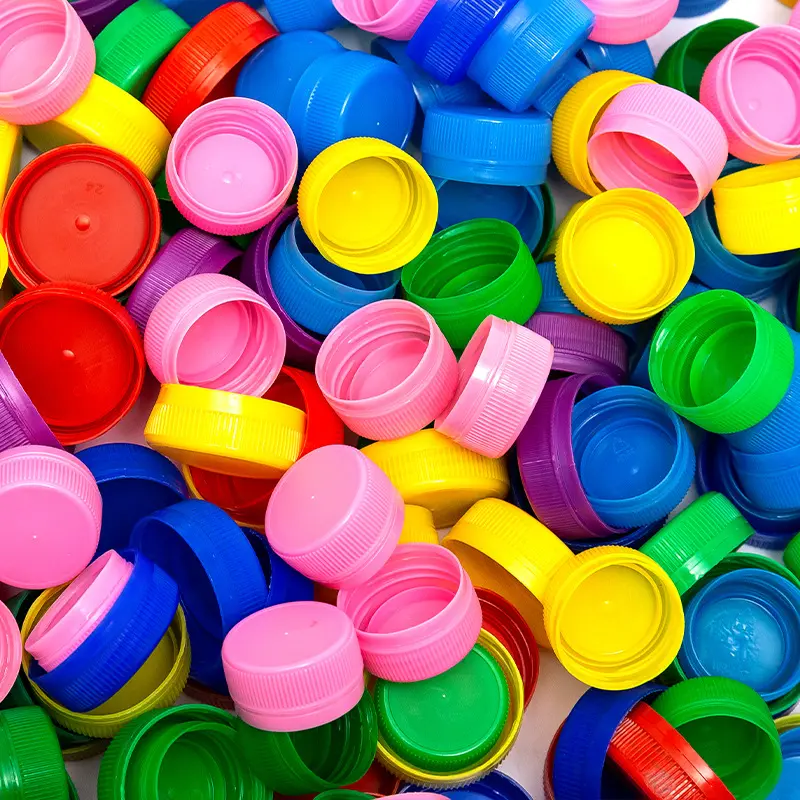

Cavity count selection balances throughput and accuracy: 24 cavities sit at the mid-high volume threshold—compatible with mainstream high-speed injection machines’ shot capacity and platen size, without the flow imbalance or uneven cooling common in higher-cavity layouts. For caps (2–5g each) with fine details (tamper-evident rings, threads, break-off grooves), performance metrics are far stricter than consumer parts: dimensional CV ≤0.8%, torque transmission error ±0.2 N·m, and continuous production defect rate <50 ppm.
2. High-Density Layout & Runner Optimization
2.1 Circular Symmetry & Hot Runner Balance
The 24 cavities typically use a 4×6 rectangular or triple-circular array, paired with a three-stage hot runner (main nozzle → manifold → valve gate) to create equal-length, equal-resistance flow paths. The challenge is minimizing temperature variance between center and edge cavities: embedded heaters and PID zoning limit nozzle tip temperature variation to ±1.5°C, keeping melt arrival time difference <0.02 s to eliminate weight/color inconsistency.
2.2 Variable Trapezoidal Runners & Shear Heat Control
To avoid thermal degradation of PP/HDPE under high shear, the primary runner uses a large-radius funnel transition, while secondary runners adopt rounded-trapezoid (not semicircular) cross-sections to reduce stagnation. Diameters taper gradually (center φ7 mm → end φ5.2 mm), balancing fill pressure and shear heat to prevent speckles or haze near cap openings.
3. Thread Forming & Demoulding Mechanisms
3.1 Forced Rotary Unscrewing
Most 24-cavity cap moulds use rack-and-pinion + planetary gear trains for positive thread stripping. A central drive shaft synchronizes all 24 thread cores to rotate counter-clockwise during opening, matching unscrew speed precisely (±0.5 rpm) to prevent thread scraping or stretching. Critical racks use quenched Cr12MoV steel, ground and phosphated for reduced friction, maintaining meshing backlash within tolerance for 300k+ cycles.
3.2 Dual-Blade Tamper-Evident Ring Cutting
Breakaway bridges (0.18–0.22 mm) require precise in-mould cutting. A floating ring in the upper mould applies 200–400 N localized force at final closing, creating a scissor-like action between blade and anvil for clean breaks without burrs. Blade entry angle set at 72° reduces stress concentration and extends tool life.
4. Cooling Efficiency & Micro-Channel Enhancement
High cavity density intensifies thermal load; cooling is often the bottleneck. A hybrid approach combines laminar slit channels (2 × 3 mm flat passages around cavities) and fountain tubes (Φ8 mm directed at thread cores), increasing Reynolds number >8000 (turbulent flow) to boost heat exchange by 30%. Seal surface temperature variation is strictly controlled (ΔT ≤2°C) to prevent ovality defects affecting airtight closure.
5. Smart Monitoring & Predictive Maintenance
5.1 In-Mould Torque Sensing & Closed-Loop Adjustment
Micro thin-film sensors embedded in thread core ends monitor real-time stripping torque waveforms. If abnormal peaks indicate sticking or seizure, the system triggers localized nozzle heating or spray adjustment to prevent cascading jams.
5.2 Modular Quick-Change Components
Tamper blades, thread cores, and bushings are grouped into plug-in modules with O-ring locating and quick-release pins, allowing per-cavity service in <3 minutes. Wear-compensation shims accommodate cumulative wear up to 0.08 mm, restoring zero clearance without full refurbishment.
6. Sustainability & Economics
While initial investment exceeds 16-cavity moulds, unit cost per cap drops significantly: tests on 160–220 t machines show 17% lower energy per piece vs. 12-cavity setups at 99.9% yield. Designed for 5 million cycles, nitrided 718H steel is recommended; tungsten carbide sleeves protect hot-runner tips against glass-filled material abrasion. As rPET/rPP usage rises, reinforced parting line seals and wear plates extend mean-time-between-failures past 500k cycles.
