Introduction to Snap-Top Cap Mold: A Paradigm of Precision Design and Manufacturing
In the modern packaging industry, snap-top caps have become a mainstream choice across various sectors due to their convenient opening mechanism and reliable sealing performance. The production of this intricate component relies heavily on a core piece of process equipment—the snap-top cap mold. It is not merely a tool for injection molding but a comprehensive engineering achievement that integrates complex functional design, precision machining, and stringent process control.
I. The Complexity of Functional and Structural Design
The primary objective of mold design is to accurately transform a three-dimensional concept involving dynamic moving parts into manufacturable metal cavities.
1. Integrated Functional Design
The mold must form a complete cap—including the cap body, hinge, inner seal (plug), and locking features—in a single injection cycle. The design of the integral living hinge presents the core challenge: designers must plan for a thin film section, only 0.2 to 0.4 mm thick, within a space of millimeters. This area requires sufficient melt flow and favorable molecular orientation to withstand tens of thousands of flex cycles during use. Consequently, the gate location, runner path, and cooling layout for the hinge area require special consideration.
2. Breakdown of Molding Structure

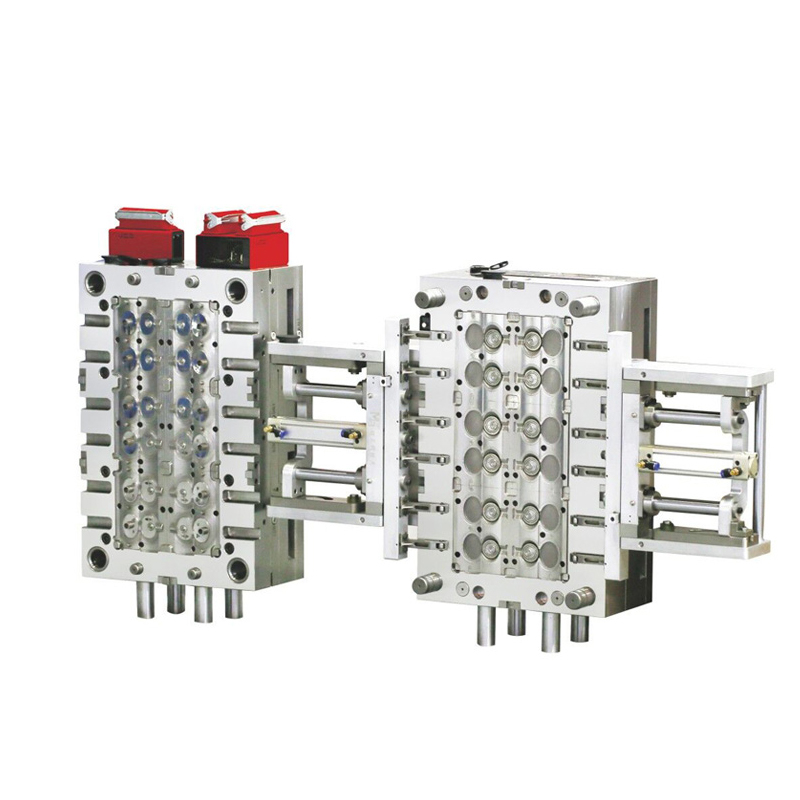

A typical mold comprises hundreds of components. Its core molding structure includes:
Cavity and Core: Forms the cap's external surface and internal shape. Materials often chosen are high-polish, high-wear-resistant mold steels such as S136 or NAK80.
Sliders and Lifters: Handle undercut features on the cap's sides, such as locking lugs, ensuring successful part ejection.
Hinge-Forming Components: Usually consist of highly precise inserts or specially designed cavity sections. Their machining accuracy directly determines the hinge's thickness uniformity and service life.
3. Balanced Gating System Design
Modern multi-cavity molds widely employ hot runner systems. Designers must ensure balanced flow paths from the main manifold to each cavity, aiming for all cavities to fill simultaneously under similar pressure and temperature conditions. The use of valve gates allows for sequential control of filling for each cavity. This helps position weld lines in non-critical areas or improves filling quality in the hinge region.
4. The Art of Cooling System Layout
The goal of cooling system design is to achieve uniform and rapid plastic solidification. Water channels are meticulously arranged within the cavity, core, and sliders, striving to maintain an equidistant relationship with the part geometry. This avoids part warpage or dimensional instability caused by uneven cooling. The thin-walled hinge area often requires an independent cooling circuit for precise temperature control.
5. Ejection and Venting Design
The ejection system must comprehensively consider part geometry and material properties. Deep cap cavities often employ a "stripper plate as primary, supplemented by ejector pins and air assistance" approach to achieve smooth, distortion-free part release. Venting is accomplished via micro-channels, only 0.01-0.03 mm deep, machined at parting lines, ejector pins, and insert fits. This ensures air trapped in the cavity can escape, preventing short shots or burn marks on the part.
II. Precision Requirements in Manufacturing
Excellent design must be translated into physical form through equally excellent manufacturing processes. Mold manufacturing represents the culmination of modern precision machining technologies.
1. Precision Machining of Core Components
Cavity and Core Machining: Primarily relies on High-Speed CNC Milling, using small-diameter ball-nose end mills for finishing 3D contoured surfaces to achieve smoothness. Subsequent Electrical Discharge Machining (EDM) is used to create sharp corners, fine textures, or machine hardened material areas.
Hinge Area Treatment: Inserts or cavity surfaces in this area demand extremely high surface finish (mirror finish) and dimensional consistency. This typically requires precision grinding and manual polishing to eliminate any micro-defects that could hinder plastic flow or create stress concentration points.
Plate and Structural Component Machining: The flatness of large mold plates and the positional accuracy of holes are foundational for smooth mold operation, ensured by large gantry mills and precision jig boring machines.
2. Standardization and Interchangeability Management
A multi-cavity mold contains numerous identical or similar components, such as ejector pins, inserts, and screws. Through standardized design and manufacturing, these parts achieve complete interchangeability, greatly simplifying later-stage maintenance, repair, and spare parts management. High-precision wire EDM and grinding are crucial for ensuring this interchangeability.
3. Assembly and Tryout
Mold assembly is a systems engineering task of integrating hundreds of precision components into a cohesive unit. Assemblers must ensure:
Parallelism between mold plates and uniform clamping force distribution.
Smooth, non-binding movement of sliders, lifters, and other mechanisms.
Correct, leak-free connections for cooling lines and hot runner electrical circuits.
After assembly, mold tryout is conducted on an injection molding machine. Actual molded parts are used to validate the mold design's soundness. Based on tryout results, fine adjustments are made to the mold, such as modifying gate sizes, optimizing cooling, or correcting local dimensions, until qualified parts are consistently produced.
III. Synergy Between Materials and Processes
Mold performance also depends on material selection and subsequent treatments:
Mold Steel Selection: Steel is chosen based on production volume, plastic type (e.g., corrosive or not), and may undergo vacuum heat treatment to enhance overall hardness and toughness.
Surface Treatments: Critical components receive surface coatings like chrome plating or titanium nitride to increase wear resistance, corrosion resistance, and reduce ejection force.
Hot Runner System Integration: Purchased standardized hot runner components (e.g., manifolds, nozzles) are assembled with high precision into the in-house machined mold plates, incorporating thermal insulation design to concentrate heat in the runners without affecting overall mold temperature.
IV. Core Methods of Engineering Verification
Engineering verification runs throughout the entire mold manufacturing cycle:
Design Verification: Mold flow analysis software simulates plastic filling, packing, and cooling during the drawing stage, predicting potential defects and optimizing the design.
Machining Verification: Coordinate Measuring Machines inspect the dimensions of finished core components against design drawings.
Functional Verification: During tryout, key part metrics—dimensions, weight, sealing force, opening force, hinge cycle life—are systematically measured to ensure the mold produces parts meeting all design requirements.
Conclusion
The design and manufacturing of a snap-top cap mold is a rigorous process deeply integrating functional requirements, material properties, machining capabilities, and cost control. From the initial concept drawing to the stable production of millions of consistent caps on an injection molding machine, each step embodies the experience, expertise, and relentless pursuit of precision by design engineers and manufacturing technicians. It is not only a tool for product realization but also the bridge and cornerstone that reliably transforms creative ideas into tangible products in modern industrial design.
