Key Design Points for Turnover Box and Plastic Basket Molds

I. Foreword: Why are Turnover Box Molds Harder to Design than Ordinary Plastic Molds?

1.1 Characteristics of Turnover Box Moldings

Turnover boxes are common industrial moldings with distinct characteristics. Their large surface area results in long melt flow distances and significant pressure loss, often leading to short shots. While thin-wall designs reduce weight and cost, they increase injection difficulty due to high flow resistance, causing defects like insufficient filling and sink marks. Furthermore, boxes feature numerous hollow-out sections and dense ribs, increasing mold complexity and the risk of stress concentration during injection. High dimensional accuracy is also required; any minor error can render the product unusable. These combined traits make mold design significantly more challenging than for ordinary plastic molds.

1.2 Core Customer Pain Points

For customers, the primary concerns are deformation and warpage. Deformation prevents proper stacking, wasting space during transport and storage. Warpage can cause lids to fit poorly, compromising cargo protection. Sidewall bulging affects appearance, while flash (parting line burrs) poses safety risks to operators. Ejection scratches damage the surface and reduce service life, and unstable stacking creates safety hazards. These issues severely impact performance; thus, mold design must focus on fundamentally resolving these pain points to meet customer demands.

1.3 Standards of a Good Basket Mold Design

A good turnover box mold design is not just about producing a part, but about meeting high standards. Dimensional stability is key—products must be consistent to ensure perfect stacking without misalignment. Non-deformation is basic; optimizing wall thickness and rib structures ensures the box remains flat under various conditions. Impact resistance is also vital, ensuring the box withstands drops and collisions. Finally, mass production stability guarantees consistent quality over long runs and high volumes.

1.4 Application Scenarios

Turnover boxes have extremely wide applications. In logistics, they transport various goods securely. For storage, households and offices use them to organize items. Fruit and vegetable markets rely on them for shipping and display. The auto parts industry uses them for storing and transporting components. In warehousing, they maximize space utilization. Each scenario has specific performance requirements, which quality mold design must satisfy.

II. Core Design Points for Overall Mold Structure

2.1 Parting Line Design Principles

Parting line design is crucial. Large boxes typically use a flat parting line for structural simplicity and machining convenience. Anti-flash sealing must be implemented at corners and fillets to prevent burrs. Hollow ribs and mesh positions require precise sealing to prevent material leakage. For curved parting lines, extend the surface appropriately (generally 10–15mm) to create a sealing surface before transitioning to a flat stretch. If the cavity requires a textured finish, avoid extending the parting line to prevent texture overflow. Exhaust grooves should reserve only 2–3mm of sealing length, spaced 50–100mm apart, to ensure venting without flashing.

2.2 Mold Base and Steel Selection

Large frame molds endure high pressure, necessitating reinforcement. Adding support pillars and optimizing the mold base structure prevents deformation under long-term high pressure. Common steel pairings include high-hardness, wear-resistant steel for cavities (to withstand pressure and friction) and tougher steel for cores (to prevent cracking). Heat treatment processes (quenching, tempering) are vital to enhance steel performance. Mass production molds require premium steels for longevity, while prototype molds can use cost-effective options.

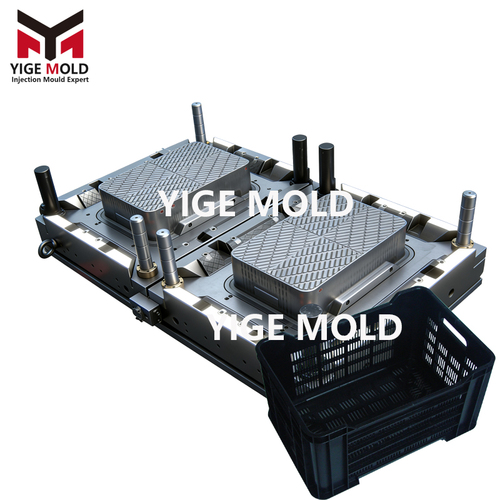

2.3 Cavity Layout Design

Due to their size and complexity, large turnover boxes are usually single-cavity to ensure dimensional accuracy and appearance. Small and medium baskets allow for multi-cavity layouts. A two-cavity (1x2) layout suits orders requiring high quality but lower volume. A four-cavity (1x4) layout offers high efficiency and lower unit costs for high-volume demands. Selection must balance capacity, machine tonnage, and cost to maximize economic benefits while ensuring quality.

III. Gating System Design (The Key to Success)

3.1 Comparison of Main Gating Methods

• Direct Gate (Sub-gate): Simple and low cost, but produces large sprue/runners, resulting in high waste and visible gate marks.




• Pin-point Gate (Three-plate mold): Offers flexible gate location with small gate vestiges, but involves complex structure and higher cost.




• Hot Runner System: No runners, saving material and shortening cycle time. Ideal for mass production, though it requires high investment, precise temperature control, and complex maintenance.




3.2 Multi-point Injection Design

For large boxes, multi-point gating solves filling issues. Multiple gates allow melt to inject simultaneously from different directions, shortening flow distance and reducing resistance. This balances filling and minimizes sink marks and flow lines. Gate quantity and location should be determined via Mold Flow Analysis (MFA), typically placing gates at corners, side walls, and large flat areas to ensure rapid, uniform cavity filling.

3.3 Gate Location Selection

Gate locations must avoid appearance surfaces (e.g., textured areas) to maintain aesthetics. They should also avoid load-bearing surfaces, as gates create internal stress. Ideally, gates should be near structural reinforcements (like ribs) to utilize their strength to counteract stress. Avoid placing gates on handles or locking tabs to ensure functionality.

3.4 Advantages of Hot Runner Molds

Hot runner molds offer significant advantages: No runners (material savings), faster cycles (reduced cooling time), and better melt control (stable dimensions). They are highly suitable for automation and large-scale production, drastically reducing per-unit costs.

3.5 Flow Balance Design for Thin-Walled Baskets

To prevent short shots or burn marks, flow balance is essential. The runner system must follow the "balanced flow" principle, ensuring equal flow distance and resistance from the sprue to each cavity. Use MFA to simulate flow and adjust runner sizes/gate locations. Increase gate size or add gates in thinner areas to boost flow speed, while controlling temperature and pressure to prevent burning.

IV. Cooling System Design (Core Solution for Deformation & Warpage)

4.1 Common Defects and Cooling Causes

Defects like sidewall bulging, flange flaring, and corner warpage are closely linked to uneven cooling. Uneven water lines cause temperature differences across the mold. Areas with higher temperatures cool slower, shrinking more, while cooler areas shrink less. This uneven shrinkage generates internal stress, causing deformation. Bulging often indicates insufficient cooling; flange flaring suggests heat accumulation; corner warpage points to poor local cooling. Over 90% of deformation stems from uneven cooling.

4.2 Dense and Balanced Water Line Layout

Adopt dense and balanced water lines. Increase line density to maximize contact between coolant and mold, improving heat exchange efficiency. Ensure uniform distribution—spacing and diameter must be calculated precisely to guarantee consistent cooling effects across the mold. Increase density on large flat surfaces and adjust line paths near ribs and corners.

4.3 Enhanced Cooling for Critical Areas

Ribs and corners are high-risk areas. Ribs accumulate heat; design dedicated water lines nearby or increase diameter/flow rate. Corners suffer from stress concentration; implement conformal cooling (e.g., baffles or bubblers) to ensure uniform temperature. Maintain proper distance from the cavity surface—too close causes defects, too far reduces efficiency. Optimize via simulation.

4.4 Water Line Layout Standards

Strict standards apply: Distance to cavity surface: 10–15mm. Spacing between lines: 30–50mm. Hole diameter: 8–12mm. Inlet/outlet layout follows "first-in, last-out" for even flow. Large molds require multiple inlets/outlets to maintain thermal stability.

4.5 Significance of Mold Temperature Balance

Balanced mold temperature ensures dimensional stability and stackability. Uniform cooling leads to consistent shrinkage, preventing size deviations. It minimizes deformation, allowing boxes to stack tightly, saving space, and enhancing safety. Balanced temperature also reduces internal stress, improving mechanical properties and extending product life.

V. Ejection System Design (Preventing Scratches, Blushing, and White Marks)

5.1 Ejection Challenges for Turnover Boxes

Thin walls and dense ribs make ejection difficult. Low strength increases susceptibility to scratches and damage. High draft resistance from ribs requires significant force, risking deformation, white marks (stress concentration), or cracking. These challenges demand careful design to avoid quality issues and production downtime.

5.2 Ejector Pin Layout

Layout must be dense and uniform. Increase pin count in complex areas (ribs, corners). Pins should be symmetrically placed near ribs and bosses, typically 1.5mm from edges. Avoid pins on steps or angled surfaces; place them on structurally sound areas. Uniform force distribution prevents localized damage.

5.3 Combined Ejection Design

For large boxes, combine ejector pins with stripper plates. Pins provide localized force on ribs/corners; the stripper plate offers overall support for smooth demolding. Calculate layouts precisely to ensure synchronized movement, maintaining shape integrity and improving quality/efficiency.

5.4 Draft Angle Optimization

Optimize draft angles to prevent inner wall scratches. Increase draft on internal structures, especially protrusions/recessions, to reduce friction. Balance draft angle with dimensional accuracy and strength requirements to ensure easy, safe demolding.

5.5 Guide Pillar and Bushing Reinforcement

Reinforce guide pillars/bushings to prevent eccentric ejection. Increase diameter/length for rigidity. Use high-precision fits to minimize play. Large molds require four-corner guides for full support, preventing tilt-induced deformation. Stable guidance ensures production consistency.

VI. Venting System Design (Solving Burning, Short Shots, and Flow Lines)

6.1 Air Trapping Issues

Complex structures (hollows, long flows) trap air. Compressed air heats up, burning the melt (black spots). Trapped air also blocks flow, causing short shots and structural weakness. Residual gas creates internal pressure, leading to instability and warpage. Effective venting is mandatory.

6.2 Vent Placement

Place vents along the parting line, at corners (prone to vortexes), and at rib ends (air traps). Special structures (mesh, bosses) need dedicated vents. Ensure all complex areas can expel air efficiently.

6.3 Vent Depth Control

Depth is critical: 0.02–0.05mm typically. Excess depth causes flash; insufficient depth hinders venting. Adjust based on material fluidity and wall thickness. Width must be adequate to release air without allowing material leakage.

6.4 Vent Optimization for High-Speed Injection

Increase vent quantity/density for high-speed molding. Consider vacuum venting systems to accelerate air removal. Use auxiliary vents (vent plugs/pins) at critical points. Adjust process parameters (speed/pressure) to complement venting design.

VII. Specialized Design for Anti-Deformation and Anti-Warpage

7.1 Wall Thickness Uniformity

Maintain uniform wall thickness. Avoid abrupt transitions; use smooth gradients. Use CAE analysis to simulate stress/deformation. Strengthen locally rather than thickening globally to maintain stability and precision.

7.2 Rib Structure Optimization

Rib thickness should not exceed 50–60% of the wall thickness to prevent sink marks. Optimize height, draft, root radius, and spacing. Align ribs with flow direction. Reinforce corners specifically to prevent warpage. Distribute ribs evenly with rounded transitions to reduce stress.

7.3 Pre-deformation Compensation

Use Mold Flow Analysis to predict deformation. Apply inverse geometry compensation (e.g., design a concave mold if the part is predicted to warp convex). Requires precise understanding of material behavior and process experience. Iterate simulations to achieve target dimensions.

7.4 System Synergy Optimization

Coordinate cooling, gating, and packing systems. Ensure uniform cooling, balanced filling, and stable packing pressure. Adjust cooling intensity and packing parameters based on product geometry to minimize deformation comprehensively.

7.5 Finished Product Performance Guarantee

Ensure stacking flatness and load-bearing uniformity. Optimize structure to guarantee tight contact between stacked boxes. Enhance strength via ribs and wall thickness distribution. Conduct strict QC to meet performance standards, ensuring reliability and customer satisfaction.

VIII. Common Functional Structure Design

8.1 Stacking and Undercut Design

Design interlocking features (male/female nests). For nesting stacks, ensure sufficient contact area. For folding stacks, design robust latches. Undercuts should be minimal (<3°) to ease ejection and avoid functional/appearance surfaces.

8.2 Handle and Slot Design

Handles require ergonomic width (80–120mm) and thickness (25–40mm). Reinforce internally to support 1.5x full load weight. Slots must match mating parts precisely with 0.5–1mm clearance for easy assembly/disassembly.

8.3 Anti-slip and Bottom Grid Design

Use high-friction textures (diamond/wave patterns, depth 0.3–0.5mm) oriented perpendicular to slide direction. Bottom grids aid drainage/ventilation; spacing depends on contents (small for produce, large for logistics). Grid thickness ~80% of wall thickness.

8.4 Lidded and Foldable Basket Mold Design

Lidded boxes require precise lid-body fit (snap-fit/hinge). Foldable baskets need robust hinge mechanisms with reinforced walls. Include positioning devices to ensure accurate folding/unfolding states.

IX. Pre-Production Drawing Optimization Advice

9.1 Avoiding Wall Thickness Issues

Avoid walls too thin to fill or too thick to cool. Set minimum thickness based on material flow. Increase thickness for large/complex boxes but maintain uniformity. Match mating surfaces for assembly stability.

9.2 Avoiding Draft Angle Issues

Add draft (≥0.5°) to all vertical surfaces. Increase draft for high-precision or textured surfaces. Larger shrinkage rates require more draft. Ensure sufficient draft on protrusions/recesses to prevent sticking.

9.3 Avoiding Rib Issues

Limit rib thickness to ≤50–60% of wall thickness. Use root radii to reduce sink marks. Prioritize more ribs over thicker ribs for aesthetics.

9.4 Avoiding Corner Issues

Replace sharp corners with radii (≥0.5x wall thickness). Larger radii reduce stress. If sharp corners are unavoidable, reinforce locally with ribs/thicker walls.

X. Conclusion Summary

Turnover box mold design faces numerous challenges: balancing filling for large thin-walled areas, ensuring cooling uniformity to prevent warpage, and guaranteeing dimensional stability for stacking. Mass production stability depends on material selection and process optimization. Success requires integrating parting line, gating, cooling, and ejection designs.
