Structural Optimization of Plastic Products: Intelligent Wall Thickness Reduction to Slash Injection Molding Costs at the Source

I. Introduction

1.1 Current Landscape of Injection Molding Production Costs

In today’s manufacturing sector, plastic products have become indispensable across numerous industries due to their exceptional performance and versatile applications. However, as the dominant production method, injection molding faces increasing scrutiny regarding cost efficiency.

From a raw material perspective, resin prices are highly volatile, influenced by market supply-demand dynamics and fluctuating oil prices. Any increase in material costs directly elevates production expenses. Beyond materials, equipment depreciation and energy consumption are significant factors—injection molding machines demand substantial electrical power, while mold fabrication and maintenance require considerable capital investment. Additionally, inherent scrap rates in production, stemming from process limitations, technical challenges, or operational errors, further inflate costs. Against the backdrop of rising labor expenses, these combined pressures result in high overall production costs, compelling manufacturers to seek strategic optimizations to maintain competitiveness.

1.2 Strategic Importance of Structural Optimization via Wall Thickness Reduction

Reducing wall thickness through intelligent structural design offers profound benefits for cost control.

From a financial standpoint, optimized thinning directly reduces material consumption, lowering raw material costs. Thinner walls also shorten cooling cycles, reducing overall cycle times and increasing output per hour—effectively cutting labor and equipment depreciation costs. Environmentally, using less plastic aligns with global sustainability initiatives, enhancing corporate social responsibility profiles. Furthermore, in an era dominated by lightweighting trends, thinner, lighter products reduce logistics costs and appeal more to eco-conscious consumers, opening new market opportunities. Critically, this process drives innovation in product design and manufacturing techniques, strengthening technical capabilities and securing long-term competitive advantages.

II. Principles of Plastic Wall Thickness Design

2.1 Meeting Functional Requirements

The primary objective of wall thickness design is ensuring the product fulfills its intended function. Different applications impose varying demands on strength and rigidity. For instance, structural components often endure significant external forces or pressure, necessitating sufficient wall thickness to prevent deformation or failure. Similarly, load-bearing elements—such as support ribs in appliance housings—require adequate thickness to ensure stability and safety. Poorly designed wall thickness can lead to functional failures in real-world use, compromising user experience and damaging brand reputation.

2.2 Considering Molding Process Constraints

Injection molding imposes strict requirements on wall thickness uniformity. Excessive thickness leads to slow internal cooling relative to the surface, generating internal stresses that cause sink marks and warpage. Conversely, walls that are too thin increase melt flow resistance, risking short shots and incomplete filling. Optimal design requires balancing injection pressure, speed, mold temperature, and cooling time to ensure uniform cavity filling and stable solidification. This prevents common defects while maintaining quality and production efficiency.

2.3 Ensuring Surface Quality

Wall thickness consistency is crucial for aesthetic integrity. Non-uniform walls cause differential cooling rates, resulting in sink marks, voids, or surface imperfections. Extreme thickness variations may also produce flow lines or haze, degrading visual appeal. Designers must prioritize gradual transitions, avoiding abrupt changes, while accounting for material flow characteristics and shrinkage rates. Proper thickness selection ensures smooth, flawless surfaces that enhance perceived quality and marketability.

III. Practical Methods for Effective Wall Thickness Reduction

3.1 Localized Thinning

Strategically reducing thickness in non-critical areas—such as internal corners, non-contact surfaces, or low-stress zones—minimizes material usage without compromising performance. This requires deep understanding of load distribution and operational contexts. Advanced simulation software enables virtual validation of thinned structures, ensuring compliance with functional requirements while shortening cycle times and reducing costs.

3.2 Rib Design Integration

Ribs serve as structural “skeletons,” compensating for reduced wall thickness by enhancing stiffness and load-bearing capacity. Effective rib implementation considers geometry, stress orientation, and material properties. Linear, curvilinear, or grid patterns aligned with principal force vectors maximize reinforcement. Rib height and thickness must harmonize with adjacent walls to prevent cosmetic defects like sink marks. Well-engineered ribs maintain structural integrity while enabling significant weight and cost savings.

3.3 Optimizing Radii Transitions

Replacing sharp corners with generous radii mitigates stress concentration—a common failure point under mechanical loads. While larger radii improve stress distribution, they also increase tooling complexity and cost. Designers must strike a balance between structural reliability and manufacturability. Optimized fillets permit safer wall thinning, reduce material consumption, and extend product lifespan while improving aesthetics.

IV. Case Studies in Wall Thickness Optimization

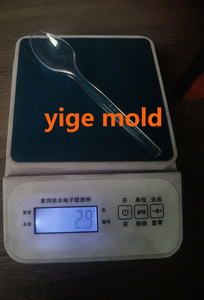

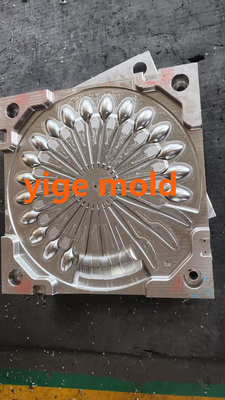

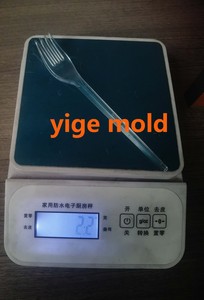

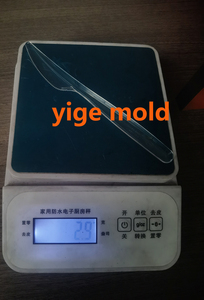

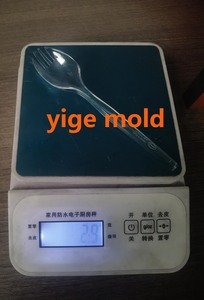

Case Study 1: Cutlery Molds

Yige Molds successfully reduced cutlery weight to under 3 grams per piece through targeted optimization. Traditional designs favored thicker walls (1.2 mm) for durability, leading to excess material usage. By analyzing stress patterns, Yige thinned low-impact zones—such as the back of handles—to 0.8 mm. Simultaneously, micro-ribs (0.6 mm height) were added to high-stress areas like tines and bowl sections. Fillets (0.3 mm radius) replaced sharp edges to disperse stress. These modifications preserved functionality and appearance while significantly cutting material costs and enhancing market competitiveness.

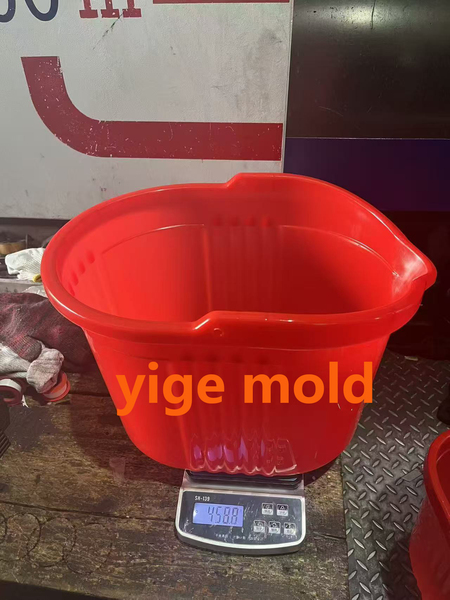

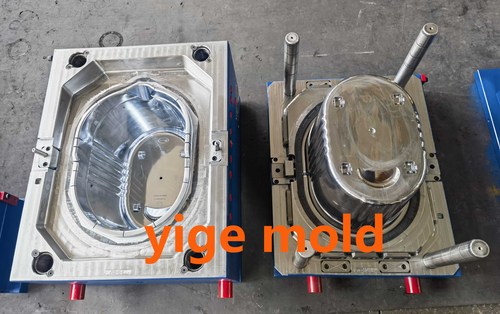

Case Study 2: Mop Bucket Body Molds

Yige achieved a wall thickness breakthrough in mop buckets, reducing sidewalls from 2.0 mm to 1.5 mm without sacrificing durability. Research revealed that bases and peripheral walls bear the brunt of handling forces. A grid of reinforcing ribs (20 mm spacing, 1.0 mm height) was integrated into the base, matching wall thickness to avoid sink marks. Internal micro-bosses stiffened sidewalls, while a 5.0 mm radius fillet at the base-wall junction ensured uniform stress distribution. The optimized design lowered material consumption, improved logistics efficiency, and strengthened commercial viability.

V. Critical Considerations During Thickness Reduction

5.1 Defect Prevention

Sink marks and warpage remain primary risks when thinning walls. Differential cooling induces internal stresses that distort geometries. Mitigation strategies include:

• Maintaining uniform wall sections with gradual transitions




• Utilizing mold flow simulation to predict and address problem areas




• Optimizing cooling channel layouts for balanced thermal management




• Selecting low-shrinkage materials where feasible




• Fine-tuning process parameters (pressure, temperature, speed)




5.2 Mold Adaptation

Thinner parts demand corresponding mold adjustments:

• Feed Systems: Runner dimensions may require downsizing to accommodate altered flow dynamics




• Cooling Circuits: Waterline placement and diameter must be recalculated to ensure uniform heat extraction




• Tooling Accuracy: Cavity/core precision must align with tighter wall tolerances to guarantee dimensional stability and surface finish




Only through comprehensive mold redesign can thin-walled production achieve consistent quality and efficiency.

VI. Conclusion

6.1 The Core of Plastic Cost Control

True cost leadership stems not from negotiating lower piece prices, but from proactive wall thickness optimization during the design phase. Once implemented, these improvements deliver permanent savings through reduced material usage, faster cycles, and lower overheads. Beyond immediate financial gains, lightweighting supports sustainability goals and meets evolving consumer preferences. For manufacturers, mastering structural optimization represents a foundational strategy for enduring profitability and market leadership.
