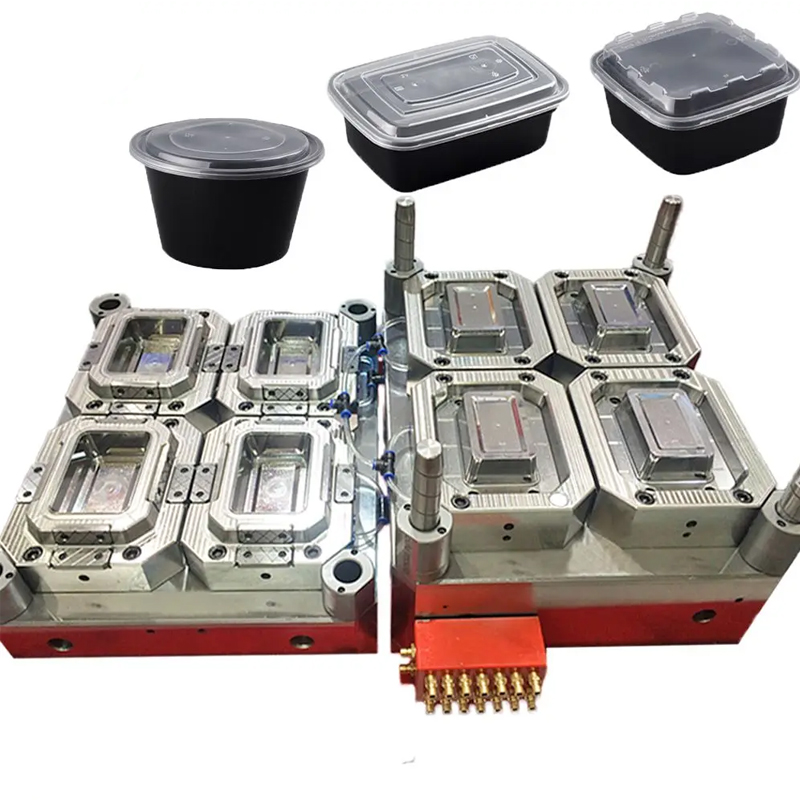

Injection Molds for Takeout Containers: An In-Depth Analysis of Precision Manufacturing and Core Processes
Chapter 1: The Essential Characteristics of Injection Molds
1.1 The Specificity of the Injection Molding Process
Injection molds, as one of the most precise production tools in the plastic processing field, are fundamentally designed to inject molten plastic under high pressure into a closed mold cavity, where it cools and solidifies into a product of predetermined shape. Compared to processes like compression molding or thermoforming, injection molding offers distinct technical advantages. This process enables the precise molding of complex three-dimensional structures, especially for takeout containers featuring intricate details such as clasps, hinges, and reinforcing ribs. For such applications, injection molding is often the only method that guarantees dimensional stability and functional reliability.
Regarding wall thickness control, the injection molding process demonstrates exceptional precision. Mold design allows for differentiated wall thickness distributions tailored to the functional requirements of different parts of the product. For instance, wall thickness can be increased at the container rim and clasp areas to enhance structural strength, while material usage can be reduced in non-load-bearing areas. This precise control capability allows injection-molded takeout containers to achieve optimal material configuration while ensuring performance.
Dimensional stability is another notable feature of the injection molding process. As the plastic cools and solidifies within a sealed cavity, shrinkage behavior is relatively uniform and controllable. By accurately calculating the material shrinkage rate and compensating for it during the mold design stage, high consistency in product dimensions across mass production can be ensured. This consistency is crucial for the sealability of takeout containers, as the precise fit between the container body and lid directly determines leak prevention.
1.2 Process Assurance of Surface Quality
Injection molds can produce products with very high surface quality. Through precision machining and polishing of the mold cavity, product surfaces ranging from high-gloss mirror finishes to various textured effects can be achieved. This surface treatment not only affects the product's visual quality but also influences the user experience. For example, appropriate surface texturing can enhance grip and prevent slipping.
The mold's temperature control system is decisive for product surface quality. Precise mold temperature control can prevent defects such as flow marks or weld lines on the product surface. Particularly for transparent or light-colored materials, uniform cooling is essential for achieving a perfect surface finish. Modern injection molds employ multi-circuit independent temperature control systems, allowing for differentiated temperature management based on the cooling needs of different zones.
Chapter 2: Mold System Architecture and Design Principles
2.1 Precision Construction of the Molding System
The core of an injection mold is the molding system, which includes the cavity, core, and related moving components. For thin-walled products like takeout containers, the design of the molding system requires special consideration of melt flow balance. In multi-cavity molds, the flow path to each cavity must be essentially identical to ensure consistent shrinkage and dimensions across all cavities.
The design of the runner system directly impacts production efficiency and product quality. The application of hot runner systems has become standard in modern takeout container molds. They eliminate waste generated by traditional cold runners while improving production efficiency. The nozzle layout of a hot runner system requires careful calculation to ensure the melt rapidly and uniformly fills the entire cavity. Especially for rectangular containers with high length-to-width ratios, rational gate location and number are key to avoiding warpage defects.
The design of the venting system, though often overlooked, is crucial. During high-speed injection, if air within the cavity is not expelled promptly, it can cause defects like burn marks or short shots. During mold design, precise venting grooves must be incorporated at locations such as the parting line and insert mating surfaces. Groove depth is typically controlled between 0.01-0.03 mm, balancing the need for gas escape with preventing plastic flash.
2.2 Innovative Design of Ejection Systems
Demolding thin-walled takeout containers presents a technical challenge. As the product cools and shrinks, it tightly conforms to the core, making traditional ejection methods prone to causing deformation or even breakage. Modern molds employ combined ejection systems integrating various methods, including ejector pins, pneumatic-assisted ejection, and robotic part removal.
Pneumatic-assisted ejection systems incorporate air channels at specific locations. At the moment of mold opening, compressed air is injected between the product and the mold, creating an air cushion that reduces ejection resistance. This non-contact ejection method is particularly suitable for large, flat surfaces or deep-draw products, effectively preventing defects like ejection pin marks or deformation.
For products with undercuts or special features, the mold requires side-core pulling mechanisms. These moving components must operate with precise timing during mold opening and closing. The guiding accuracy and wear resistance of sliding components, lifters, etc., directly affect mold lifespan and product quality.
Chapter 3: Mold Manufacturing Processes and Precision Control
3.1 Engineering Considerations in Material Selection
Mold material selection involves weighing multiple factors. Mold steel must possess sufficient hardness for wear resistance, good thermal conductivity for rapid and uniform cooling, and excellent polishability for high-quality product surfaces. For medium-volume products like takeout containers, pre-hardened mold steels like P20 or 718 are common choices, offering hardness around HRC 30-35 as-supplied and allowing for direct machining.
For more demanding applications, steels capable of achieving higher hardness after heat treatment, such as H13 or S136, are selected. After proper heat treatment, these steels can reach hardness levels of HRC 48-52, offering better wear and corrosion resistance, but with increased processing difficulty and cost. The selection balances cost, lifespan, and product requirements.
Beyond the base material, surface treatment technologies play a significant role. Applying hard coatings like titanium nitride or diamond-like carbon (DLC) through PVD or CVD processes can significantly increase surface hardness and wear resistance while reducing the coefficient of friction and improving release properties. Coating selection must consider the plastic material characteristics, as some plastic additives may react with specific coatings.
3.2 Precision Machining Technology Systems
Mold machining accuracy directly impacts final product quality and consistency. Modern mold manufacturing employs a multi-process precision machining system. The rough machining stage primarily removes bulk material, where efficiency is key. Semi-finishing begins controlling dimensions and shapes of critical areas. Finishing pursues the final accuracy and surface finish of key features.
Electrical Discharge Machining (EDM) plays a specialized role in mold making. For deep grooves, sharp corners, micro-textures, or other features difficult for CNC milling, EDM is often the only option. Precision EDM can control discharge energy to achieve micron-level accuracy and surface roughness as low as Ra 0.1 µm. Wire-cut EDM (particularly slow wire) is used for high-precision through-holes and profiles, especially for precise components like sliders and inserts.
The development of High-Speed Machining (HSM) has greatly improved the quality and efficiency of machining mold surfaces. Using small-diameter tools with high-speed spindles enables precision machining of fine contours, reducing subsequent polishing work. The widespread use of 5-axis machining centers makes it possible to complete complex surfaces in a single setup, avoiding error accumulation from multiple setups.
3.3 Complete System of Inspection and Verification
Each stage of mold manufacturing requires corresponding inspection methods to ensure quality. Traditional tools like calipers, micrometers, and height gauges are still used for dimensional checks, but more automated, digital inspection equipment is becoming mainstream.
Coordinate Measuring Machines (CMMs) can rapidly and accurately measure the spatial coordinates of complex surfaces. Comparison with CAD models provides visual maps of machining errors. Surface roughness testers quantitatively assess mold surface finish to ensure polishing requirements are met. For high-precision mating features, specialized equipment like air gauges or optical comparators offer higher measurement accuracy.
Trial molding (or sampling) is the final verification step in mold making. Actual injection production tests the rationality of the mold design, manufacturing accuracy, and product performance. The trial process requires systematic adjustment of process parameters, recording the optimal processing window, and establishing parameter baselines for subsequent mass production. Professional trial analysis can identify potential issues, guiding final mold modifications and optimization.
Chapter 4: Engineering of Cooling Systems
4.1 Optimized Design of Cooling Circuits
The cooling system is one of the most critical yet often underestimated parts of an injection mold. Its efficiency directly determines the production cycle and product quality. Cooling system design must consider various engineering factors, including mold structure, product shape, and material properties.
The layout of cooling channels should follow the principle of equidistance, meaning the distance from the channel to the cavity surface should be as uniform as possible. For flat products like takeout containers,串联式 (series-connected) cooling circuits are typically used, allowing coolant to flow through the entire cavity area. Channel diameter selection balances flow rate and pressure drop, with main lines often 10-12 mm and internal branches 6-8 mm in diameter.
For localized thick sections or areas difficult to cool, specialized cooling solutions are required. For example, in areas with concentrated ribs, bubbler or baffle cooling can be designed, using high-speed water flow to directly impact hot spots, improving cooling efficiency. Manufacturing these special cooling structures often requires a combination of drilling, milling, and insert techniques.
4.2 Precise Management of Temperature Control
Mold temperature affects not only cooling time but also the product's dimensional accuracy and internal quality. Different plastic materials have different requirements: crystalline materials like PP often require higher mold temperatures to ensure proper crystallinity, while amorphous materials like PS can be processed at lower temperatures.
Multi-zone independent temperature control is standard for modern, high-end molds. Dividing the mold into several independently controlled zones, each with its own sensor and control loop, allows for more precise temperature management. For large molds or elongated products, different areas may require different temperature settings to minimize warpage caused by uneven cooling.
The performance of mold temperature controllers (also called chillers or temperators) also significantly impacts temperature stability. Modern units use PID control algorithms with efficient heating and cooling systems, capable of maintaining mold temperature within ±0.5°C. Some high-precision applications demand control within ±0.1°C, requiring high coordination between the equipment, mold, and process parameters.
Chapter 5: Mold Structure and Functional Integration
5.1 Precision Coordination of Moving Mechanisms
Many takeout container designs include moving parts, such as foldable lids or detachable dividers. These functions require moving mechanisms within the mold, including sliders, lifters, and hydraulic cylinders. These components must operate with precise timing during mold opening and closing.
Slider mechanisms handle undercuts perpendicular to the mold opening direction. Slider movement is typically driven by angled leader pins ("angle pins"). The pin angle determines the slider's speed and force characteristics. Too steep an angle increases opening force; too shallow increases travel distance. The design requires careful calculation based on undercut depth and location.
Lifter mechanisms handle internal undercuts, combining ejection and lateral movement functions. The lifter angle is paramount, generally controlled between 5-15 degrees. Too steep an angle increases ejection resistance, potentially deforming the part; too shallow requires greater ejection stroke, possibly limited by mold space. The fit clearance between the lifter and mold must be precisely controlled for smooth movement while preventing plastic flash.
5.2 Innovative Design of Demolding Systems
Demolding takeout containers requires special consideration due to their large, flat, thin-walled nature, which makes them susceptible to deformation during ejection. Traditional ejector pin ejection creates localized stress at the pin locations, potentially causing "pin push" marks, warpage, or even breakage.
To address this, various innovative demolding methods have been developed. Pneumatic ejection uses compressed air to form a cushion between the part and mold, allowing for gentle part release from the core. It is particularly suitable for deep-draw products or those with high surface finish requirements. Robotic part removal employs custom grippers to directly extract the part after mold opening, avoiding deformation risks associated with the ejection process.
For products with special structures, secondary ejection or delayed ejection mechanisms may be needed. Secondary ejection partially releases the part from the core first before completing ejection, reducing resistance. Delayed ejection uses mechanical or hydraulic controls to sequence the action of different ejectors, ensuring smooth part release.
Chapter 6: Mold Maintenance and Lifecycle Management
6.1 Preventive Maintenance Systems
Long-term, stable mold operation requires systematic maintenance. Preventive maintenance includes regular inspections, cleaning, and lubrication, aiming to identify potential issues early and avoid unexpected failures during production. Maintenance intervals are determined based on factors like mold usage frequency and production material characteristics.
Routine maintenance primarily involves lubricating moving parts, checking cooling circuits, and cleaning venting grooves. Lubrication point selection and lubricant choice must consider operating temperatures and loads; high-temperature areas may require high-temperature grease, and high-load components may need anti-wear (EP) lubricants.
Periodic maintenance involves more comprehensive inspection and servicing. This includes disassembling major moving components to check for wear, measuring dimensional changes of key features, and assessing the condition of seals. Through periodic maintenance, the remaining life of components can be predicted, spare parts prepared in advance, and unplanned downtime minimized.
6.2 Repair Techniques and Life Extension
Wear and damage are inevitable during mold use. Proper repair can extend mold life and reduce production costs. Common repair techniques include welding, brush plating, and laser cladding, chosen based on the type of damage.
For minor surface wear or scratches, polishing may suffice. Gradually using finer abrasives removes the damaged layer and restores surface finish. For localized deeper damage, welding repair followed by machining and polishing may be necessary. The welding filler material must match the base material, and the heat-affected zone must be controlled to avoid new distortion or cracks.
For high-wear areas, surface enhancement techniques can be considered. For example, nitriding the surface of ejector pins or sliders increases surface hardness and wear resistance. For cavity surfaces, PVD coating can deposit hard ceramic layers, significantly improving wear resistance and release properties.
Chapter 7: Trends in Technological Development
7.1 Mold Design for High Production Efficiency
Continuous improvement in mold design focuses on enhancing production efficiency. By optimizing cooling systems, reducing mold opening/closing strokes, and shortening ejection times, the molding cycle is constantly reduced. For high-volume products like takeout containers, saving even 0.5 seconds per cycle can yield significant economic benefits over long production runs.
Stack mold technology elevates production efficiency to a new level. Stack molds arrange two or more layers of cavities within the same mold opening stroke, producing double or multiple products per injection shot. Although the mold structure is more complex and manufacturing costs are higher, the productivity gain for mass production can quickly offset the additional mold investment.
7.2 Adaptability to New Materials
The continuous emergence of new plastic materials presents new demands for molds. High-flow materials allow for smaller gates and lower injection pressures but may require faster injection speeds. Filled materials, like glass-fiber-reinforced plastics, demand higher wear resistance from the mold, potentially requiring higher hardness steels or surface coatings.
Bio-based and biodegradable plastics often have different processing characteristics than traditional petroleum-based plastics, typically with narrower processing windows and different shrinkage behavior. Mold design must account for these differences, such as adjusting gate sizes, optimizing cooling layout, or modifying shrinkage factors. Steel selection must also consider the potential corrosiveness of some bio-based materials.
7.3 Evolution of Precision Manufacturing Technologies
Mold manufacturing technology is advancing towards higher precision and efficiency. The普及 of 5-axis machining centers enables more accurate and efficient machining of complex surfaces, completing multiple sides in one setup to reduce error accumulation. Micro-milling technology allows for precision machining of smaller features, meeting the needs of detailed product design.
Additive Manufacturing (AM) is gradually expanding its application in mold making. 3D printing can create conformal cooling channels that follow the cavity surface contour—a design difficult or impossible with traditional methods. This can significantly improve cooling efficiency and reduce cooling time. Metal 3D printing can also produce mold components with complex internal structures, such as porous structures for gas-assisted molding.
Advances in inspection technology provide more tools for mold quality control. 3D scanning can quickly capture complete point cloud data of mold surfaces for comparative analysis with CAD models, comprehensively assessing manufacturing accuracy. Industrial Computed Tomography (CT) can even detect internal defects like blocked cooling channels or material porosity.
Mold manufacturing is a specialized field integrating knowledge from materials science, mechanical engineering, thermodynamics, and more. As a prime example, the technical level of injection molds for takeout containers directly impacts product quality, production efficiency, and manufacturing cost. From design and manufacturing to maintenance, each stage requires professional knowledge and extensive experience. As technology progresses, molds will continue evolving towards higher precision, greater efficiency, and longer lifespans, providing a solid technical foundation for manufacturing.
