Optimization Scheme for Runners and Gates in Thin-Walled Part Molds

I. Introduction

1. Industry Pain Points

In the plastics industry, the production of thin-walled plastic parts (thickness 0.3mm–1.2mm) faces numerous challenges. Defects such as short shots, flow marks, flash, warpage, and stress whitening are widespread. Critically, 90% of these issues do not stem from improper machine parameter settings but are caused by irrational runner layouts and incorrect gate selection or positioning. This makes product quality difficult to guarantee, severely impacts production efficiency, and leads to significant cost and resource waste for enterprises.

2. Industry Status Quo

Currently, the design of runners and gates for thin-walled molds often suffers from the practice of copying parameters used for thick-walled parts. Due to the unique nature of thin-walled parts, the melt cools too rapidly during flow, resulting in enormous flow resistance. To ensure filling, injection speed and pressure must be increased, which accelerates mold wear and can lead to defects like flash. This vicious cycle traps thin-walled production in a dilemma, making efficient and stable manufacturing difficult to achieve.

3. Core Focus of This Article

Addressing the challenges of thin-walled injection molding, this article starts with the flow characteristics of thin-walled parts and deeply analyzes the pros and cons of mainstream runner and gate designs. Combining the features of different products, specific optimization schemes are proposed. Effective corrective measures are provided for common defects, alongside a summary of design pitfalls to avoid. The aim is to provide readers with a comprehensive, systematic solution to help enterprises resolve various thin-walled molding problems in one go, thereby enhancing product quality and production efficiency.

II. Difficulties in Thin-Walled Injection Molding

1. Definition of Thin-Walled Parts

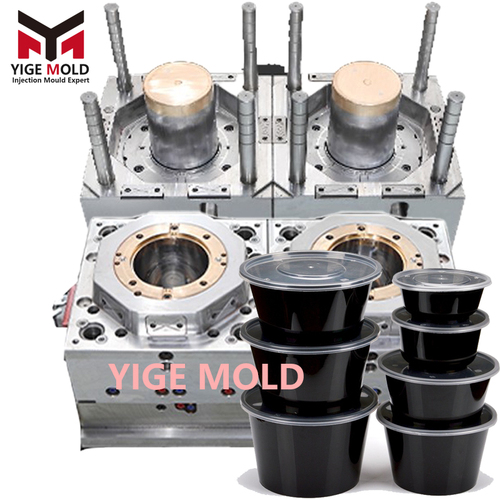

Thin-walled parts refer to plastic products with a wall thickness less than or equal to 1.2 mm. These are extremely common in daily life: mobile phone housings rely on thinness for aesthetics and feel; ultra-thin covers protect electronic screens; battery cases require strength while minimizing weight; thin packaging shells offer exquisite presentation; and medical device components demand precision and ease of use due to their thin-walled nature.

2. Core Pain Points in Molding

During thin-walled injection molding, the melt cools rapidly upon contacting the mold cavity, causing a sharp drop in fluidity. Due to the minimal wall thickness and excessive flow length-to-thickness ratio (L/T ratio), the melt encounters massive resistance, easily leading to incomplete filling. Packing and compensation are also extremely difficult; insufficient packing causes sink marks, while excessive packing can induce high internal stress, leading to stress whitening and warpage. These interconnected issues pose significant challenges, making the process difficult to control and quality hard to guarantee.

3. Core Role of Runners and Gates

Runners and gates play a vital role in thin-walled molding. Runners are responsible for rapidly transporting high-temperature melt from the nozzle to the gate, reducing flow resistance. Gates control the volume and direction of the melt entering the cavity, ensuring balanced filling, minimizing shear stress, and guaranteeing part integrity. Rational design solves short shots, flow lines, and sink marks at the source, improving quality and production efficiency while ensuring dimensional stability.

4. Core Conclusion

The essence of thin-walled mold design lies in shortening the flow length, reducing pressure loss, and improving injection efficiency. Shortening the flow path minimizes temperature and pressure drop. Reducing pressure loss ensures sufficient injection pressure. Improving efficiency shortens cycle times. Only by focusing on these three points can high-performance thin-walled molds be developed to produce high-quality, high-precision parts.

III. What Defects Do Runner & Gate Design Flaws Cause?

3.1 Defects Caused by Irrational Runner Design

Poor runner design leads to multiple issues:

  • Undersized Runners: Increase pressure loss. The melt cools prematurely due to slow flow, leading to short shots in distal areas and incomplete parts.


  • Oversized Runners: Increase material waste and cycle time due to longer cooling. They can also induce residual internal stress, affecting dimensional stability.


  • Asymmetric Layout: Causes unbalanced filling in multi-cavity molds, resulting in inconsistent part weights and obvious dimensional deviations.


  • Sharp Corners: Create turbulence and sudden pressure drops, resulting in visible flow marks on the surface.


3.2 Defects Caused by Gate Selection/Position Errors

Gate design is crucial for thin-walled parts:

  • Gate Cross-section Too Small: Slows down filling speed, leading to incomplete filling, especially in thin areas.


  • Gate Located in Weak Areas: High-pressure melt impact can break through weak walls, causing holes or flash.


  • Gate Too Far from Distal Ends: Increases flow length, causing excessive temperature and pressure loss, resulting in short shots.


  • Insufficient Number of Gates: Leads to excessive flow length and uneven stress distribution, causing overall warpage and poor dimensional accuracy.


IV. Comparison of Common Runner Types for Thin-Walled Parts + Optimization Parameters

Runner Type

Characteristics

Optimization Points

Applicable Scenarios

Round Runner (Highly Recommended)

Lowest flow resistance, minimal heat loss.

Coarsen main sprue; Increase branch diameter (Std φ6 → Thin-wall φ8-φ10).

Most ultra-thin precision parts (Phone housings, covers).

Trapezoidal Runner

Easy to process and eject.

Increase depth to reduce sidewall friction.

Mass-produced general thin-walled goods (Packaging).

Semicircular Runner

High resistance; Not recommended for main runners.

N/A

Only usable as minor sub-runners for local filling assistance.

4. Runner Layout Optimization Guidelines

  1. Symmetry First: Prioritize symmetrical layouts to ensure balanced filling and avoid inconsistent shot sizes.


  2. No Sharp Corners: All corners must have smooth R-angle transitions; right-angle turns are prohibited to reduce pressure loss.


  3. Minimize Total Length: Reduce total runner length to shorten melt travel time and reduce temperature loss.


V. 5 Major Types of Gates for Thin-Walled Parts + Precision Optimization

5.1 Gate Selection and Optimization

Gate Type

Adaptation Scenario

Optimization Dimensions

Side Gate

Ultra-thin flat panels.

Widen gate width, reduce gate thickness to increase volume and aid automatic degating.

Pinpoint Gate

Multi-cavity small parts.

Moderately enlarge gate diameter to prevent premature freezing.

Submarine (Tunnel) Gate

Appearance-critical parts (no witness marks).

Increase injection angle to reduce resistance; do not locate in the thinnest section.

Fan Gate

Recommended for thin-walls. Large area covers/panels.

Spreads melt evenly without spray or jetting.

Direct Hot Gate

High-volume, high-precision parts.

No cold slug; maximizes packing effect to solve sink marks.

5.2 Four Golden Rules for Thin-Walled Gate Design

  1. Locate in Thick Areas: Place gates in thicker sections to avoid direct impact on thin walls, stabilizing flow and reducing deformation.


  2. Control Flow Length: Keep the L/T ratio within a reasonable range to minimize pressure and temperature loss.


  3. Multi-Gate Balance: Use multiple gates to reduce single-gate pressure, ensuring uniform flow and reducing internal stress.


  4. Avoid Critical Surfaces: Position gates away from functional load-bearing surfaces and visible appearance surfaces.


VI. Remedial Solutions for Mass-Produced Molds (No Structural Changes)

1. Remedy for Undersized Runners

  • Increase Melt & Mold Temperature: Enhances melt fluidity and reduces heat loss.


  • Segmented Injection Speed: Use high speed in the initial filling stage to push the melt into the cavity before pressure drops too low.


2. Remedy for Undersized Gates

  • Extend Holding Pressure Time: Allows more material to pack the cavity and compensate for shrinkage, but avoid excessively long times to prevent high stress.


3. Remedy for Unbalanced Runners

  • Injection Speed Profiling: Adjust speed segments to compensate for pressure differences. Use faster speeds for long runners and slower speeds for short ones to balance filling.


4. Important Warning

Process adjustments offer limited effectiveness for ultra-thin parts. If wall thickness is extreme and precision is high, relying solely on process tuning cannot fix fundamental design flaws. Optimization must occur at the design stage.

VII. Summary

7.1 Key Factors in Thin-Walled Injection Molding

In thin-walled molding, runner and gate design account for 70% of success, while injection molding process accounts for 30%. Rational design can directly reduce the defect rate by over 80%, shorten cycles, and reduce waste. yige mold specializes in ultra-thin precision injection mold R&D and offers free upfront Moldflow analysis to simulate filling status, optimize runner and gate schemes, and provide one-stop solutions for all thin-walled molding challenges.
